Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Nickel |
| Shape | 90-Degree |
| Style | 90-Degree, Standard Pressure |
| Pressure Rating | 4000 |
| Fitting Style | Standard |
| Seal Material | Aflas (AL) |
| Series | SS90 MORFS X MORFS |
| Country of Manufacture | United States |
| Length | 5.6 |
| Side 1 Gender | Male |
| Side 1 Size | -24 |
| Side 1 Type | ORFS |
| Side 2 Gender | Male |
| Side 2 Size | -24 |
| Side 2 Type | ORFS |
Description

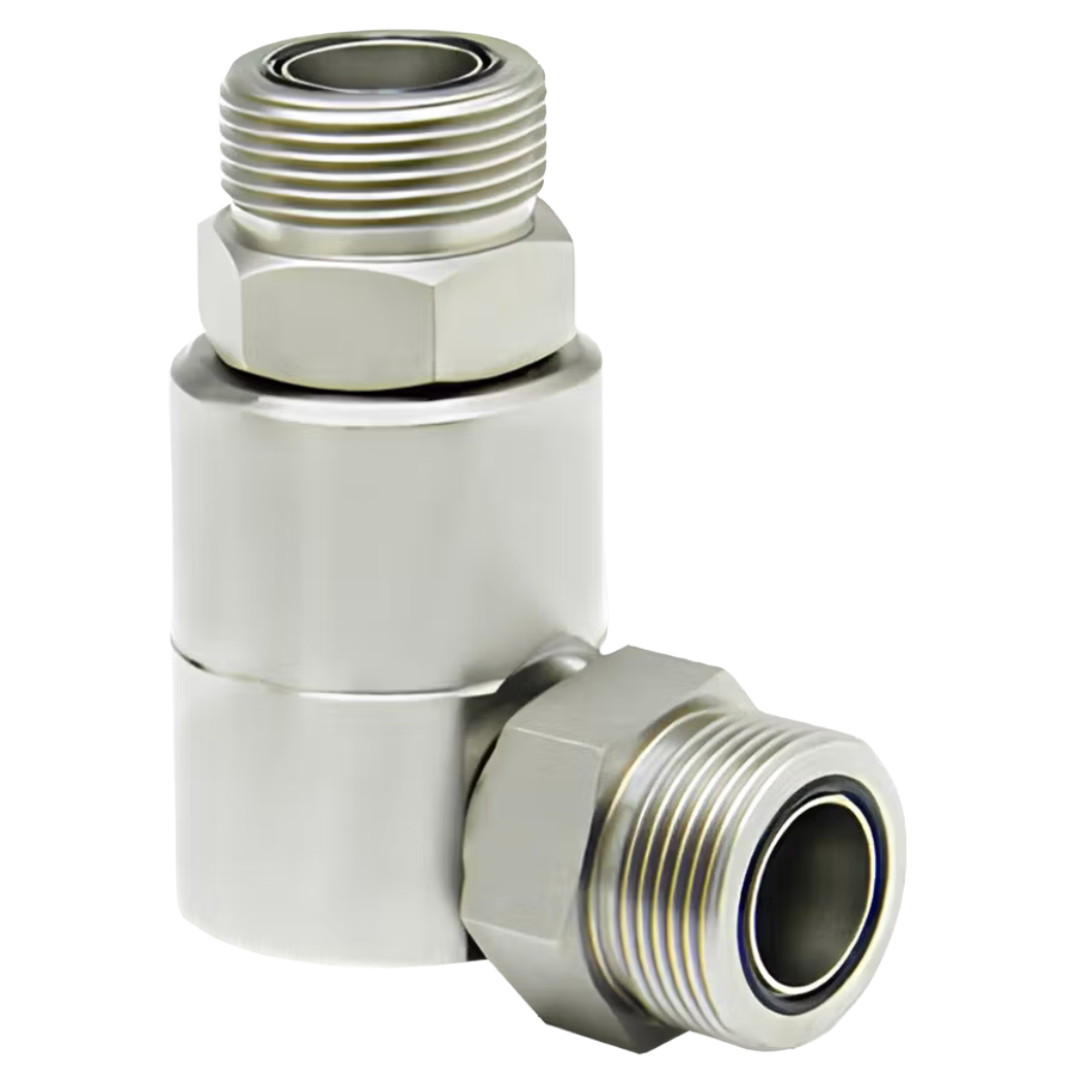

Super Swivels 90-Degree Standard Pressure Male Face Seal (MFS) x Male Face Seal (MFS) hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. Also known as male O-ring face seal or ORFS connections, the two MFS ports provide reliable, leak-resistant sealing in high-pressure hydraulic systems. The full-flow design reduces hose-line complexity and bend radius, allowing hoses to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize internal seal wear and leakage, and the male face seal configuration connects directly to compatible female ORFS hose ends without additional adapters. Available in face seal sizes from -4 through -24, these hydraulic swivel fittings have maximum working pressures from 4,000 to 5,000 PSI, depending on size.
Warning: Select the correct swivel size and seal material for the system fluid, temperature, operating pressure, and application. Never exceed the maximum pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Do not apply pipe-thread sealant or sealing tape to either face seal connection. Verify that all sealing faces and O-rings are clean, undamaged, properly seated, and compatible with the hydraulic fluid. Avoid overtightening and replace any swivel that is worn, damaged, or leaking.
