Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Nickel |
| Shape | 90-Degree |
| Style | 90-Degree, Standard Pressure |
| Pressure Rating | 3500 |
| Fitting Style | Standard |
| Seal Material | Aflas (AL) |
| Series | SS90 FNPT X MJIC |
| Country of Manufacture | United States |
| Length | 5.16 |
| Side 1 Gender | Male |
| Side 1 Size | -24 |
| Side 1 Type | JIC |
| Side 2 Gender | Female |
| Side 2 Size | -24 |
| Side 2 Type | NPTF |
Description

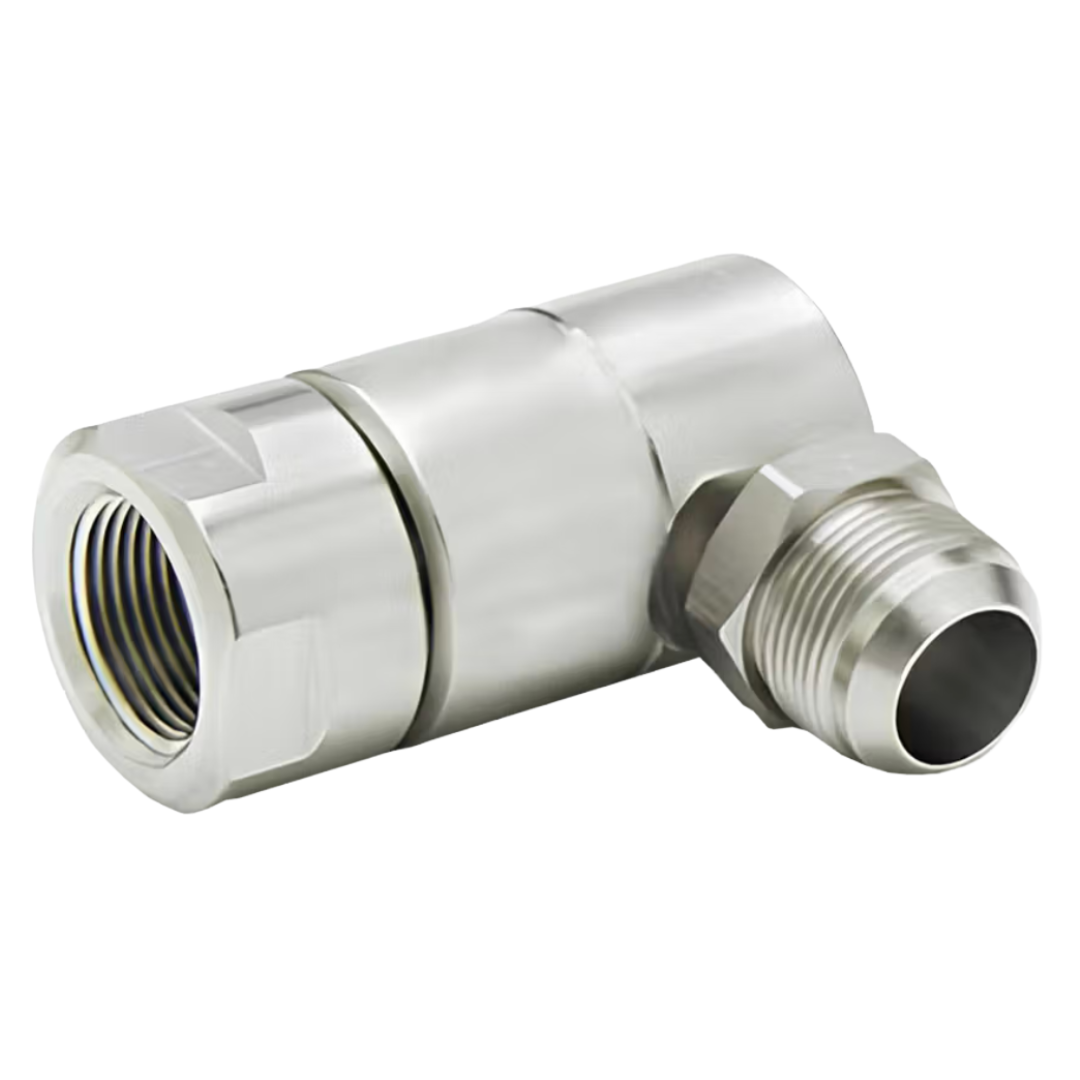

Super Swivels 90-Degree Standard Pressure Female Pipe (NPTF) x Male JIC hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. The male JIC connection uses a 37-degree flare for a reliable metal-to-metal hydraulic seal, while the full-flow swivel design reduces hose-line complexity and bend radius. This allows hoses and piping to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize seal wear and leakage, and the NPTF-to-Male JIC configuration connects directly to compatible hydraulic lines without additional adapters. Available configurations include 1/4" through 1-1/2" NPTF ports with JIC sizes from -4 through -24 and a maximum working pressure of 3,500 PSI.
Warning: Select the correct swivel size and seal material for the system fluid, temperature, pressure, and application. Never exceed the maximum working pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Apply compatible hydraulic thread sealant only to the NPTF connection. Do not apply pipe-thread sealant to the male JIC connection, which seals at the 37-degree flare. Keep the flare surfaces clean and undamaged, avoid overtightening, and replace any swivel that is worn, damaged, or leaking.
