Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Zinc |
| Shape | 90-Degree |
| Style | 90-Degree, Standard Pressure |
| Pressure Rating | 4000 |
| Fitting Style | Standard |
| Seal Material | Viton Extreme (ETP) |
| Series | SS90 MJIC X MORFS |
| Country of Manufacture | United States |
| Length | 4.68 |
| Side 1 Gender | Male |
| Side 1 Size | -20 |
| Side 1 Type | ORFS |
| Side 2 Gender | Male |
| Side 2 Size | -20 |
| Side 2 Type | JIC |
Description

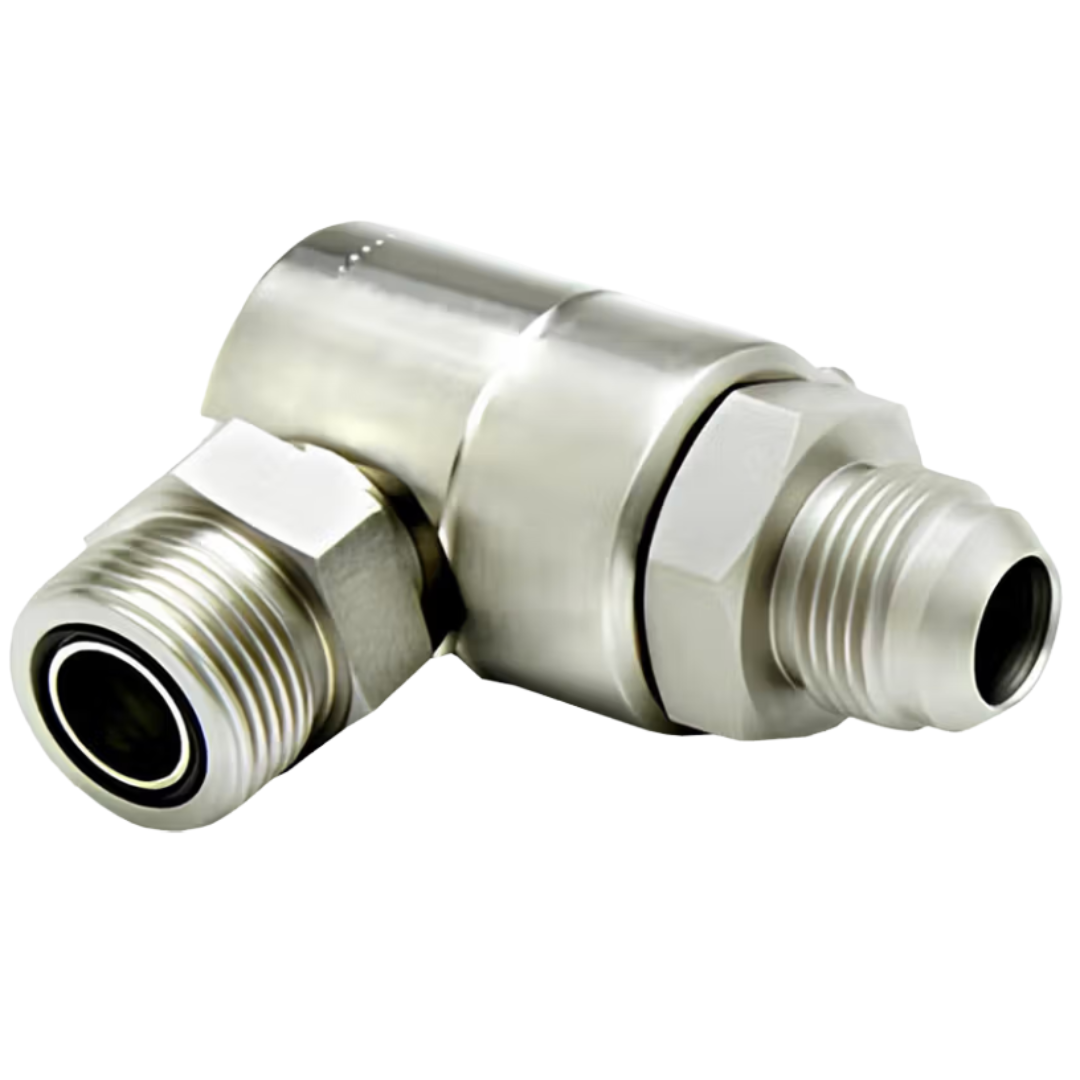

Super Swivels 90-Degree Standard Pressure Male JIC x Male Face Seal (MFS) hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. The male JIC connection uses a 37-degree flare for a dependable metal-to-metal seal, while the male O-ring face seal—also called an ORFS connection—provides reliable, leak-resistant sealing in high-pressure hydraulic systems. The full-flow design reduces hose-line complexity and bend radius, allowing hoses and piping to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize internal seal wear and leakage, and the JIC-to-MFS configuration connects directly to compatible hydraulic lines without additional adapters. Available in matching and reducing configurations from -4 through -24, these hydraulic swivel fittings have maximum working pressures from 4,000 to 5,000 PSI, depending on size.
Warning: Select the correct swivel size and seal material for the system fluid, temperature, operating pressure, and application. Never exceed the maximum pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Do not apply pipe-thread sealant or sealing tape to either connection. Keep the JIC flare and face-seal surfaces clean and undamaged, and verify that the face-seal O-ring is properly seated and compatible with the hydraulic fluid. Avoid overtightening and replace any swivel that is worn, damaged, or leaking.
