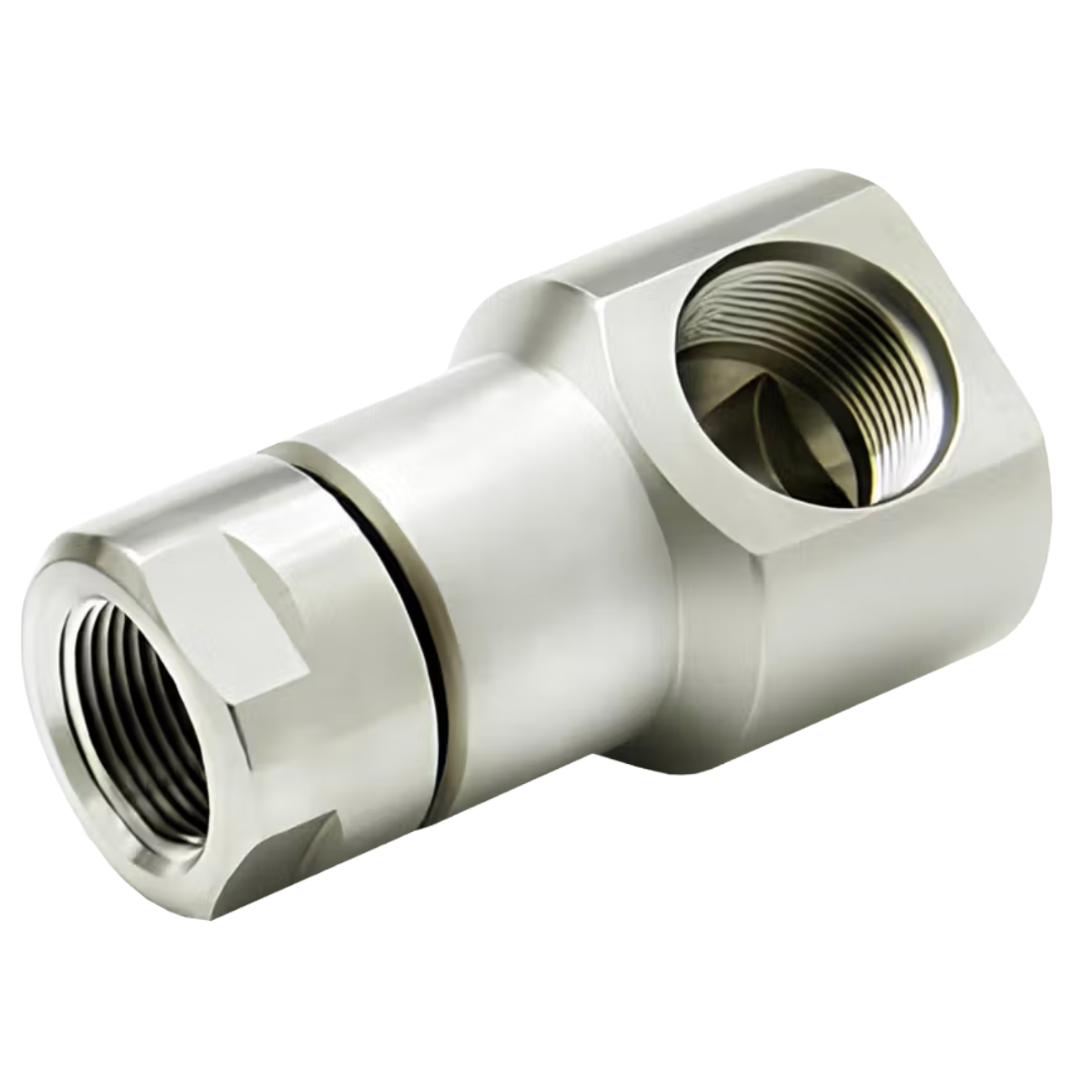

9SS20FP125XFO20-Z-V : Super Swivels 90-Degree Live Swivel, -20 Female ORB (1-5/8 - 12 UN) x -20 Female NPTF (1 1/4 - 11 1/2 NPTF), 4000psi, Zinc Plated, Viton Seals

Super Swivels 90-Degree Standard Pressure Female Pipe (NPTF) x Female O-Ring Boss (ORB) hydraulic swivels provide continuous, free rotation on one axis while creating a compact right-angle connection. The full-flow design reduces hose-line complexity, minimizes friction and bend radius, and helps prevent hose twisting, kinking, shock damage, and premature failure. A durable ball-bearing race supports heavy side loads to reduce seal wear and leakage, while the NPTF-to-ORB configuration connects directly to compatible hydraulic hoses and components without additional adapters. Available configurations are rated for maximum working pressures from 4,000 to 5,000 PSI, depending on size, with zinc or nickel plating and multiple seal options.

Warning: Select the swivel size, seal material, and pressure rating for the system fluid, temperature, operating pressure, and application. Never exceed the maximum pressure rating listed for the specific part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Apply compatible thread sealant only to the NPTF connection—ORB threads seal with an O-ring and should not receive pipe-thread sealant. Inspect the swivel and O-ring regularly, and replace damaged, worn, or leaking components before operation.
