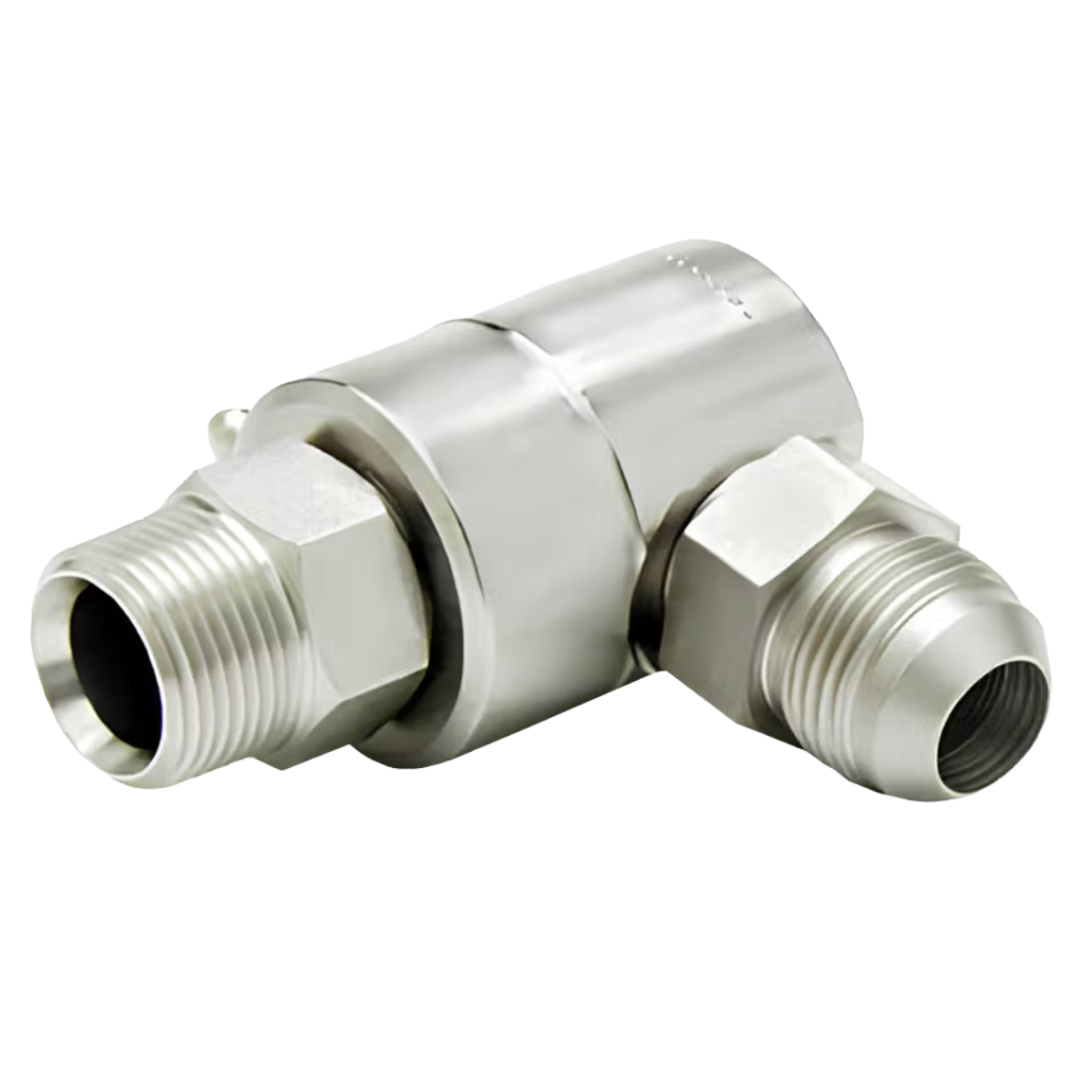

9SS16MP100XMJ16-Z-V : Super Swivels 90-Degree Live Swivel, -16 Male JIC (1-5/16 - 12 UN) x -16 Male NPTF (1 - 11 1/2 NPTF), 3500psi, Zinc Plated, Viton Seals

Super Swivels 90-Degree Standard Pressure Female Pipe (NPTF) x Male JIC hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. The female NPTF port connects directly to a compatible male pipe fitting, while the male JIC connection uses a 37-degree flare for a dependable metal-to-metal hydraulic seal. The full-flow design reduces hose-line complexity and bend radius, allowing hoses and piping to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize internal seal wear and leakage, while the NPTF-to-JIC configuration eliminates the need for a separate adapter. Available configurations include female NPTF sizes from 1/4" through 1-1/2" and male JIC sizes from -4 through -24, with a maximum working pressure of 3,500 PSI.

Warning: Select the correct swivel size and seal material for the system fluid, temperature, operating pressure, and application. Never exceed the maximum working pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Apply compatible hydraulic thread sealant only to the female NPTF connection. Do not apply pipe-thread sealant or sealing tape to the male JIC connection, which seals at the 37-degree flare. Keep the flare surfaces clean and undamaged, avoid overtightening, and replace any swivel that is worn, damaged, or leaking.
