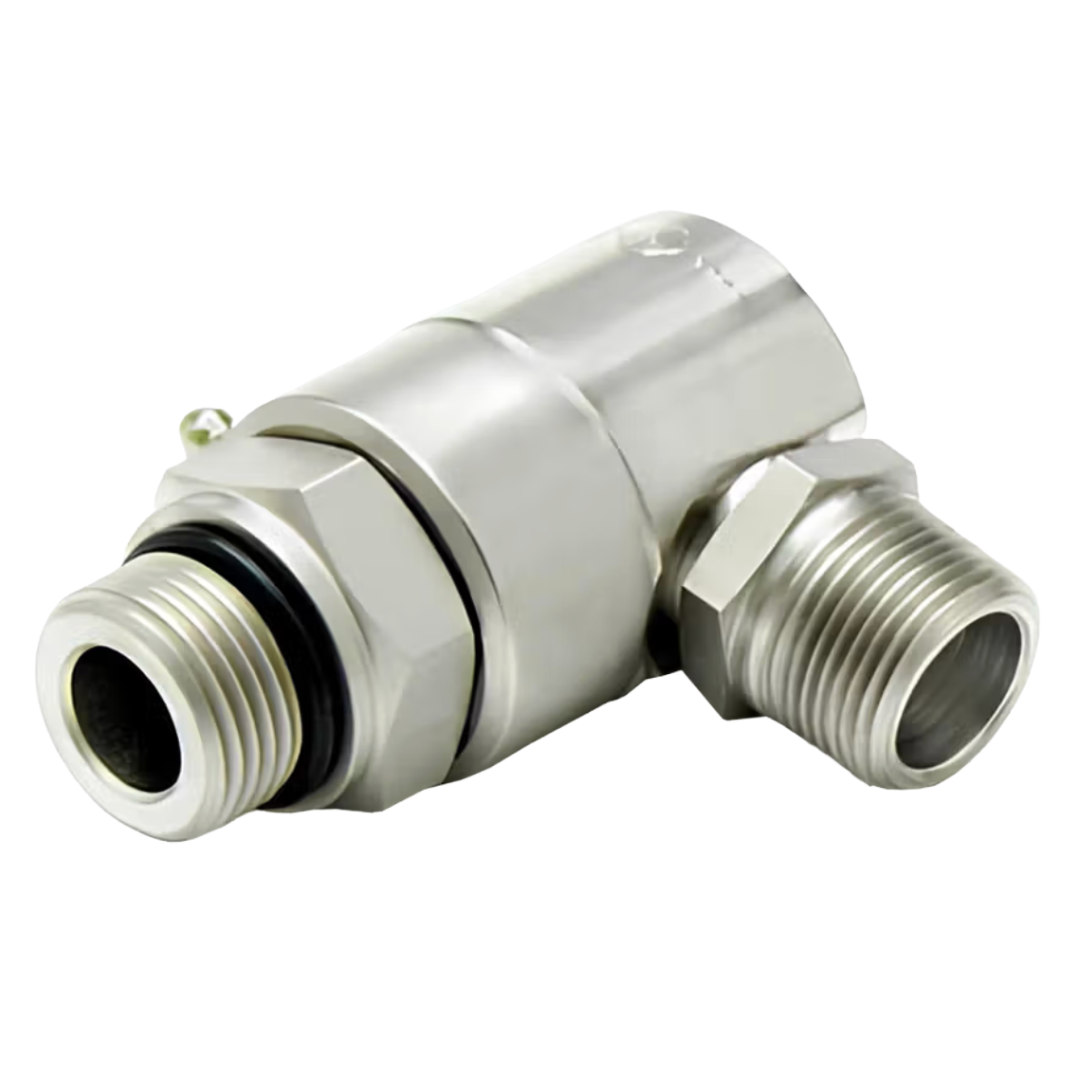

9SS16MO16XMP100-Ni-AL : Super Swivels 90-Degree Live Swivel, -16 Male NPTF (1 - 11-1/2 NPTF) x -16 Male ORB (1-5/16 - 12 UN), 3500psi, Nickel Plated, Aflas (AL) Seals

Super Swivels 90-Degree Standard Pressure Male O-Ring Boss (ORB) x Male Pipe (NPTF) hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. The male SAE straight-thread ORB connection uses an O-ring for dependable, leak-resistant sealing, while the male NPTF connection installs directly into a compatible female pipe port. The full-flow design reduces hose-line complexity and bend radius, allowing hoses and piping to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize internal seal wear and leakage, while the ORB-to-NPTF configuration eliminates the need for a separate adapter. Available configurations include male ORB sizes from -4 through -24 and male NPTF sizes from 1/4" through 1-1/2", with a maximum working pressure of 3,500 PSI.

Warning: Select the correct swivel size and seal material for the system fluid, temperature, operating pressure, and application. Never exceed the maximum working pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Apply compatible hydraulic thread sealant only to the male NPTF connection, keeping excess sealant away from the fluid passage. Do not apply pipe-thread sealant or sealing tape to the male ORB connection; its O-ring creates the seal. Verify that the O-ring and sealing surfaces are clean, undamaged, properly seated, and compatible with the hydraulic fluid. Avoid overtightening and replace any swivel that is worn, damaged, or leaking.
