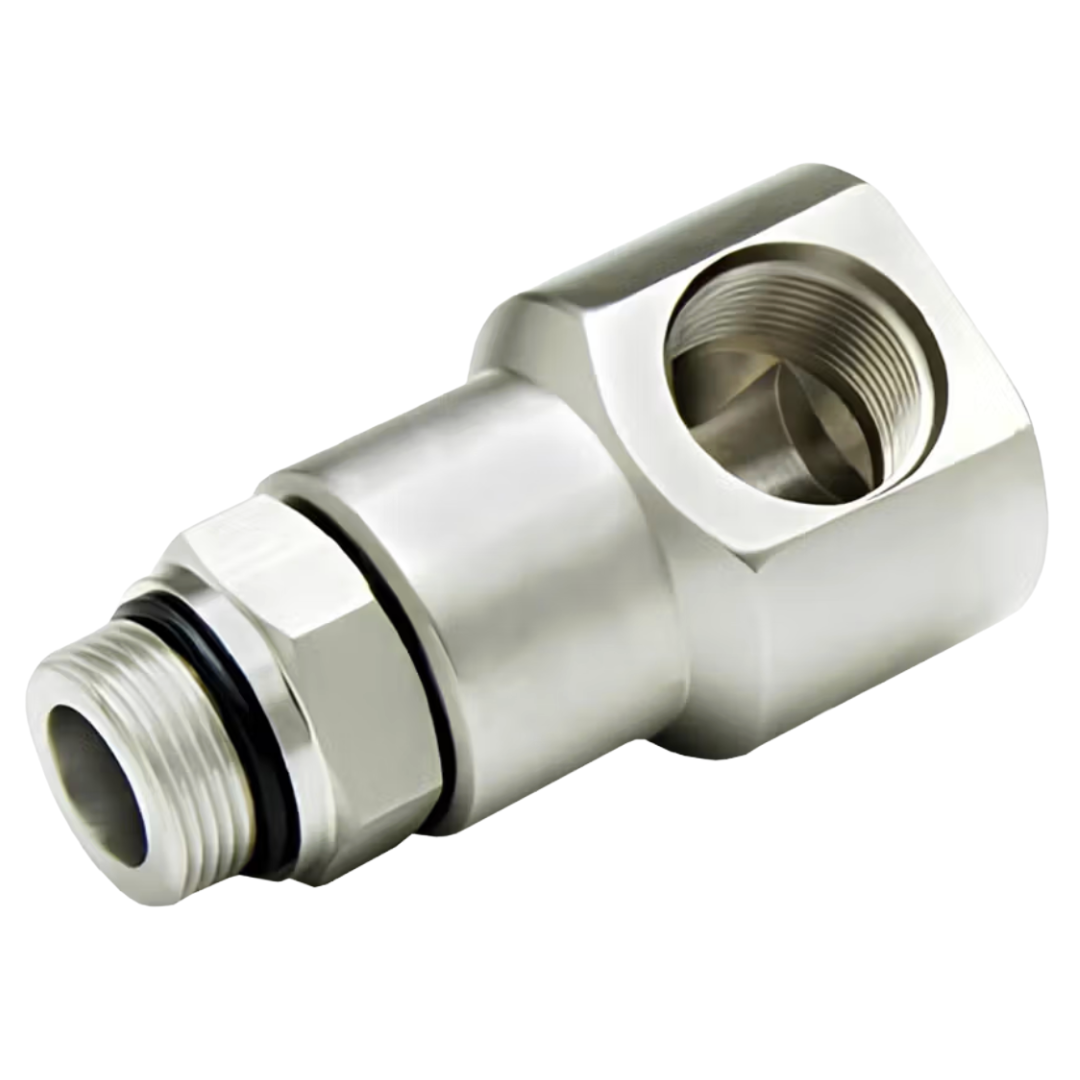

9SS16MO16XFP100-Z-V : Super Swivels 90-Degree Live Swivel, -16 Female NPTF (1 - 11-1/2 NPTF) x -16 Male ORB (1-5/16 - 12 UN), 4000psi, Zinc Plated, Viton Seals

Super Swivels 90-Degree Standard Pressure Male O-Ring Boss (ORB) x Female Pipe (NPTF) hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. The male SAE straight-thread ORB connection uses an O-ring for dependable, leak-resistant sealing, while the female NPTF port connects directly to a compatible male pipe fitting. The full-flow design reduces hose-line complexity and bend radius, allowing hoses and piping to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize internal seal wear and leakage, while the ORB-to-NPTF configuration eliminates the need for a separate adapter. Available configurations include male ORB sizes from -4 through -24 and female NPTF ports from 1/4" through 1-1/2", with maximum working pressures from 4,000 to 5,000 PSI depending on size.

Warning: Select the correct swivel size and seal material for the system fluid, temperature, operating pressure, and application. Never exceed the maximum pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Apply compatible hydraulic thread sealant only to the female NPTF connection. Do not apply pipe-thread sealant or sealing tape to the male ORB connection; its O-ring creates the seal. Verify that the O-ring and sealing surfaces are clean, undamaged, properly seated, and compatible with the hydraulic fluid. Avoid overtightening and replace any swivel that is worn, damaged, or leaking.
