Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Zinc |
| Shape | 90-Degree |
| Style | 90-Degree, Standard Pressure |
| Pressure Rating | 4000 |
| Fitting Style | Bulkhead |
| Seal Material | Viton Extreme (ETP) |
| Series | SS90 MORFS X MORFS BULKHEAD |
| Country of Manufacture | United States |
| Length | 5.0 |
| Side 1 Gender | Male |
| Side 1 Size | -16 |
| Side 1 Type | ORFS |
| Side 2 Gender | Male |
| Side 2 Size | -16 |
| Side 2 Type | ORFS |
Description

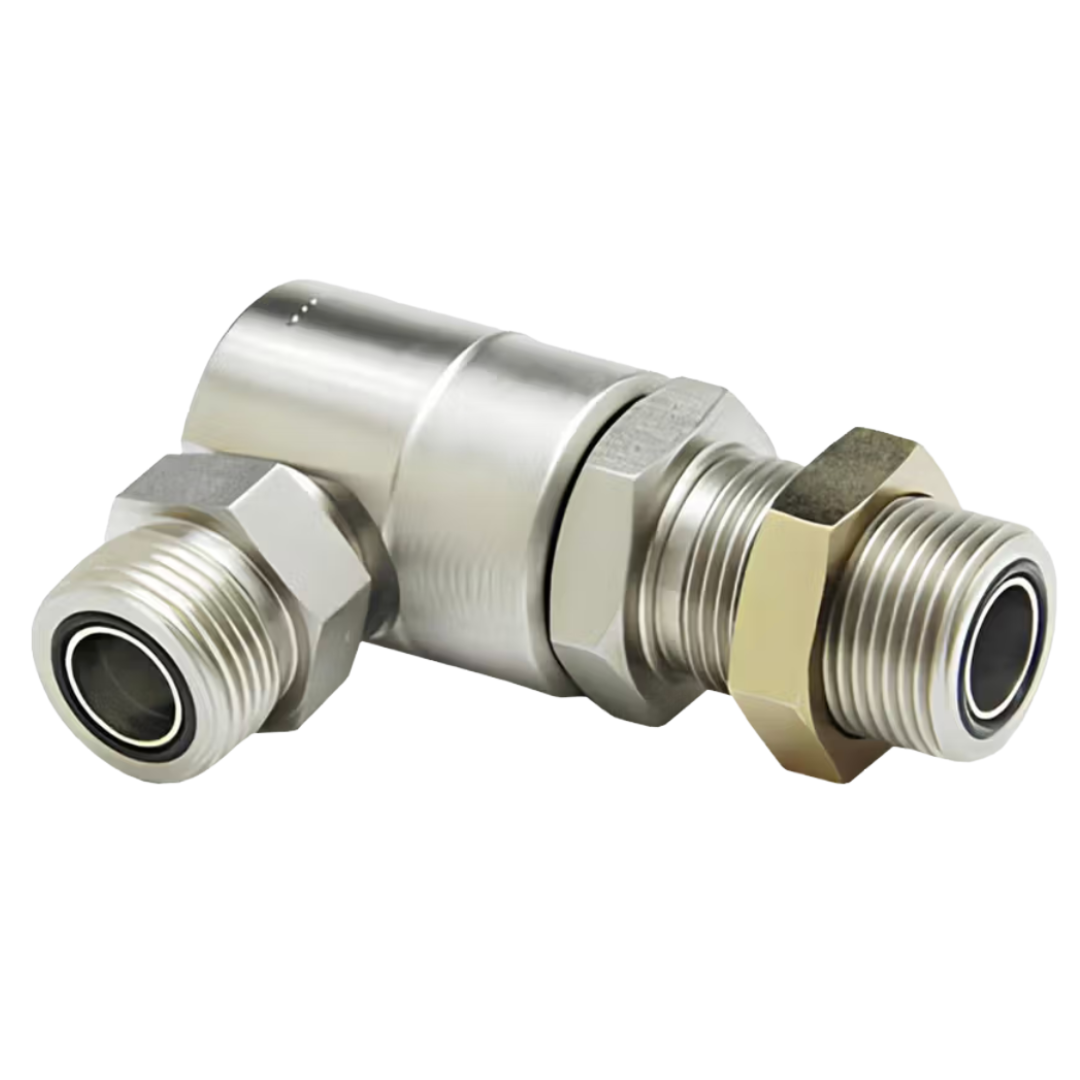

Super Swivels 90-Degree Standard Pressure Male Face Seal Bulkhead (MFSB) x Male Face Seal (MFS) hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. The bulkhead connection allows the swivel to be securely mounted through a panel or bracket, while the male O-ring face seal connections provide reliable, leak-resistant sealing in high-pressure hydraulic systems. Its full-flow design reduces hose-line complexity and bend radius, allowing hoses to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize internal seal wear and leakage. Available in face seal sizes from -6 through -20, these hydraulic bulkhead swivels have maximum working pressures from 4,000 to 5,000 PSI, depending on size.
Warning: Select the correct swivel size and seal material for the system fluid, temperature, operating pressure, and application. Never exceed the maximum pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Secure the bulkhead connection to a properly sized, adequately supported panel or bracket and follow the recommended installation torque. Do not apply pipe-thread sealant to face seal connections. Verify that all sealing faces and O-rings are clean, undamaged, properly seated, and compatible with the fluid, and replace any swivel that is worn, damaged, or leaking.
