Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Zinc |
| Shape | 90-Degree |
| Style | 90-Degree, Standard Pressure |
| Pressure Rating | 3500 |
| Fitting Style | Standard |
| Seal Material | Viton Extreme (ETP) |
| Series | SS90 MNPT X MNPT |
| Country of Manufacture | United States |
| Height | 1.25 |
| Length | 3.481 |
| Width | 1.25 |
| Side 1 Gender | Female |
| Side 1 Size | -12 |
| Side 1 Type | NPSM |
| Side 2 Gender | Male |
| Side 2 Size | -12 |
| Side 2 Type | NPTF |
Description

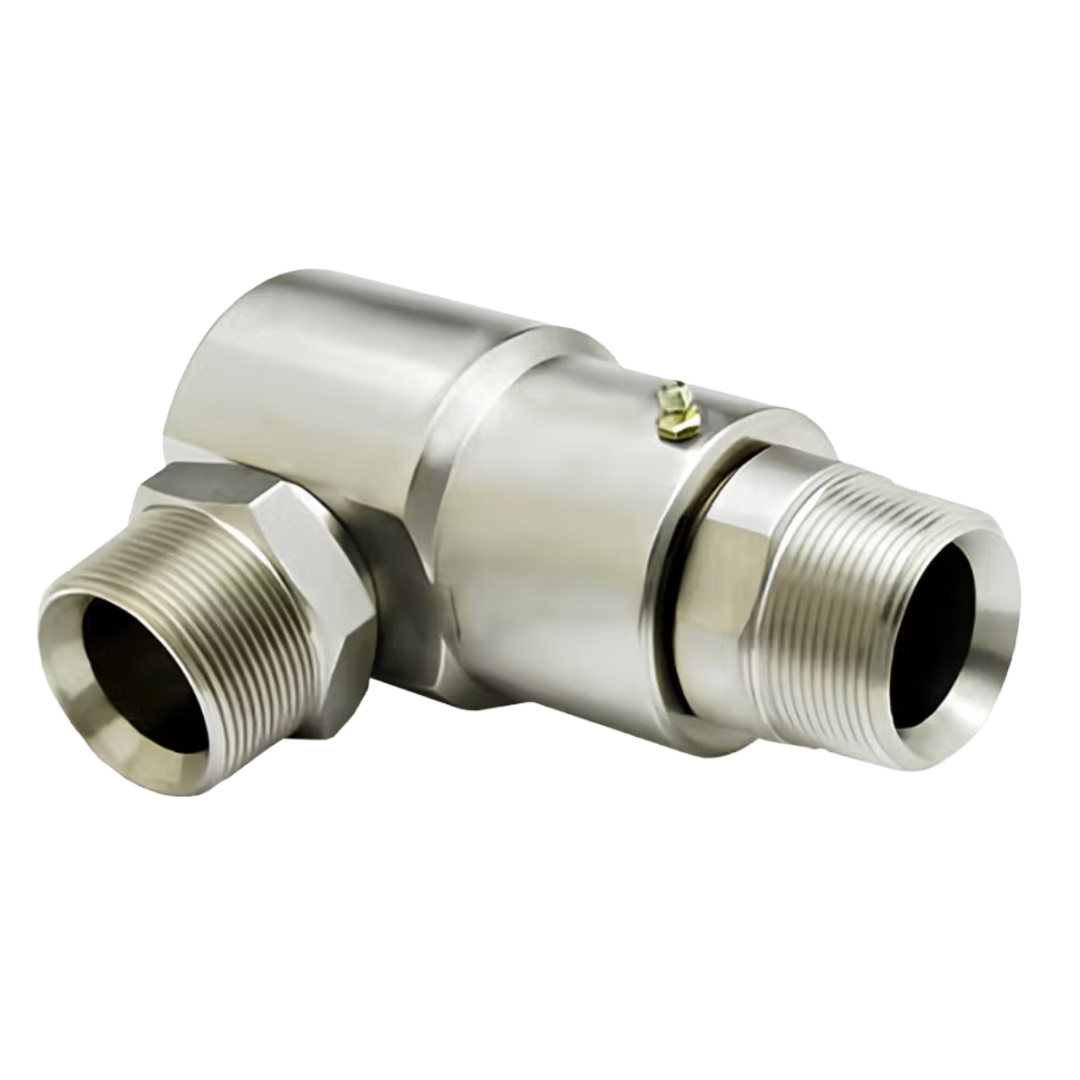

The Super Swivels 90-Degree Standard Pressure Swivel with Male Pipe (NPTF) × Pipe Swivel (NPSM) connections provides continuous rotation on one axis while redirecting hydraulic flow at a right angle. Its full-flow design helps reduce hose bending, twisting, kinking, friction, and line complexity, while the ball-bearing race supports heavy side loads to minimize premature seal wear and leakage. This hydraulic swivel connects directly to compatible hose and piping components without additional adapters and is available in select thread sizes from 1/4" through 1-1/2", with a maximum working pressure of 3,500 PSI.
Warning: Confirm thread size, mating-seat compatibility, fluid compatibility, temperature, and pressure rating before installation. Apply approved hydraulic thread sealant only to the tapered NPTF connection; the NPSM swivel connection seals against its mating seat and should not be sealed with thread tape or compound. Never install, tighten, disconnect, or service this swivel while the system is pressurized. Hydraulic fluid under pressure can penetrate skin and cause serious injury. Do not exceed the lowest-rated component in the system, and replace any damaged, worn, leaking, or improperly seated component before operation.
