Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Nickel |
| Shape | 90-Degree |
| Style | 90-Degree, Standard Pressure |
| Pressure Rating | 4500 |
| Fitting Style | Standard |
| Seal Material | Aflas (AL) |
| Series | SS90 MORB X FORB |
| Country of Manufacture | United States |
| Height | 2.172 |
| Length | 3.709 |
| Width | 2.172 |
| Side 1 Gender | Female |
| Side 1 Size | -12 |
| Side 1 Type | ORB |
| Side 2 Gender | Male |
| Side 2 Size | -12 |
| Side 2 Type | ORB |
Description

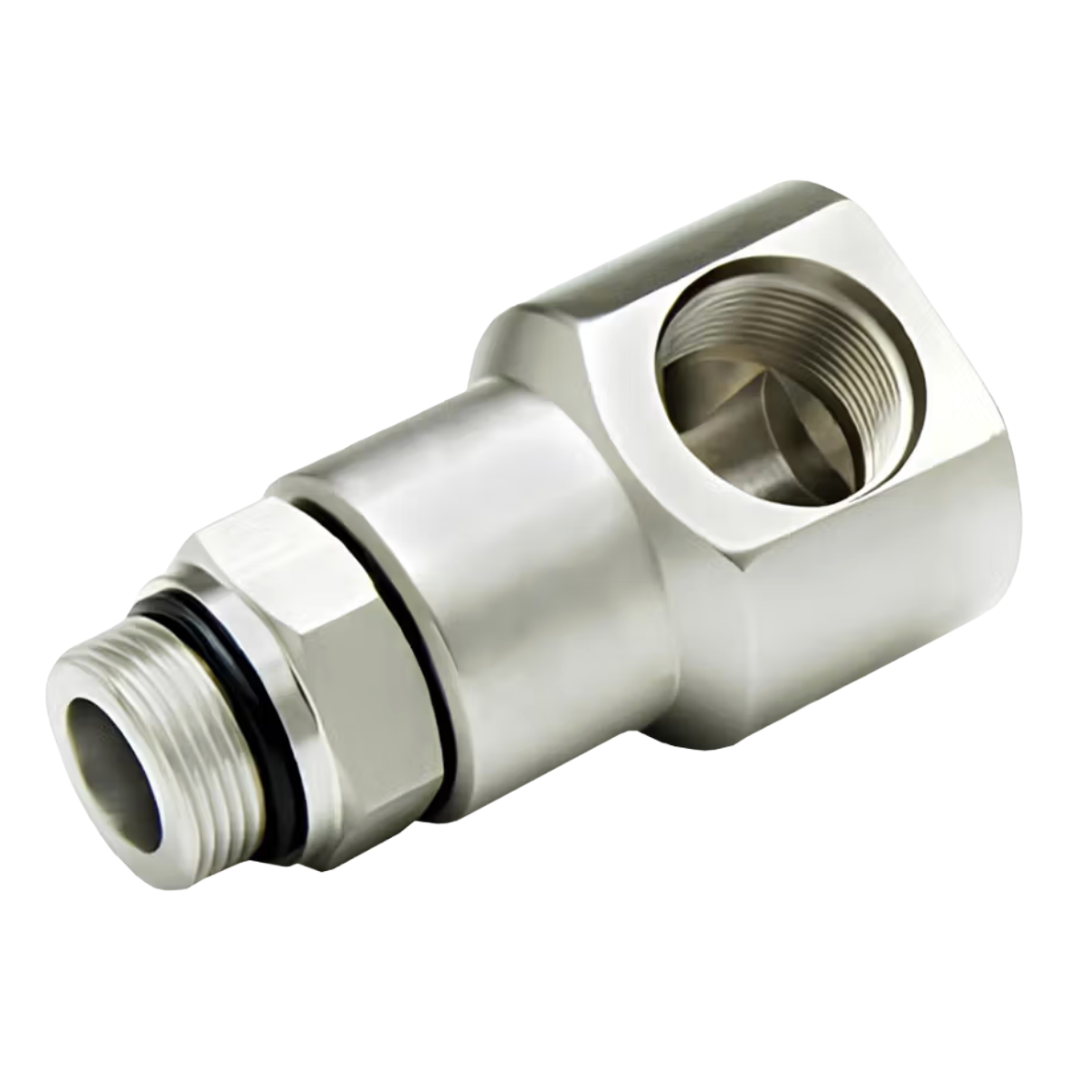

Super Swivels 90-Degree Standard Pressure Male O-Ring Boss (ORB) x Female O-Ring Boss (ORB) hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. The SAE straight-thread ORB connections use O-ring sealing for dependable, leak-resistant performance in high-pressure hydraulic systems. The full-flow design reduces hose-line complexity and bend radius, allowing hoses and piping to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize internal seal wear and leakage, while the male-to-female ORB configuration connects directly to compatible hydraulic lines without additional adapters. Available configurations include male ORB sizes from -4 through -20 and female ORB sizes from -6 through -20, with maximum working pressures from 4,000 to 5,000 PSI depending on size.
Warning: Select the correct swivel size and seal material for the system fluid, temperature, operating pressure, and application. Never exceed the maximum pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Do not apply pipe-thread sealant or sealing tape to either ORB connection; the threads provide retention while the O-ring creates the seal. Verify that all O-rings and sealing surfaces are clean, properly seated, undamaged, and compatible with the hydraulic fluid. Avoid overtightening and replace any swivel that is worn, damaged, or leaking.
