Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Minneapolis, Minnesota |
| Material | Zinc |
| Shape | 90-Degree |
| Style | 90-Degree, Standard Pressure |
| Pressure Rating | 3500 |
| Fitting Style | Bulkhead |
| Seal Material | Aflas (AL) |
| Series | SS90 MJIC X MJIC |
| Country of Manufacture | United States |
| Length | 4.454 |
| Side 1 Gender | Male |
| Side 1 Size | -12 |
| Side 1 Type | JIC |
| Side 2 Gender | Male |
| Side 2 Size | -08 |
| Side 2 Type | JIC |
Description

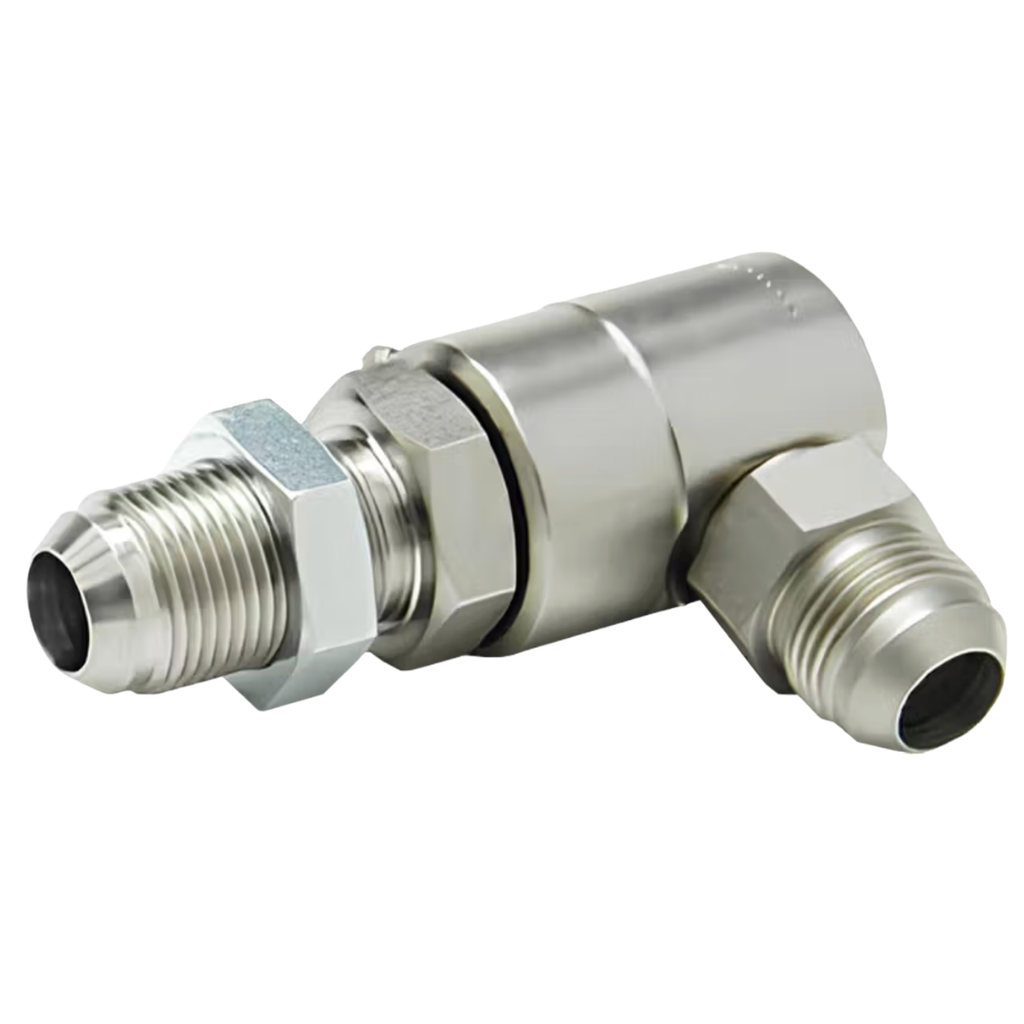

Super Swivels 90-Degree Standard Pressure Male JIC Bulkhead x Male JIC hydraulic swivels provide free rotation on one axis while creating a compact right-angle change in the fluid path. Both connections use industry-standard 37-degree JIC flare sealing surfaces, while the bulkhead end allows the swivel to be securely mounted through a panel or bracket. The full-flow design reduces hose-line complexity and bend radius, allowing hoses and piping to move more freely while helping prevent twisting, kinking, shock damage, and premature hose failure. A heavy-duty ball-bearing race withstands side loads to minimize internal seal wear and leakage, and the male JIC-to-male JIC configuration connects directly to compatible hydraulic hose ends without additional adapters. Available in matching JIC sizes from -6 through -20, these hydraulic bulkhead swivel fittings have a maximum working pressure of 3,500 PSI.
Warning: Select the correct swivel size and seal material for the system fluid, temperature, operating pressure, and application. Never exceed the maximum working pressure specified for the individual part number. Depressurize the hydraulic system before installation, inspection, or service; escaping fluid under pressure can penetrate the skin and cause serious injury. Secure the bulkhead connection to a properly sized, adequately supported panel or bracket. Do not apply pipe-thread sealant or sealing tape to either JIC connection; both seal at the 37-degree flare. Keep all flare surfaces clean and undamaged, avoid overtightening, and replace any swivel that is worn, damaged, or leaking.
