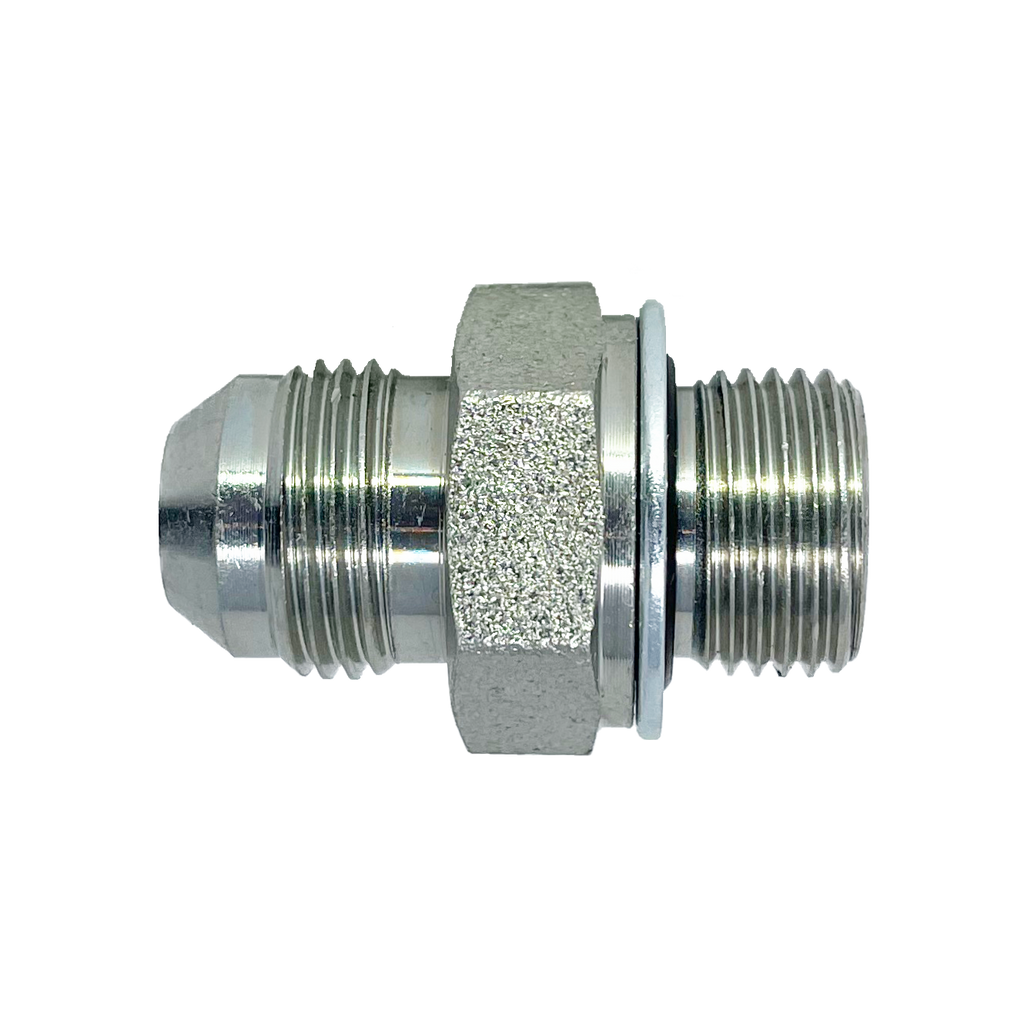

9606-08-S16-24 : Adaptall Straight Adapter, Male 0.5 (1/2") JIC x Male S16 DIN Tube, Carbon Steel, Heavy Duty

Save $1.93
Adapt AllSKU: 9606-08-S16-24
3-5 Days

Price:
Sale price$13.99 Regular price$15.92

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days
Factory Location Twinsburg, Ohio or Houston, Texas
Material Carbon Steel
Shape Straight
Adapter Notes HEAVY DUTY
Country of Manufacture Canada
Length 42.8mm
Side 1 Gender MALE
Side 1 Size 0.5 (1/2")
Side 1 Type JIC
Side 2 Gender Male
Side 2 Size S16
Side 2 Type DIN TUBE
Side 3 Gender N/A
Side 3 Type N/A

Description

For Adaptall products, the thread types for each description are displayed hose/tube and/or male side first, then port and/or female side (please refer to the Conversion Adapter Identification Guide for details). If both sides of a fitting are the same (both hose/tube or both port) they are displayed alphabetically. For example, a BSPP x NPT nipple has two port threads; according to alphabetization, this description would read BSPP male x NPT male. Part descriptions are then arranged in alphabetical order, with males appearing before females. For example, a male BSPP is typically the first listed while a female SAE O-ring Boss is last. Thread types are displayed first to allow for quick searching along the margin (as opposed to thread gender first which is common).
