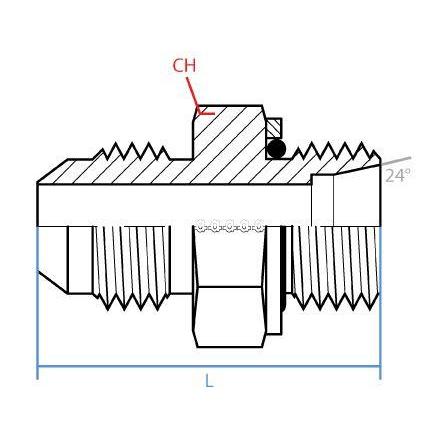

9605S-20-L35-45 : Adaptall Straight Steel Adapter, 1-5/8-12 (-20) Male JIC x M45 X 2.0 (-L35) Male DIN with Seal, Light Duty

Save $22.95
Adapt AllSKU: 9605S-20-L35-45
3-5 Days

Price:
Sale price$28.99 Regular price$51.94

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days
Factory Location Twinsburg, Ohio or Houston, Texas
Material Carbon Steel
Shape Straight
Adapter Notes LIGHT DUTY
Country of Manufacture Canada
Length 60.4mm
Side 1 Gender MALE
Side 1 Size 1-5/8-12 (-20)
Side 1 Type JIC
Side 2 Gender MALE
Side 2 Size M45 X 2.0 (-L35)
Side 2 Type DIN TUBE

Description

For Adaptall products, the thread types for each description are displayed hose/tube and/or male side first, then port and/or female side (please refer to the Conversion Adapter Identification Guide for details). If both sides of a fitting are the same (both hose/tube or both port) they are displayed alphabetically. For example, a BSPP x NPT nipple has two port threads; according to alphabetization, this description would read BSPP male x NPT male. Part descriptions are then arranged in alphabetical order, with males appearing before females. For example, a male BSPP is typically the first listed while a female SAE O-ring Boss is last. Thread types are displayed first to allow for quick searching along the margin (as opposed to thread gender first which is common).
