Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Twinsburg, Ohio or Houston, Texas |
| Material | Carbon Steel |
| Shape | 90-Degree |
| Country of Manufacture | Canada |
| Length | N/A |
| Side 1 Gender | MALE |
| Side 1 Size | 1/4-19 (-04) |
| Side 1 Type | JIS |
| Side 2 Gender | MALE |
| Side 2 Size | 7/16-20 (-04) |
| Side 2 Type | ORB |
Description

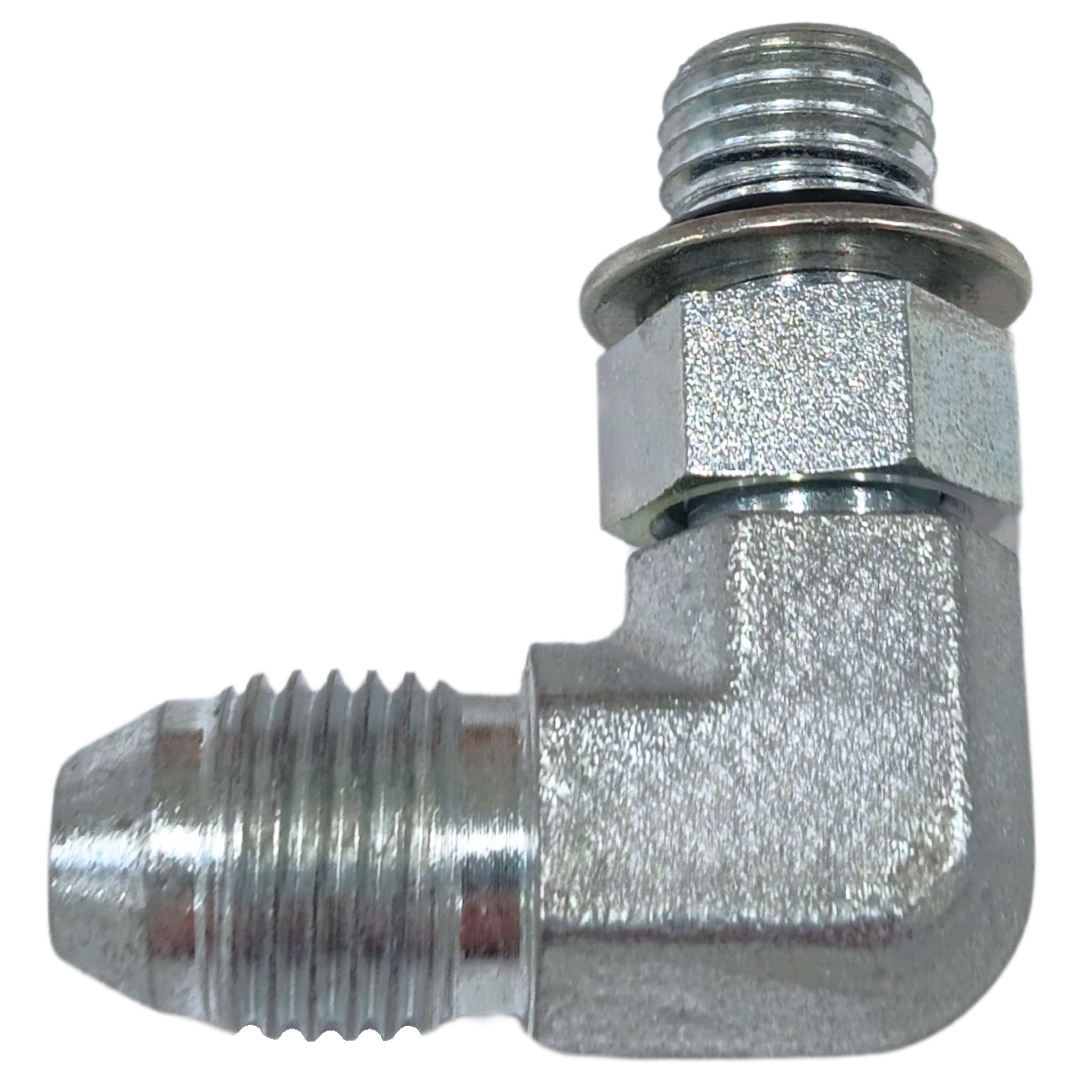

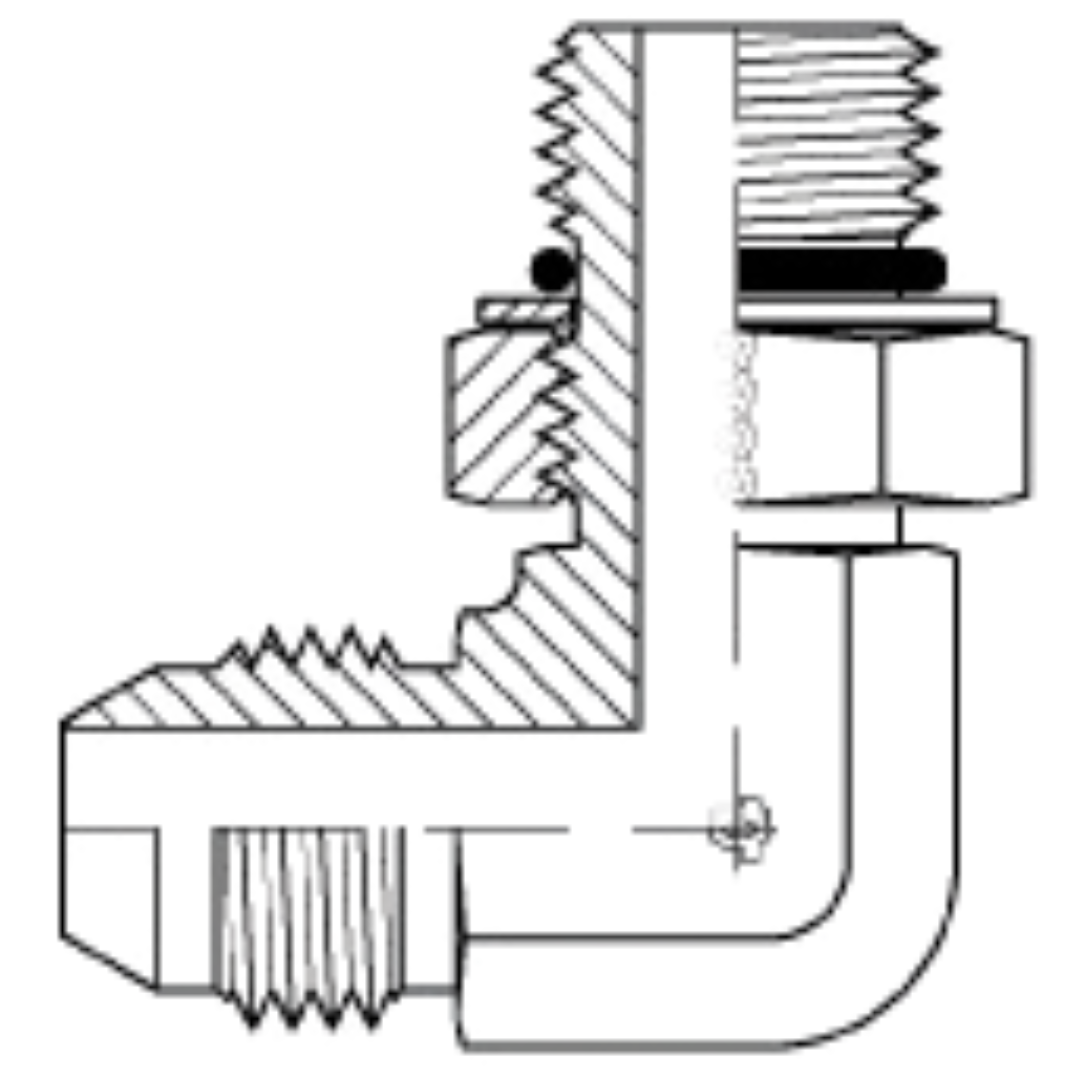

The Series 9278 90-Degree Angled Male JIS (Japanese Industrial Standard) x Male Adjustable ORB adapters are high-quality carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle, making them ideal for efficiently routing hoses and pipes in tight or confined spaces. One end is equipped with a male JIS (Japanese Industrial Standard) connection, which is commonly used in Japanese hydraulic systems, while the other end features a male Adjustable ORB (O-Ring Boss) connection, ensuring a reliable, adjustable seal by compressing an O-ring into the port's chamfer. Made from durable carbon steel, the Series 9278 offers excellent strength, corrosion resistance, and long-lasting performance, making it perfect for high-pressure fluid power systems in industrial applications that require dependable, flexible, and efficient connections.
