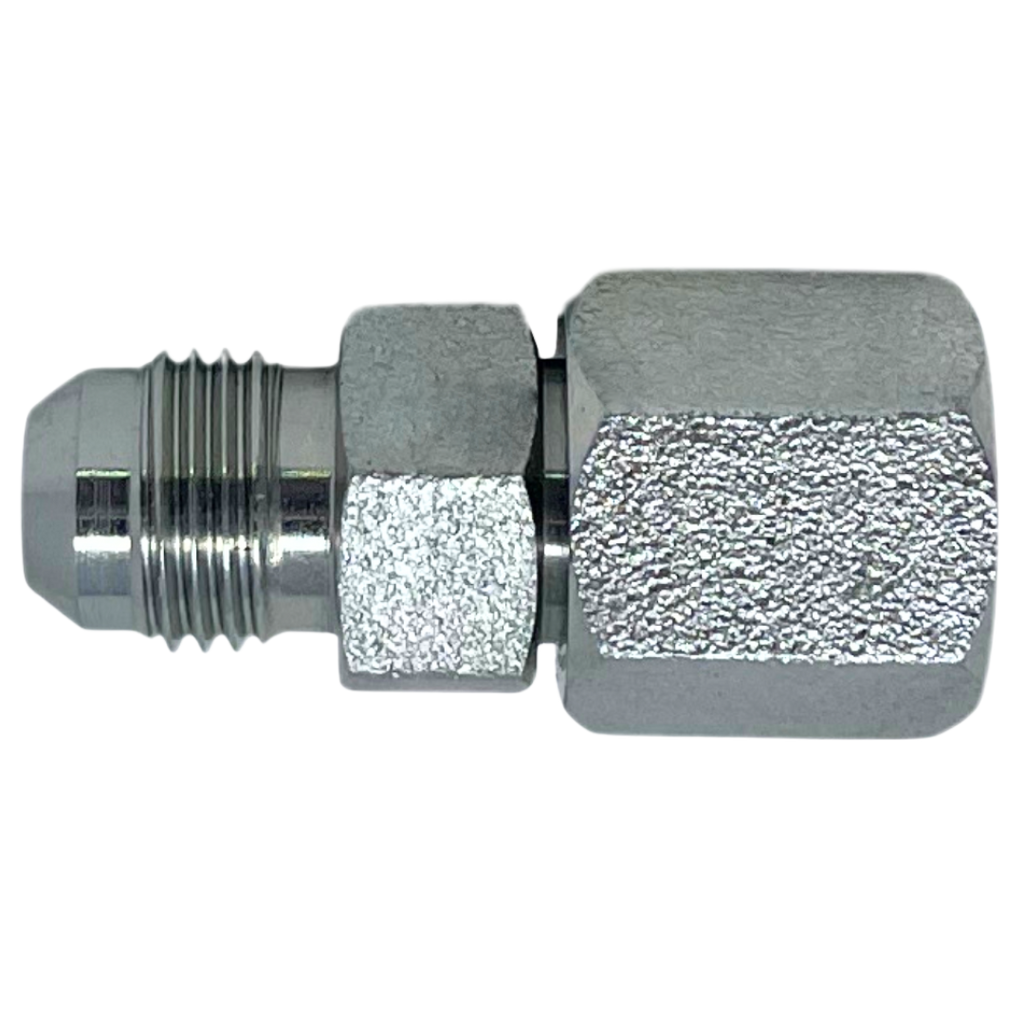

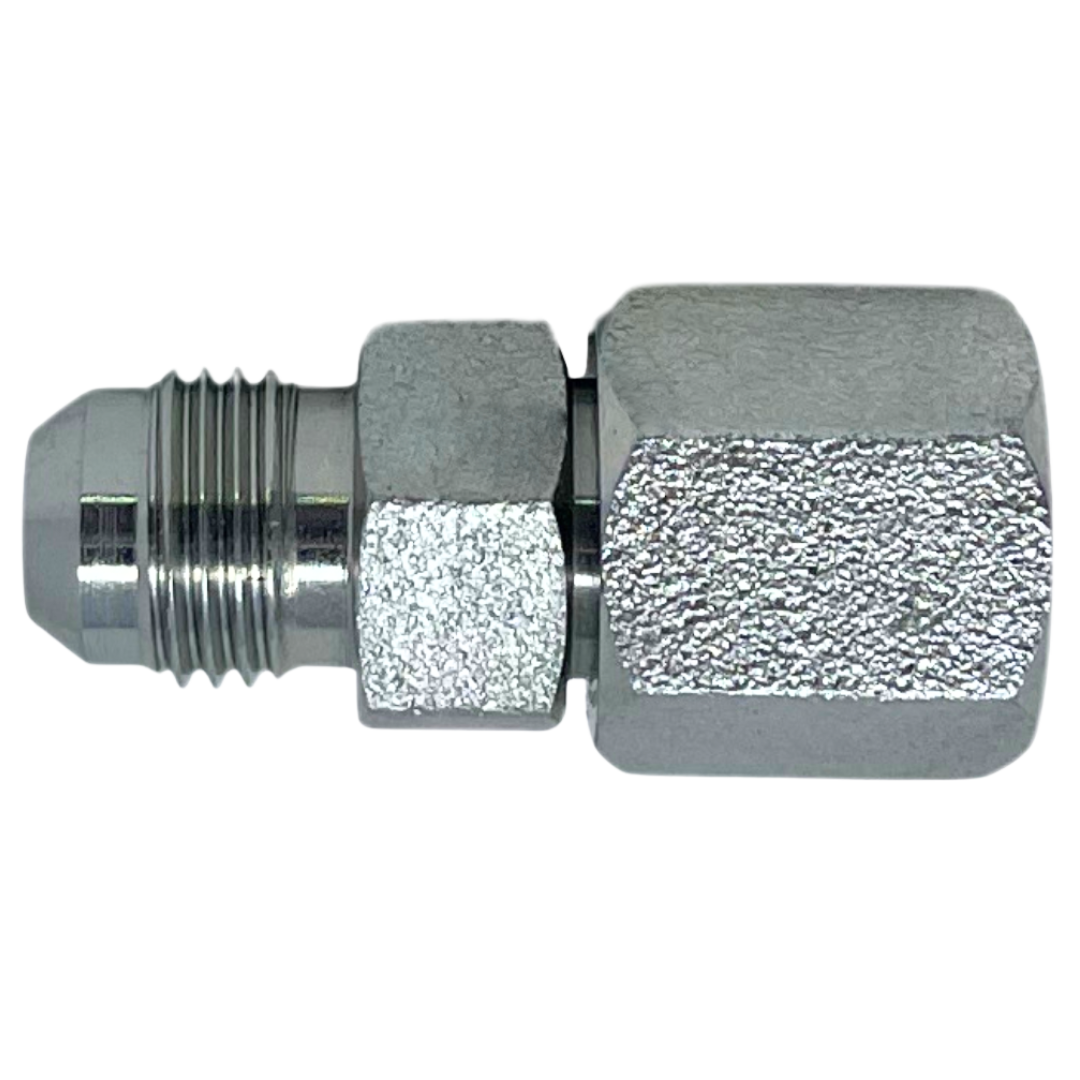

9197-16-L28-36 : Adaptall Straight Steel Adapter, 1-5/16-12 (-16) Male JIC x M36 X 2.0 (-L28) Female DIN Tube Swivel, Light Duty
9197-16-L28-36 : Adaptall Straight Steel Adapter, 1-5/16-12 (-16) Male JIC x M36 X 2.0 (-L28) Female DIN Tube Swivel, Light Duty
Roll over image to zoom in Click on image to zoom
9197-16-L28-36 : Adaptall Straight Steel Adapter, 1-5/16-12 (-16) Male JIC x M36 X 2.0 (-L28) Female DIN Tube Swivel, Light Duty9197-16-L28-36 : Adaptall Straight Steel Adapter, 1-5/16-12 (-16) Male JIC x M36 X 2.0 (-L28) Female DIN Tube Swivel, Light Duty

9197-16-L28-36 : Adaptall Straight Steel Adapter, 1-5/16-12 (-16) Male JIC x M36 X 2.0 (-L28) Female DIN Tube Swivel, Light Duty

Save $24.05
Adapt AllSKU: 9197-16-L28-36
3-5 Days
Price:
$31.99 $56.04

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days
Factory Location Twinsburg, Ohio or Houston, Texas
Material Carbon Steel
Shape Straight
Country of Manufacture Canada
Length 60.7mm
Side 1 Gender MALE
Side 1 Size 1-5/16-12 (-16)
Side 1 Type JIC
Side 2 Gender FEMALE
Side 2 Size M36 X 2.0 (-L28)
Side 2 Type DIN TUBE

Description

Our Series 9197L Straight Male JIC x Female DIN adapters, made from durable carbon steel, are essential components designed to provide secure, leak-free connections in hydraulic systems. These adapters feature a male JIC (Joint Industry Council) end, utilizing a 37-degree flare seating surface and parallel threads, as specified by SAE J514, ensuring reliable performance in fluid power applications. The other end features a female DIN (Deutsches Institut für Normung) connection, known for its strong, standardized fitting in industrial applications. These adapters are ideal for connecting hoses and components, offering a dependable solution for professionals seeking high-quality hydraulic systems that maintain performance and efficiency under pressure.
