Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Twinsburg, Ohio or Houston, Texas |
| Material | Carbon Steel |
| Shape | Tee |
| Country of Manufacture | Canada |
| Length | N/A |
| Side 1 Gender | MALE |
| Side 1 Size | 1-1/16-12 (-12) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 1-1/16-12 (-12) |
| Side 2 Type | JIC |
| Side 3 Gender | MALE |
| Side 3 Size | 3/4-14 (-12) |
| Side 3 Type | BSPT |
Description

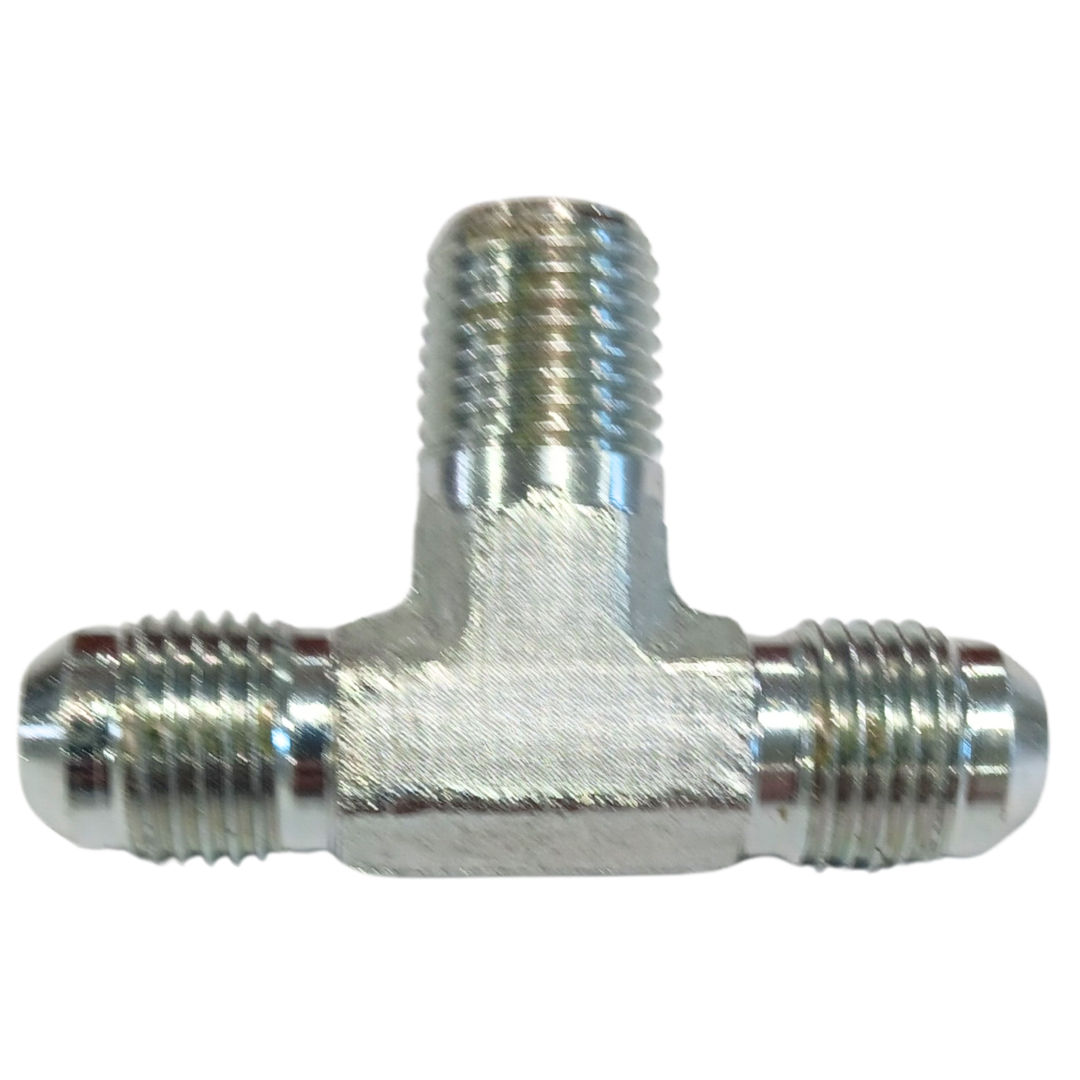

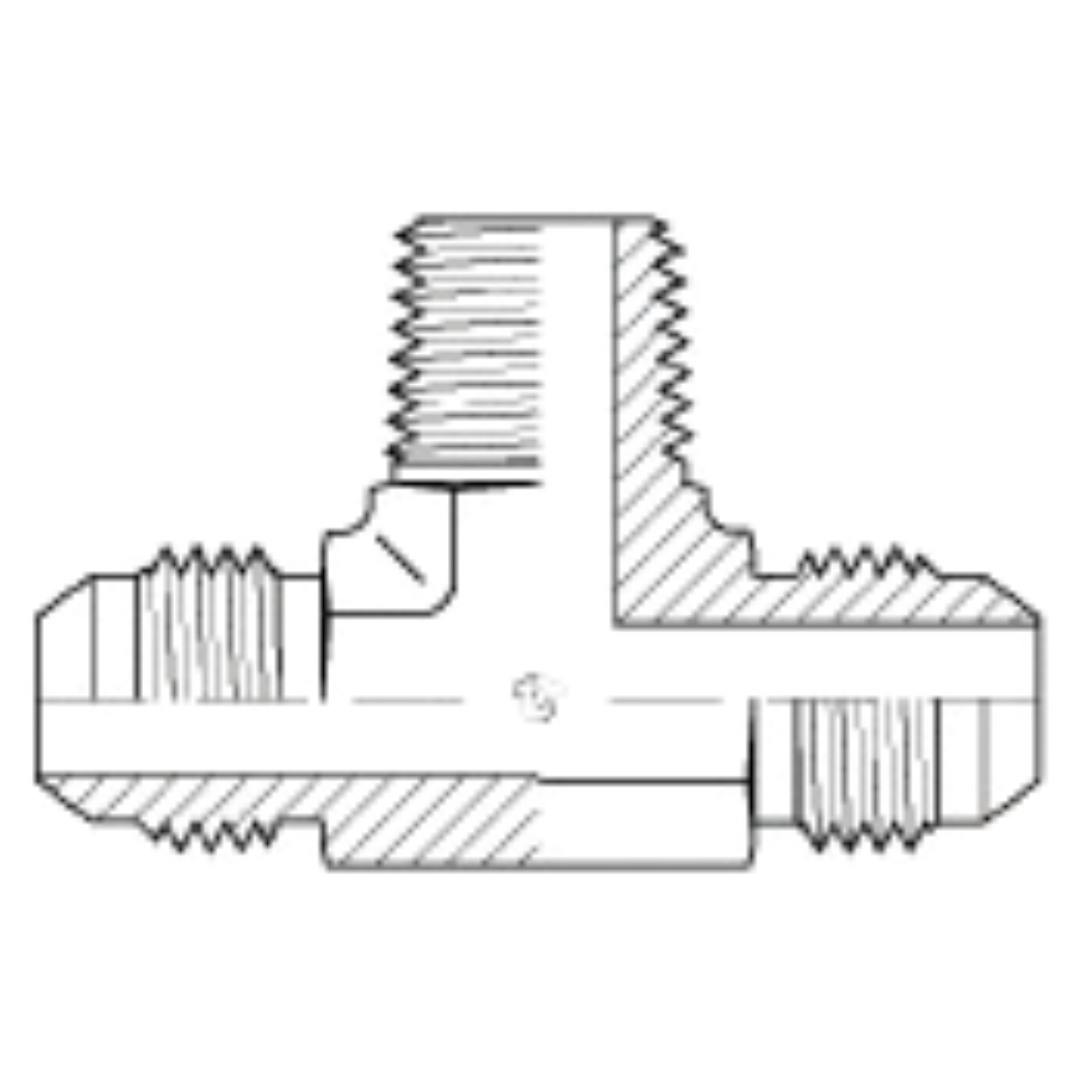

The Series 9164 Branch Tee Male JIC x Male JIC x Male BSPT adapters are high-quality carbon steel fittings designed for secure, leak-free connections in hydraulic and fluid power systems. These branch tee adapters feature a three-way design, allowing for the efficient distribution of fluid flow into multiple paths within a system. Both ends are equipped with male JIC (Joint Industry Council) connections, which use a 37° tapered seat to create a strong, mechanical seal. The third end features a male BSPT (British Standard Pipe Tapered) connection, providing a tight, leak-proof seal through thread deformation. Made from durable carbon steel, the Series 9164 adapters offer exceptional strength, corrosion resistance, and long-lasting performance, making them perfect for high-pressure fluid systems and industrial applications. These adapters are ideal for systems that require reliable, flexible, and efficient fluid routing in demanding environments.
