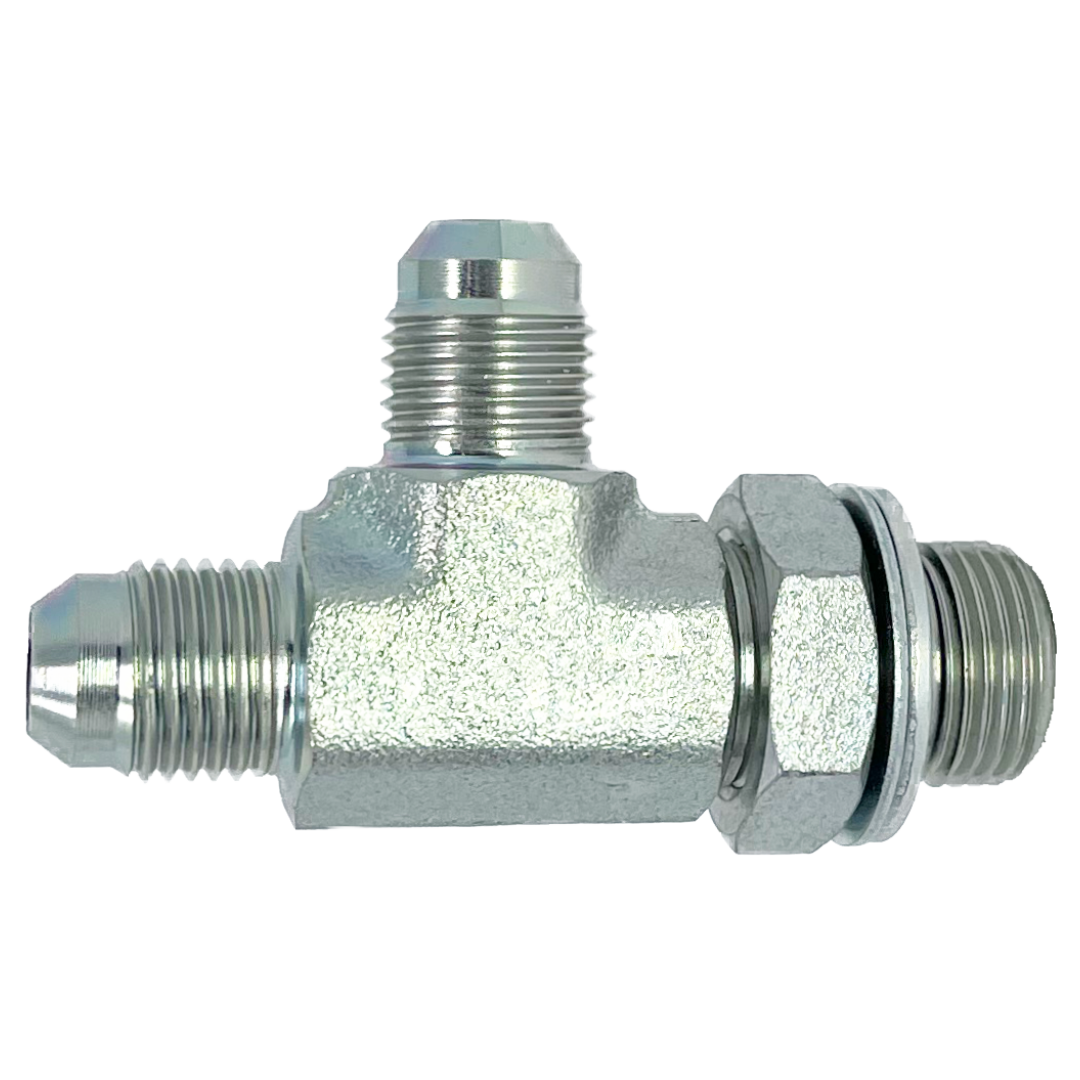

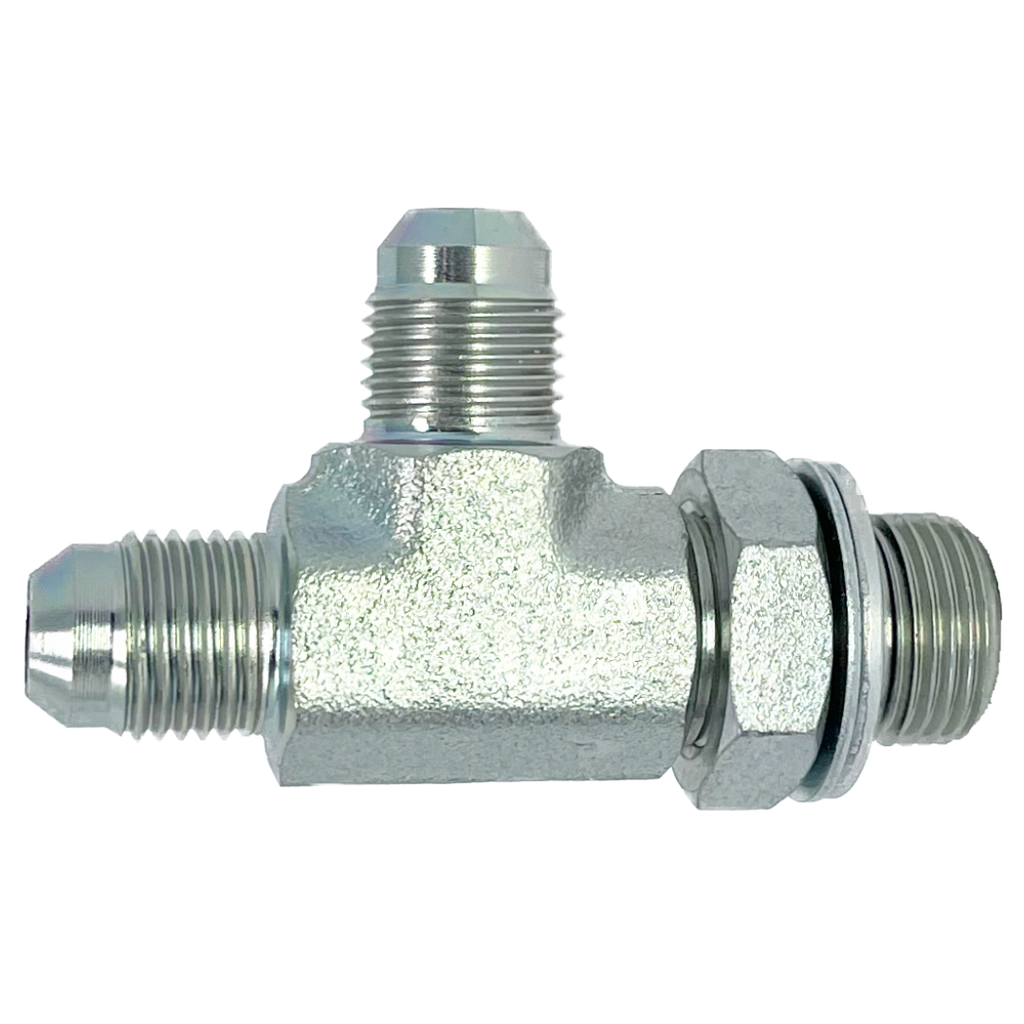

9158-20-20-20 : Adaptall Run Tee Steel Adapter, 1-5/8-12 (-20) Male JIC x 1-5/8-12 (-20) Male JIC x 1-1/4-11 (-20) Male Adjustable BSPP
9158-20-20-20 : Adaptall Run Tee Steel Adapter, 1-5/8-12 (-20) Male JIC x 1-5/8-12 (-20) Male JIC x 1-1/4-11 (-20) Male Adjustable BSPP
Roll over image to zoom in Click on image to zoom
9158-20-20-20 : Adaptall Run Tee Steel Adapter, 1-5/8-12 (-20) Male JIC x 1-5/8-12 (-20) Male JIC x 1-1/4-11 (-20) Male Adjustable BSPP9158-20-20-20 : Adaptall Run Tee Steel Adapter, 1-5/8-12 (-20) Male JIC x 1-5/8-12 (-20) Male JIC x 1-1/4-11 (-20) Male Adjustable BSPP

9158-20-20-20 : Adaptall Run Tee Steel Adapter, 1-5/8-12 (-20) Male JIC x 1-5/8-12 (-20) Male JIC x 1-1/4-11 (-20) Male Adjustable BSPP

Save $56.68
Adapt AllSKU: 9158-20-20-20
3-5 Days
Price:
$82.92 $139.60

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days
Factory Location Twinsburg, Ohio or Houston, Texas
Material Carbon Steel
Shape Tee
Country of Manufacture Canada
Length N/A
Side 1 Gender MALE
Side 1 Size 1-5/8-12 (-20)
Side 1 Type JIC
Side 2 Gender MALE
Side 2 Size 1-5/8-12 (-20)
Side 2 Type JIC
Side 3 Gender MALE
Side 3 Size 1-1/4-11 (-20)
Side 3 Type BSPP

Description

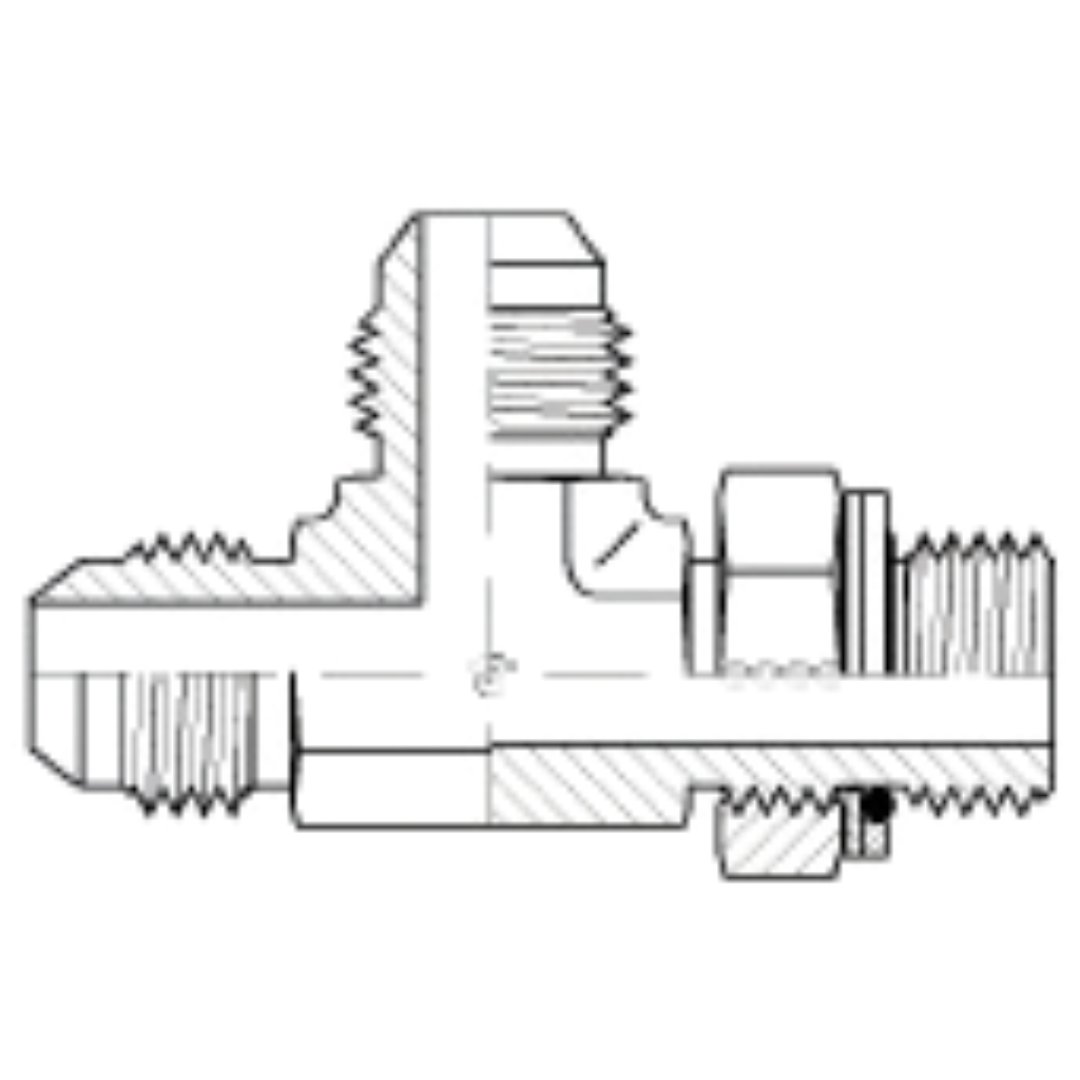

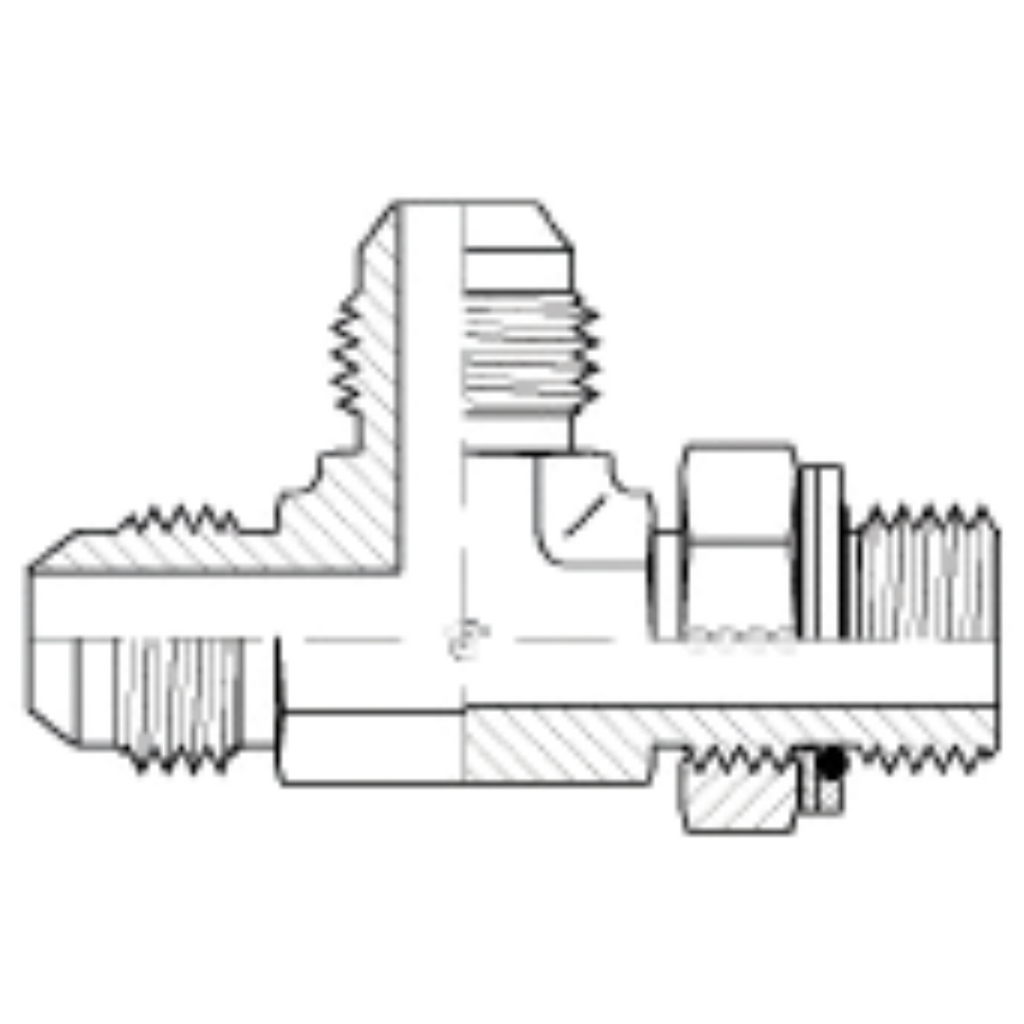

The Series 9158 Run Tee Male JIC x Male JIC x Male Adjustable BSPP adapters are high-quality carbon steel fittings designed for secure, leak-free connections in hydraulic and fluid power systems. These run tee adapters feature a three-way design, allowing for efficient routing of fluid through a primary line while also creating a branch. Both ends have male JIC (Joint Industry Council) connections, using a 37° tapered seat to form a reliable, mechanical seal. The third end features a male adjustable BSPP (British Standard Parallel Pipe) connection, which provides a flexible, leak-proof seal via an O-ring, allowing for easy alignment and adjustment during installation. Made from durable carbon steel, the Series 9158 adapters offer excellent strength, corrosion resistance, and long-lasting performance, making them ideal for high-pressure systems and industrial applications. These adapters are perfect for systems that require efficient, reliable, and flexible fluid routing in demanding environments.
