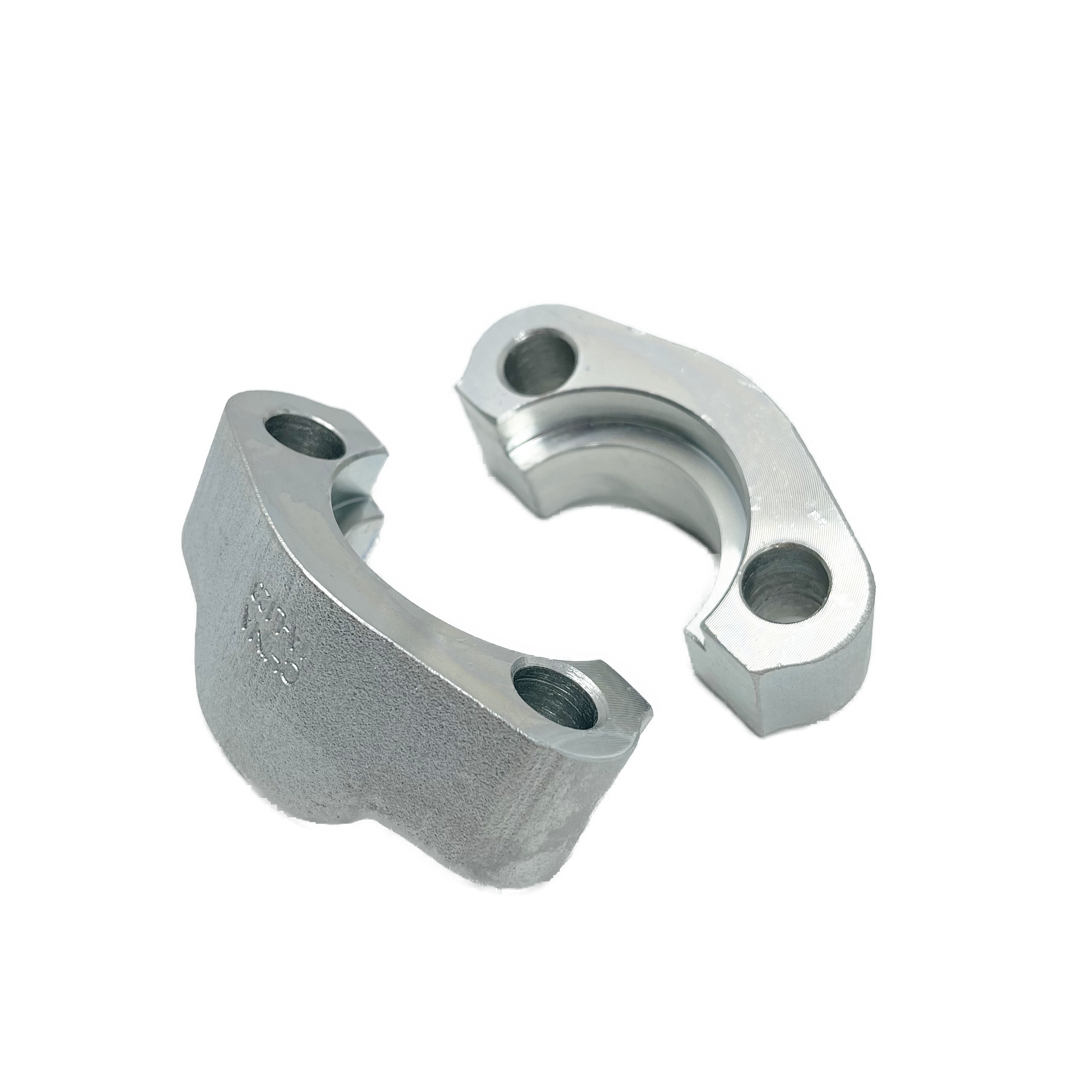

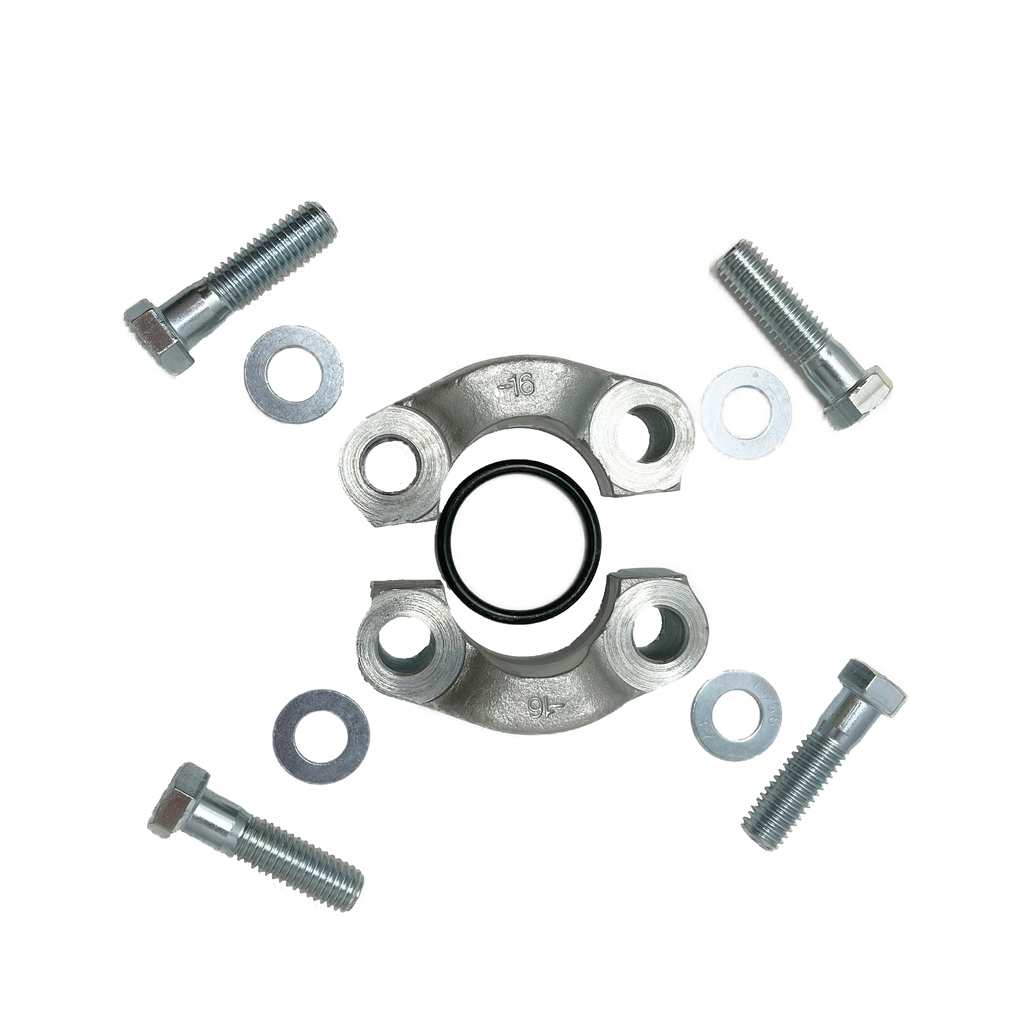

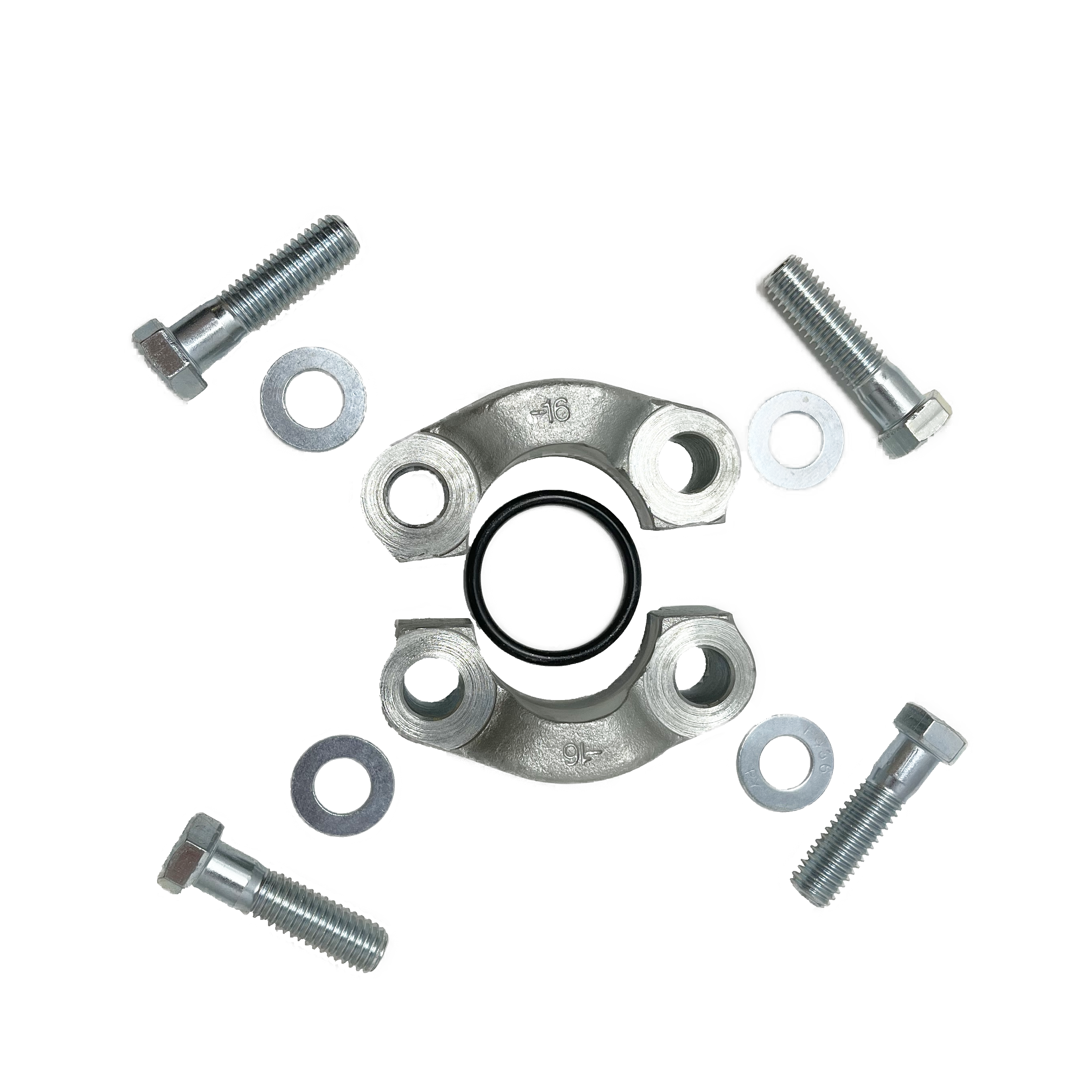

Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 5 Days |
| Factory Location | Cincinnati, Ohio and Houston, Texas |
| Material | Carbon Steel |
| Flange Code | Code 62 Split Flange Kit |
| Flange Size | 0.5 (1/2") |
| Pressure Rating | 6000 |
| Sae Connector Flange Type | Split Flange Kit |
| Fitting Angle | Straight |
| Country of Manufacture | China |
| Height | 0.62 |
| Length | 0.89 |
| Width | 2.22 |
Description
AnchorÕs broad range of hydraulic flange configurations provides design engineers and shop assembly personnel with total flexibility in the plumbing of hydraulic systems. Their wide variety of standard configurations are available OFF-THESHELF to meet todayÕs reduced lead time requirements. Anchor Fluid Power split flange connections are manufactured according to SAE J518-1 and -2, as well as ISO 6162-1 and -2. These standards control dimensions, tolerances, and plating. Pressure ratings provided are for the flange connection. Adapting the flange to other connections such as braze tube, welded pipe, or threaded ports or stud ends cound reduce maximum working pressure.
