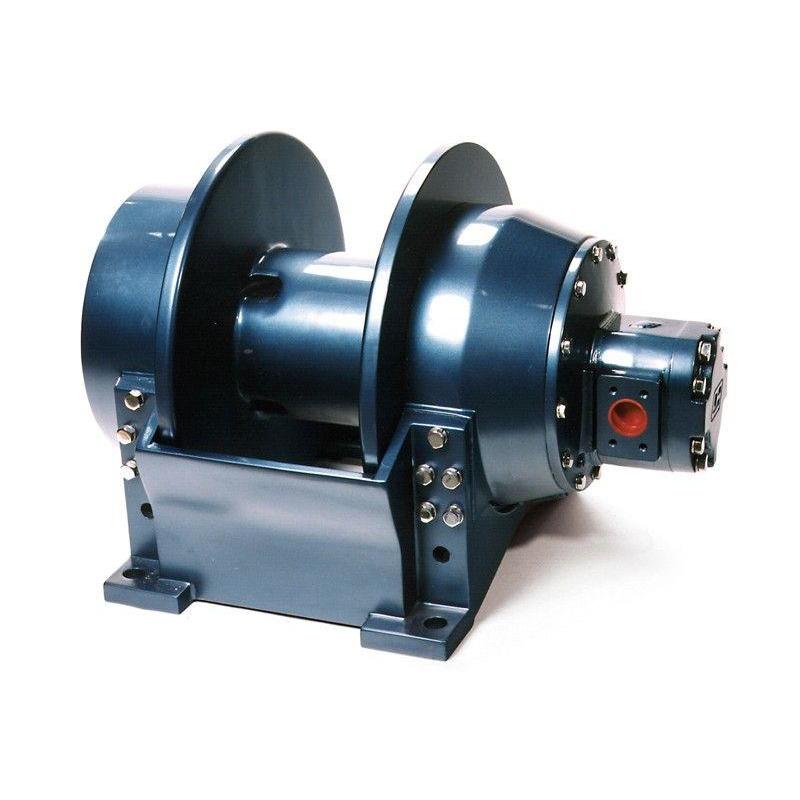

HL25-7-86-3 : Pullmaster Planetary Hydraulic Winch, Low Forward Rapid Reverse, 25000lb Bare Drum Pull, 16860lb Full Pull, 207FPM, 7/8" - 140ft Capacity, Auto Brake, CW, 115GPM, 10" Barrel Dia, 24" Flange Dia, 11" Drum Length
Roll over image to zoom in Click on image to zoom
HL25-7-86-3 : Pullmaster Planetary Hydraulic Winch, Low Forward Rapid Reverse, 25000lb Bare Drum Pull, 16860lb Full Pull, 207FPM, 7/8" - 140ft Capacity, Auto Brake, CW, 115GPM, 10" Barrel Dia, 24" Flange Dia, 11" Drum Length

HL25-7-86-3 : Pullmaster Planetary Hydraulic Winch, Low Forward Rapid Reverse, 25000lb Bare Drum Pull, 16860lb Full Pull, 207FPM, 7/8" - 140ft Capacity, Auto Brake, CW, 115GPM, 10" Barrel Dia, 24" Flange Dia, 11" Drum Length

Pull MasterSKU: 83515
12-14 Weeks
Price:
$34,200.61

Product Details

Data Sheet Download Datasheet
Usually Ships Within 12-14 Weeks
Factory Location Surrey, BC, Canada
Service Manual Click here to download
Hydraulic Motor Pressure 2500psi
Drum Torque 135,937 in-lb
Drum Speed 49 RPM
Country of Manufacture United States
Height 19.94
Length 50.63
Width 20.75
Weight 1031

Description

The TWG Pullmaster Model HL Series offer high performance, high efficiency planetary winches. The HL is a high-performance, high-efficiency planetary winch with rapid reverse speed 4.5 times faster than forward speed. In reverse rotation (lowering), the maximum load can be positively controlled at a line speed equal to the hoisting speed.
