Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 10-12 Weeks |
| Factory Location | Surrey, BC, Canada |

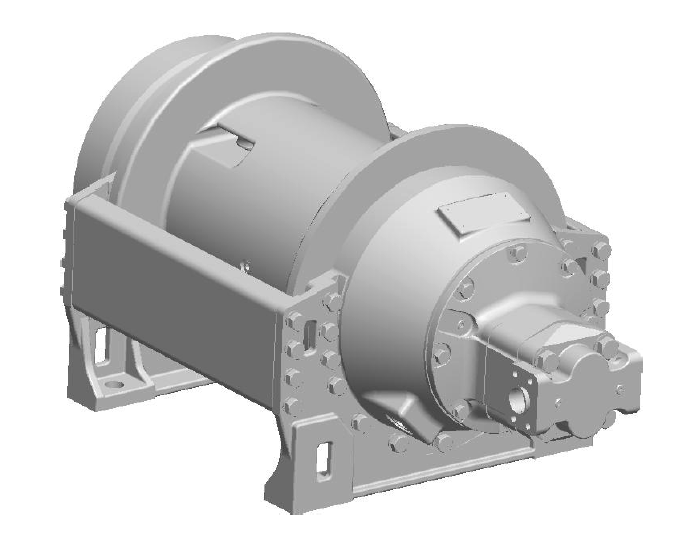

| Solid Model | |
| Service Manual Download | |
| Service Manual | Click here to download |
| Hydraulic Motor Pressure | 2300psi |
| Drum Torque | 83,250 in-lb |
| Drum Speed | 50.5 RPM |
| Country of Manufacture | Canada |

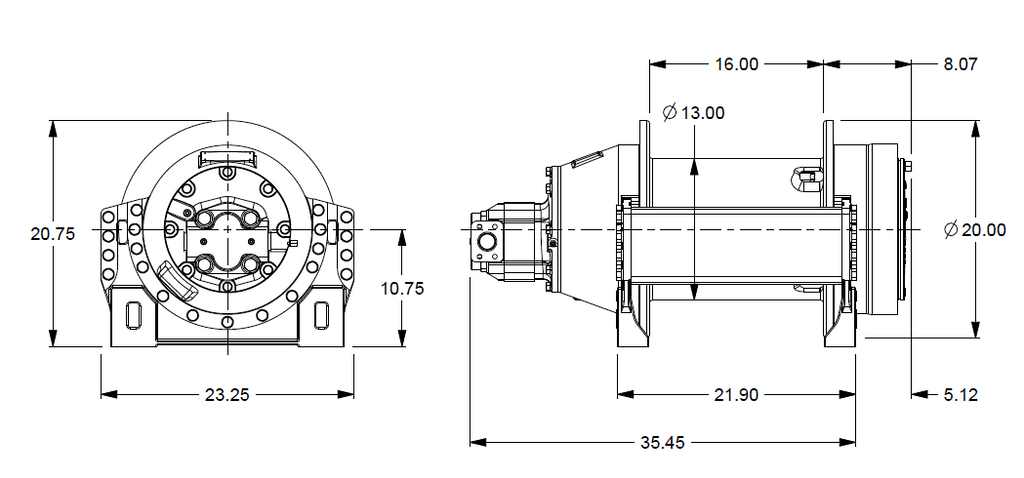

| Height | 20.75 |
| Length | 40.57 |
| Width | 23.25 |
| Weight | 1018 |
Description

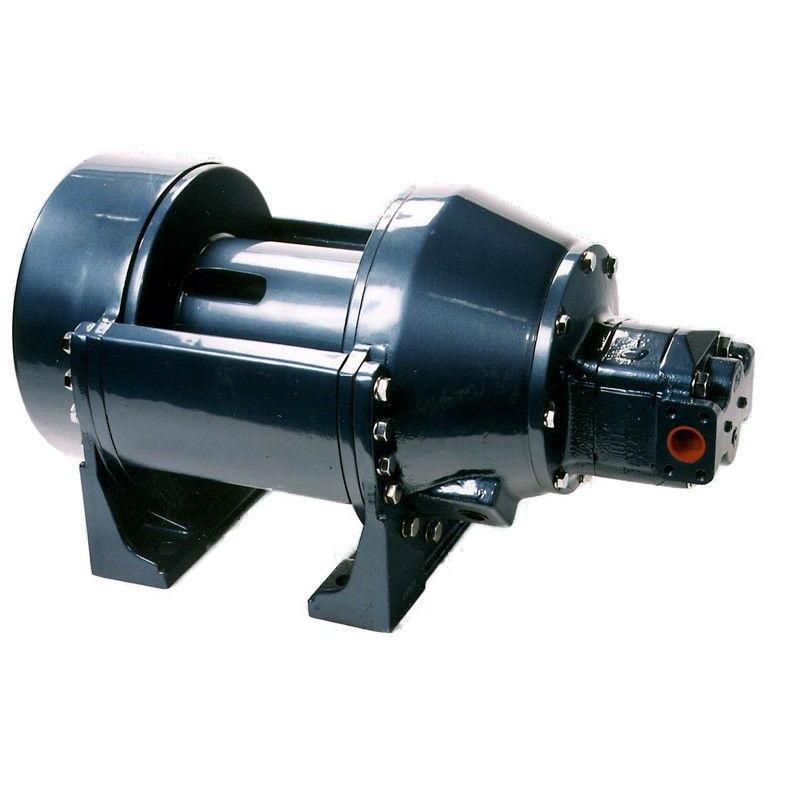

The TWG Pullmaster Rapid Reverse planetary winches provide reverse speeds that are 4.5 times faster than forward speeds. In applications that include lighter loads or swing functions, Pullmaster's Rapid Reverse winches create less resistance and increase cycle times and productivity. Ideal for a variety of applications including fishing, dredging and marine applications.

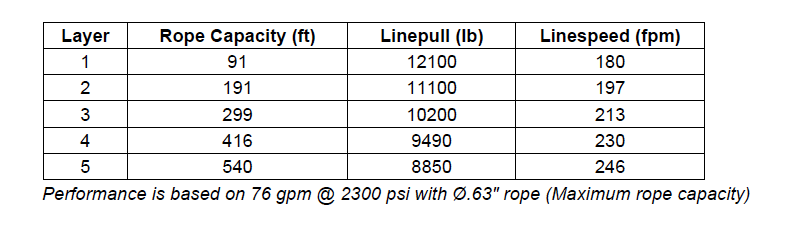

* 12,100 lbs. capacity rapid reverse winch storing 1760 ft. of 3/4” dia. rope
* With Auto Brake, Ext Brake Release
* Counter-Clockwise Rotation ( Direction of drum rotation viewed from motor when pulling or lifting)
* Int Circulation Flow
* 76 GPM Motor, 12,100 lb capacity
* 13.0" Barrel x 16.0" Length x 20.0" Flange
