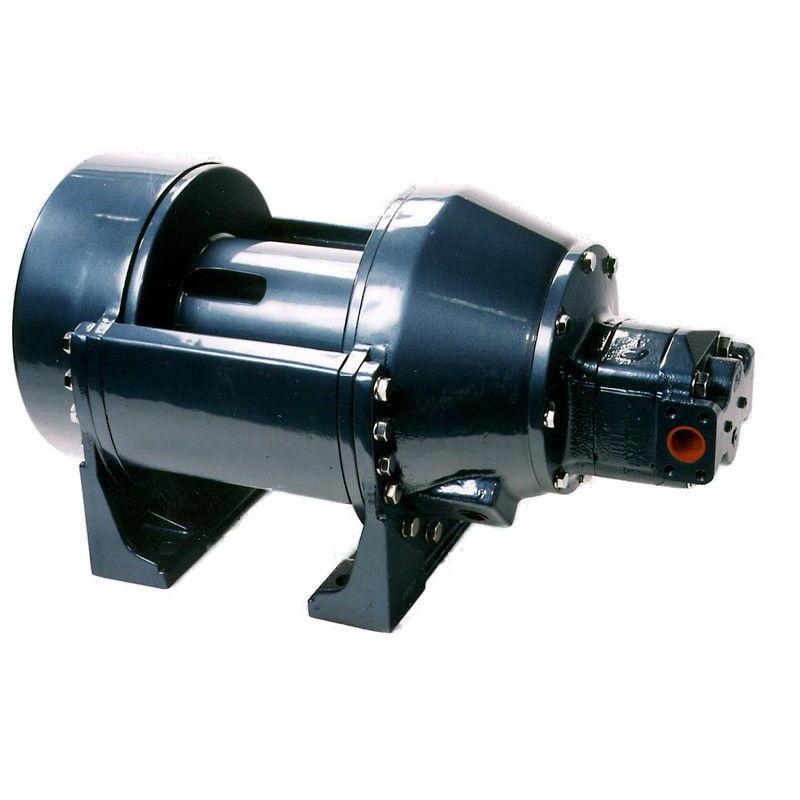

H18-8-101-4 : Pullmaster Planetary Hydraulic Winch, Rapid Reverse, 18,000lb Bare Drum Pull, Auto Brake with Ext Release, CW, Ext Circulation Flow, 76GPM Motor, 8.5" Barrel x 22.0" Length x 28.0" Flange

Pull MasterSKU: 82019
12-14 Weeks

Price:
Sale price$23,473.40

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 12-14 Weeks
Factory Location Surrey, BC, Canada

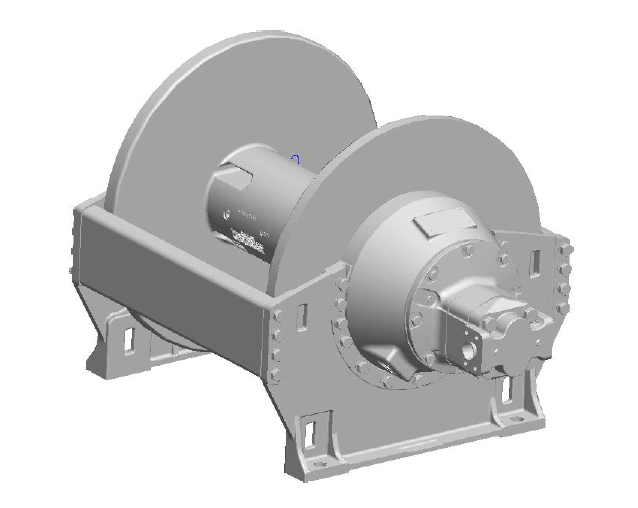

Solid Model

Click here to download

Service Manual Download

Click here to download

Service Manual Click here to download
Hydraulic Motor Pressure 2300psi
Drum Torque 83,250 in-lb
Drum Speed 50.5 RPM
Country of Manufacture Canada
Height 28.70
Length 46.69
Width 31.25
Weight 1345

Description

The TWG Pullmaster Rapid Reverse planetary winches provide reverse speeds that are 4.5 times faster than forward speeds. In applications that include lighter loads or swing functions, Pullmaster's Rapid Reverse winches create less resistance and increase cycle times and productivity. Ideal for a variety of applications including fishing, dredging and marine applications.

18,000 lbs. capacity rapid reverse winch storing 1760 ft. of 3/4” dia. rope

* With Auto Brake, Ext Brake Release

* Clockwise Rotation ( Direction of drum rotation viewed from motor when pulling or lifting)

* Ext Circulation Flow

* 76 GPM Motor, 18,000 lb capacity

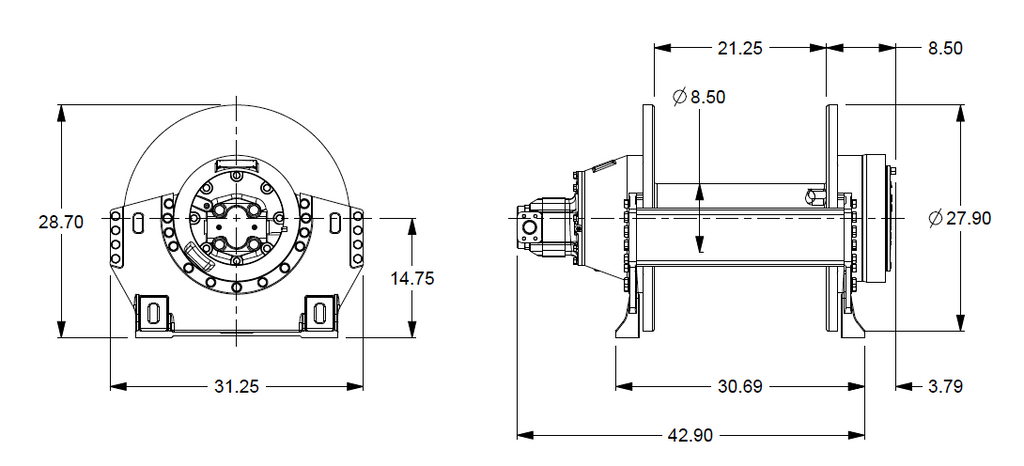

8.5" Barrel x 22.0" Length x 28.0" Flange
