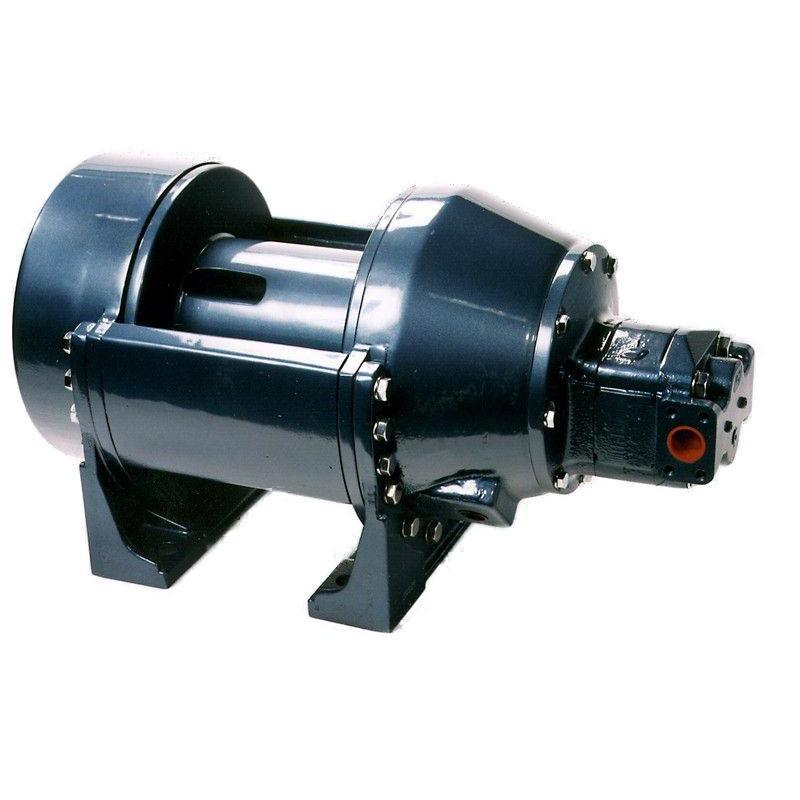

H18-3-101-1 : Pullmaster Planetary Hydraulic Winch, Rapid Reverse, 18,000lb Bare Drum Pull, Auto Brake, CW, 76GPM Motor, 8.5" Barrel x 10.0" Length x 15.5" Flange

Pull MasterSKU: 82001
12-14 Weeks

Price:
Sale price$18,808.99

Product Details

Special Message Automatic brake, internal circulation flow
Data Sheet

Download Datasheet

Usually Ships Within 12-14 Weeks
Factory Location Surrey, BC, Canada
Solid Model

Click here to download

Service Manual Download

Click here to download

Service Manual Click here to download
Rotation Clockwise
Nominal Capacity 332ft
Hydraulic Motor Pressure 2300psi
Drum Torque 83,250 in-lb
Drum Speed 50.5 RPM
Country of Manufacture Canada

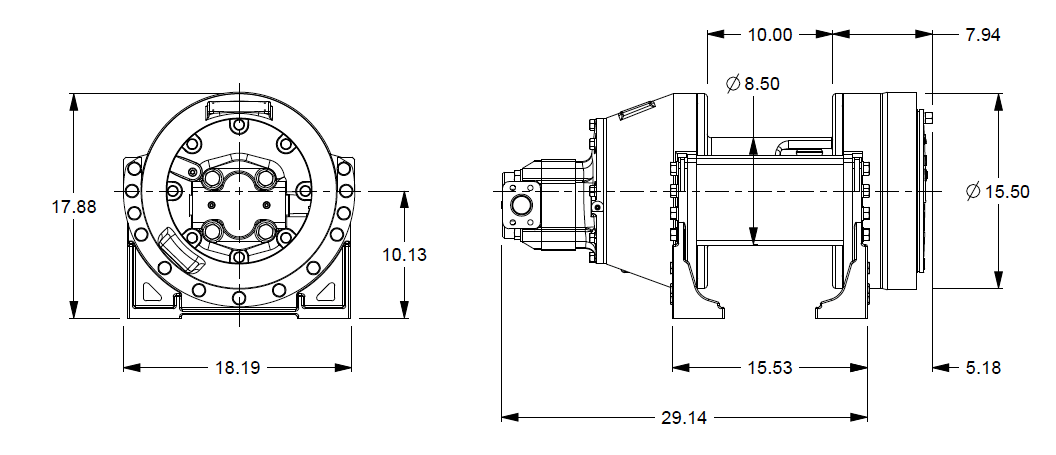

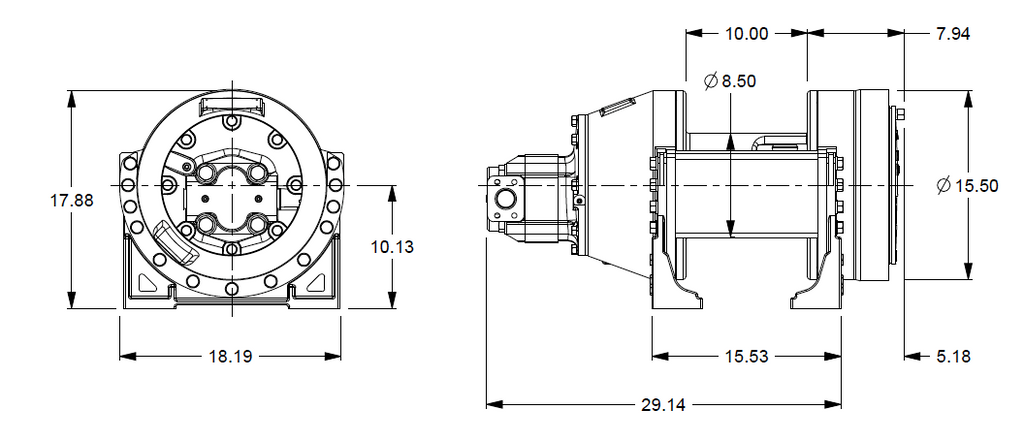

Height 17.88
Length 34.32
Width 18.19
Weight 776
Drum Flange Diameter 15.5"
Brake Option Automatic Brake
Drum Length 10"
Drum Rotation Counterclockwise

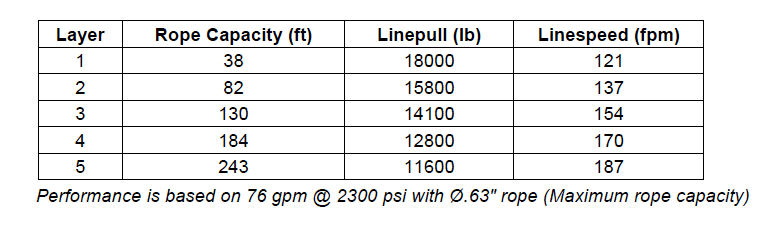

Max Bare Drum Line Pull 18,000
Max Full Drum Line Pull 11,288
Max Bare Drum Line Speed 122
Max Full Drum Line Pull 11,288
Max Full Drum Line Speed 195
Safety Note PullMaster products are not to be used to lift, hoist or move people. If your task involves lifting or moving people, you MUST use the proper equipment; not a PullMaster product. Wire rope anchors on winches are not designed to hold the rated load of the winch. You must keep at least five (5) wraps of wire rope on the drum to insure the wire rope doesnÕt come loose. Stay clear of suspended loads and of wire rope under tension. A broken wire rope or dropped load can cause serious injury or death. Make sure that all equipment, including the winch and wire rope, is maintained properly. Avoid shock loads. This type of load imposes a strain on a winch many times the actual weight of the load and can cause failure of the wire rope or of the winch. Winch operators must be trained in the proper, safe operations of the winch. The hydraulic system should use only high quality hydraulic oils from reputable suppliers. These oils should contain additives to prevent foaming and oxidation in the system. All winch systems should be equipped with a return line filter capable of filtering 10-micron particles from the system. Please contact OneHydraulics if you need assistance with fluid selection.

Description

The TWG Pullmaster Rapid Reverse planetary winches provide reverse speeds that are 4.5 times faster than forward speeds. In applications that include lighter loads or swing functions, Pullmaster's Rapid Reverse winches create less resistance and increase cycle times and productivity. Ideal for a variety of applications including fishing, dredging and marine applications.

18,000 lbs. capacity rapid reverse winch storing 1760 ft. of 3/4” dia. rope

* With Auto Brake

* Clockwise Rotation ( Direction of drum rotation viewed from motor when pulling or lifting)

* Int Circulation Flow

* 76 GPM Motor, 18,000 lb capacity

* 8.5" Barrel x 10.0" Length x 15.5" Flange
