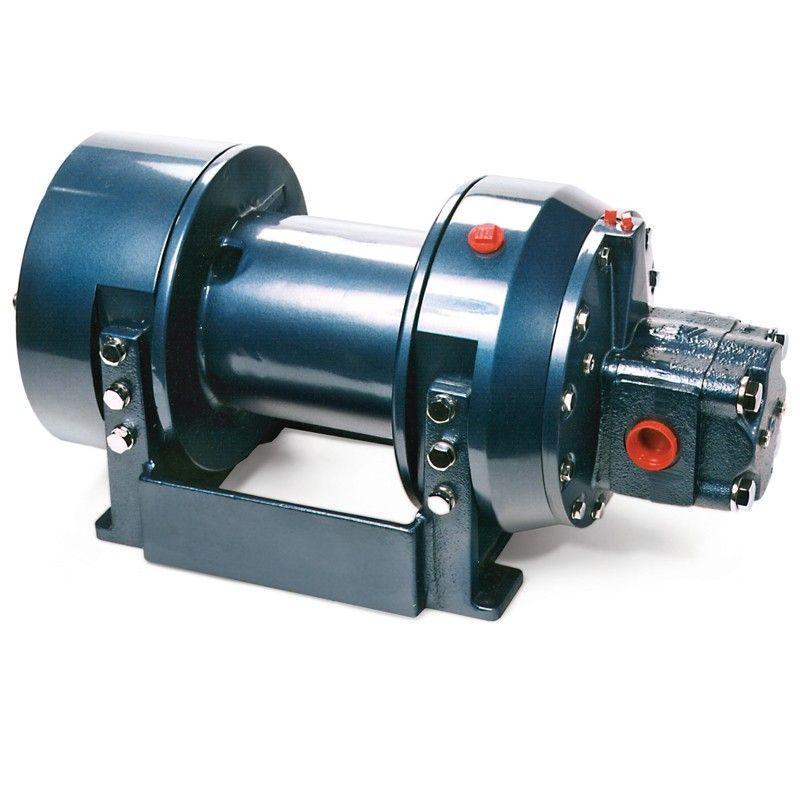

H12-3-97-5 : Pullmaster Planetary Hydraulic Winch, Rapid Reverse, 12,100lb Bare Drum Pull, Auto Brake, CW, 50GPM Motor, 7.63" Barrel x 10.0" Length x 16.63" Flange

Pull MasterSKU: 81006
11-12 Weeks

Price:
Sale price$14,231.90

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 11-12 Weeks
Factory Location Surrey, BC, Canada

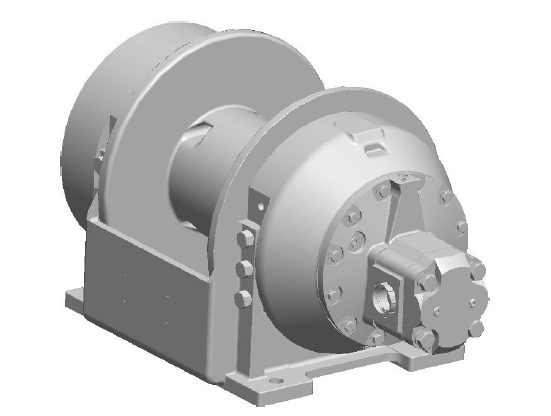

Solid Model

Click here to download

Service Manual Download

Click here to download

Service Manual Click here to download
Hydraulic Motor Pressure 2200psi
Drum Torque 50,000 in-lb
Drum Speed 48 RPM
Country of Manufacture Canada
Height 16.87
Length 30.2
Width 17.5
Weight 580

Description

The TWG Pullmaster Rapid Reverse planetary winches provide reverse speeds that are 4.5 times faster than forward speeds. In applications that include lighter loads or swing functions, Pullmaster's Rapid Reverse winches create less resistance and increase cycle times and productivity. Ideal for a variety of applications including fishing, dredging and marine applications.

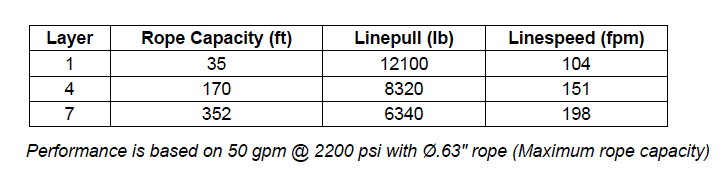

12,100 lbs. capacity rapid reverse winch storing 1070 ft. of 5/8” dia. rope

* With Auto Brake

* Clockwise Rotation ( Direction of drum rotation viewed from motor when pulling or lifting)

* Int Circulation Flow

50 GPM Motor, -12,100 lb capacity

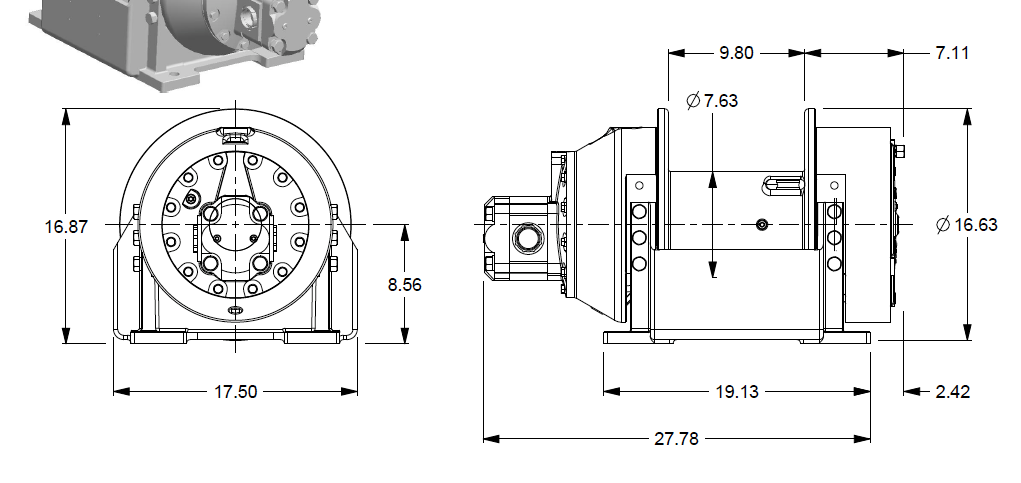

* 7.63" Barrel x 10.0" Length x 16.63" Flange
