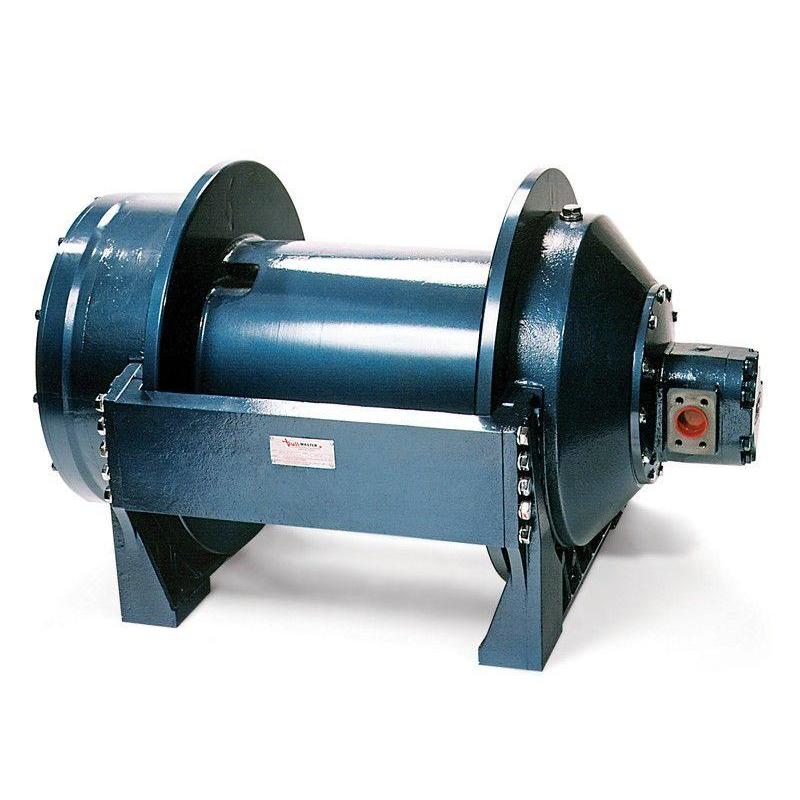

M50-7-207-1 : Pullmaster Planetary Hydraulic Winch, Equal Speed, 50,000lb Bare Drum Pull, Auto Brake, CW, 115GPM Motor with 1.5" C61 Ports, 14.0" Barrel x 14.0" Length x 23.75" Flange

Pull MasterSKU: 79123

18-20 Weeks

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 18-20 Weeks
Factory Location Surrey, BC, Canada

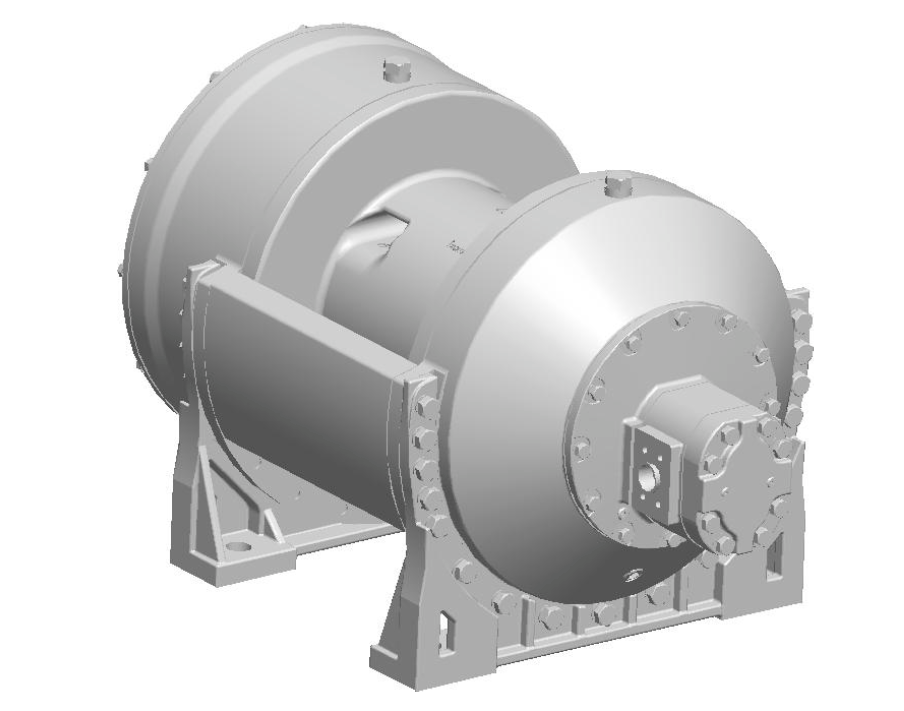

Solid Model

Click here to download

Service Manual Download

Click here to download

Service Manual Click here to download
Hydraulic Motor Pressure 2500psi
Drum Torque 381,250 in-lb
Drum Speed 17.4 RPM
Country of Manufacture Canada

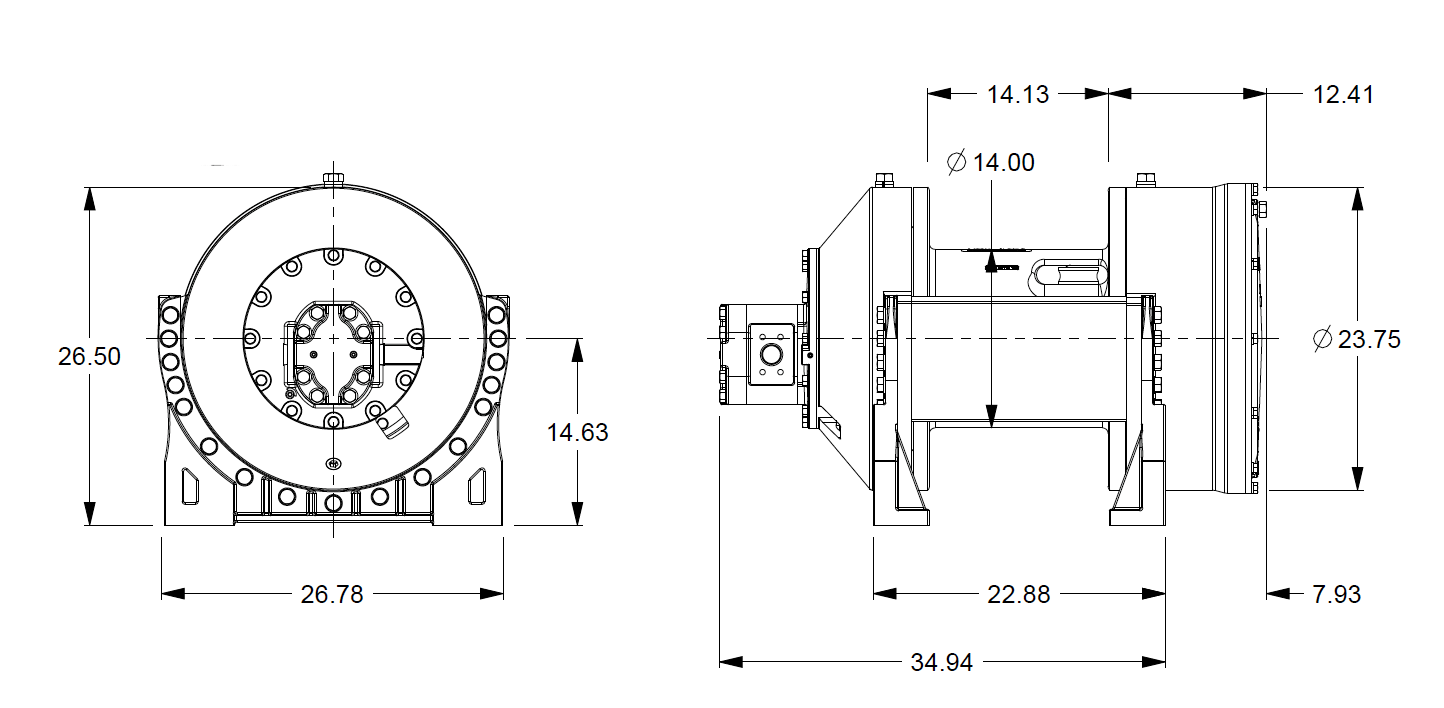

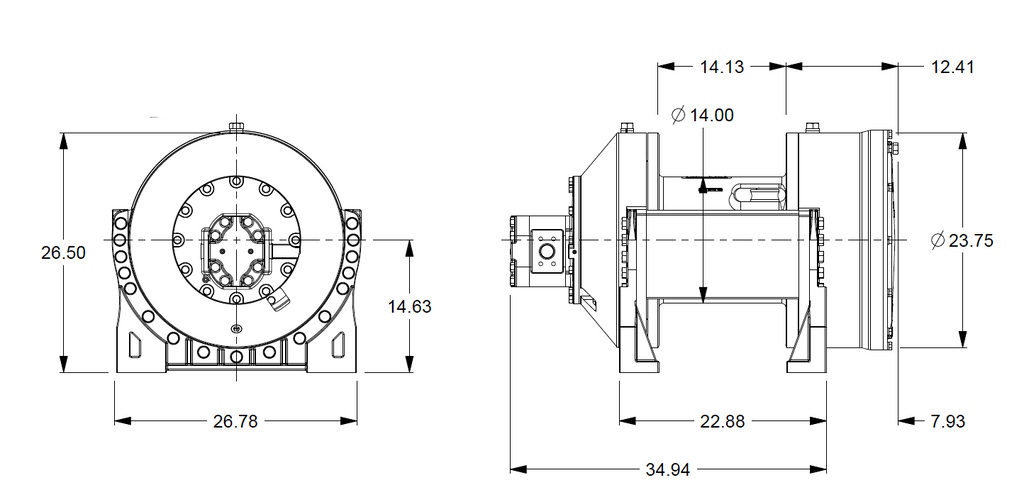

Height 26.5
Length 42.87
Width 26.78
Weight 2418
