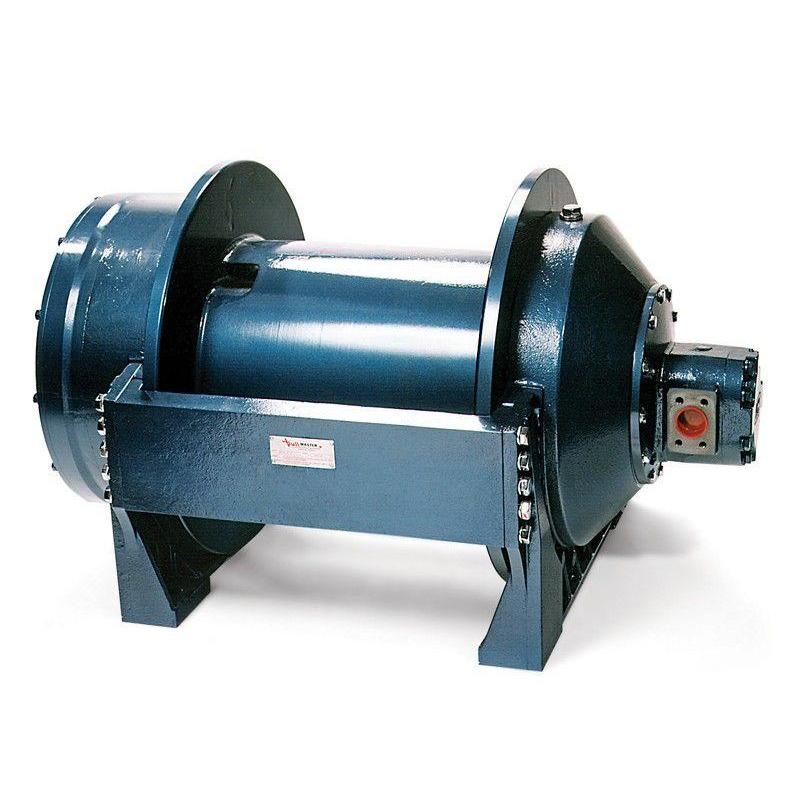

M50-3-86-1 : Pullmaster Planetary Hydraulic Winch, Equal Speed, 50,000lb Bare Drum Pull, Auto Brake, CW, 115GPM Motor, 14.0" Barrel x 14.0" Length x 23.75" Flange

Pull MasterSKU: 79106
18-20 Weeks

Price:
Sale price$55,389.40

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 18-20 Weeks
Factory Location Surrey, BC, Canada

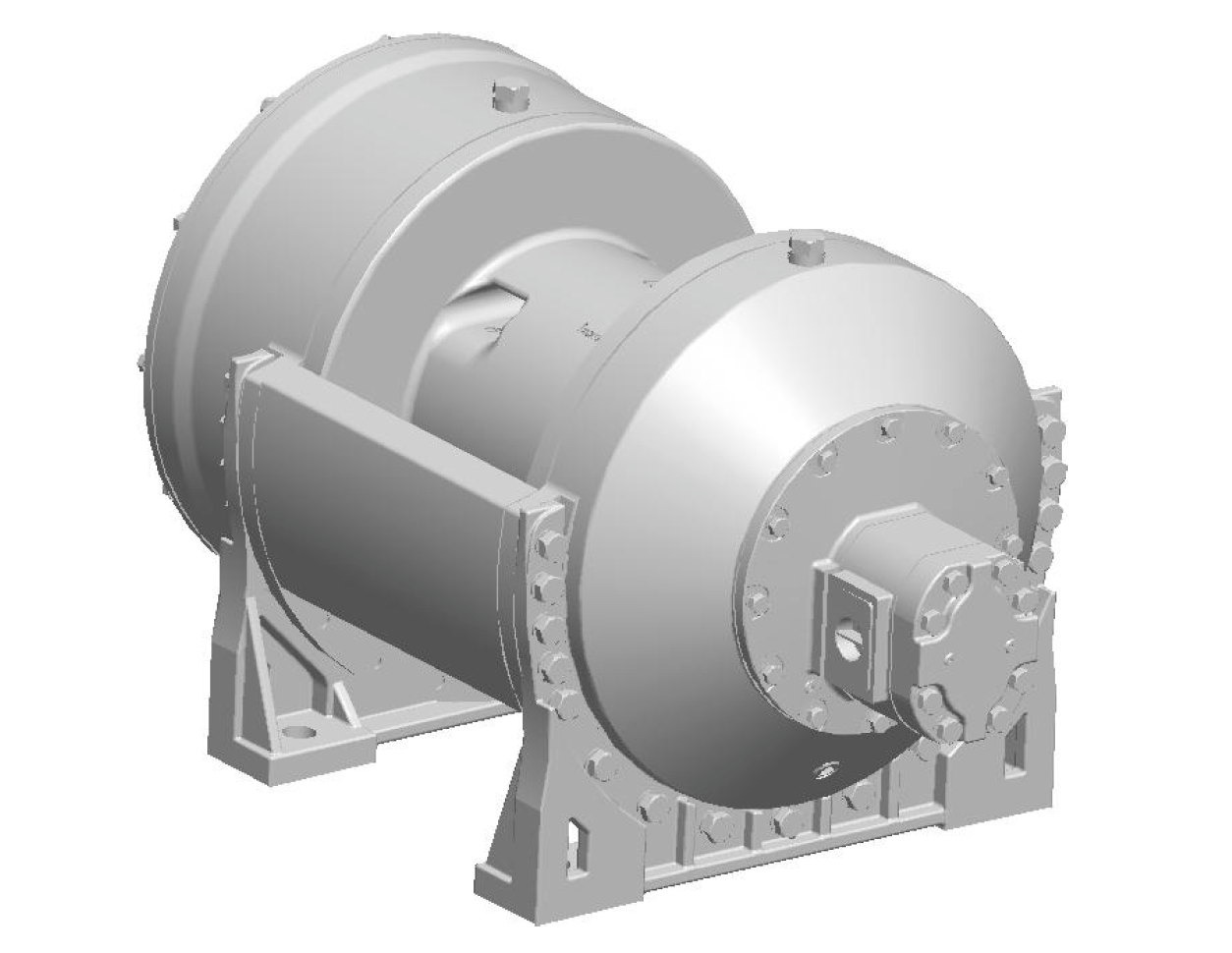

Solid Model

Click here to download

Service Manual Download

Click here to download

Service Manual Click here to download
Hydraulic Motor Pressure 2500psi
Drum Torque 381,250 in-lb
Drum Speed 17.4 RPM
Country of Manufacture Canada

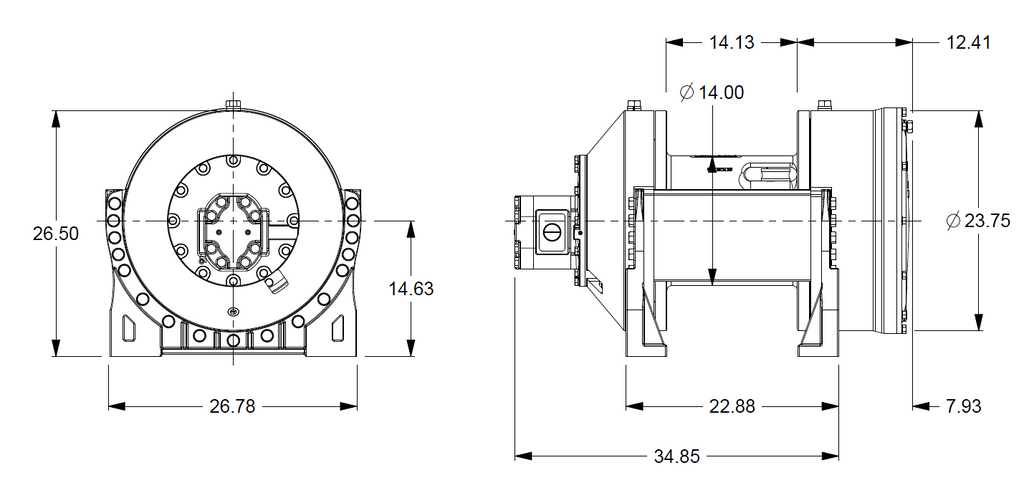

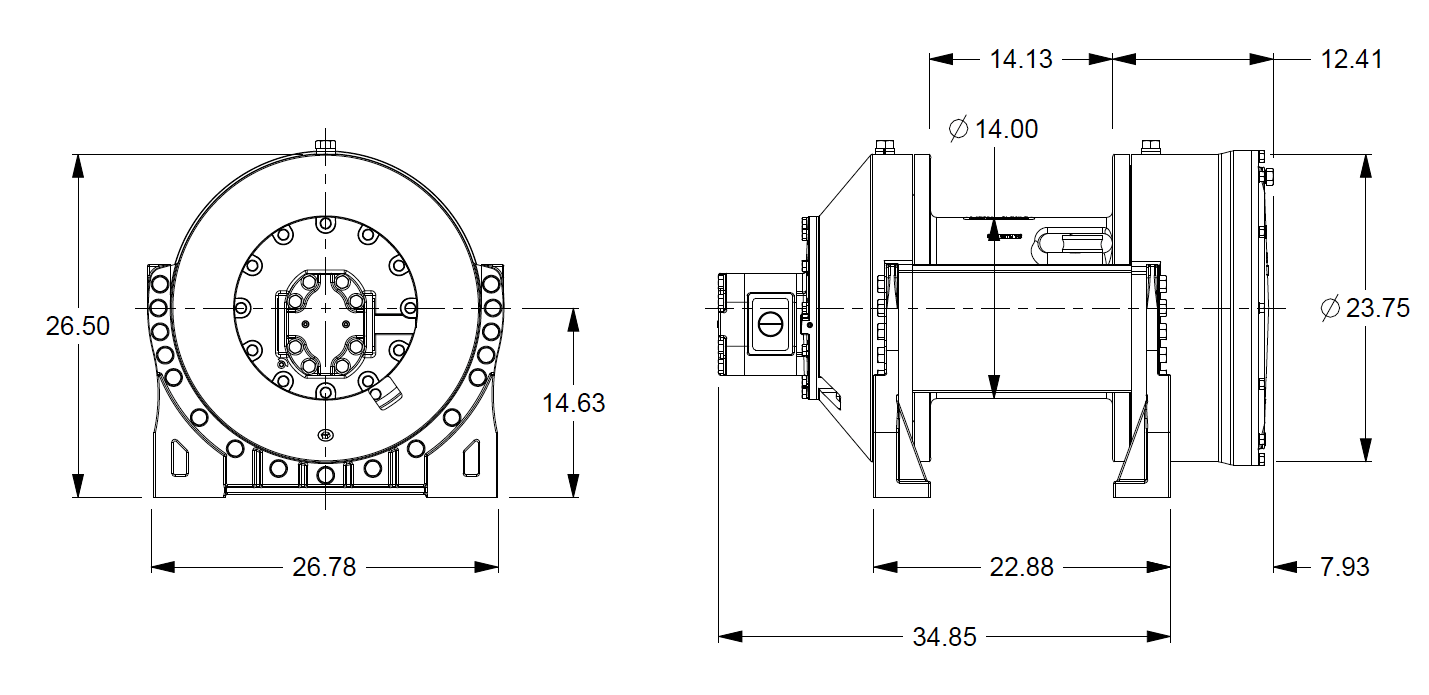

Height 26.50
Length 42.78
Width 26.78
Weight 2418

Description

The TWG Pullmaster Equal Speed planetary winches offer maximum torque in both directions of rotation and give operators maximum control over the load. In applications that require precise lifting and lowering and load suspension, Pullmaster Equal Speed winches deliver the most reliable performance in the industry. The M series offers exceptionally smooth lowering control of the maximum rated load in a step-less operation.

* 50,000lbs. capacity hoist storing 2590 ft. of 1” dia. rope

* With Auto Brake

* Clockwise Rotation ( Direction of drum rotation viewed from motor when pulling or lifting)

* Int Circulation Flow

* 115 GPM Motor, 50,000 lb capacity

* No Freespool

* 14.0" Barrel x 14.0" Length x 23.75" Flange
