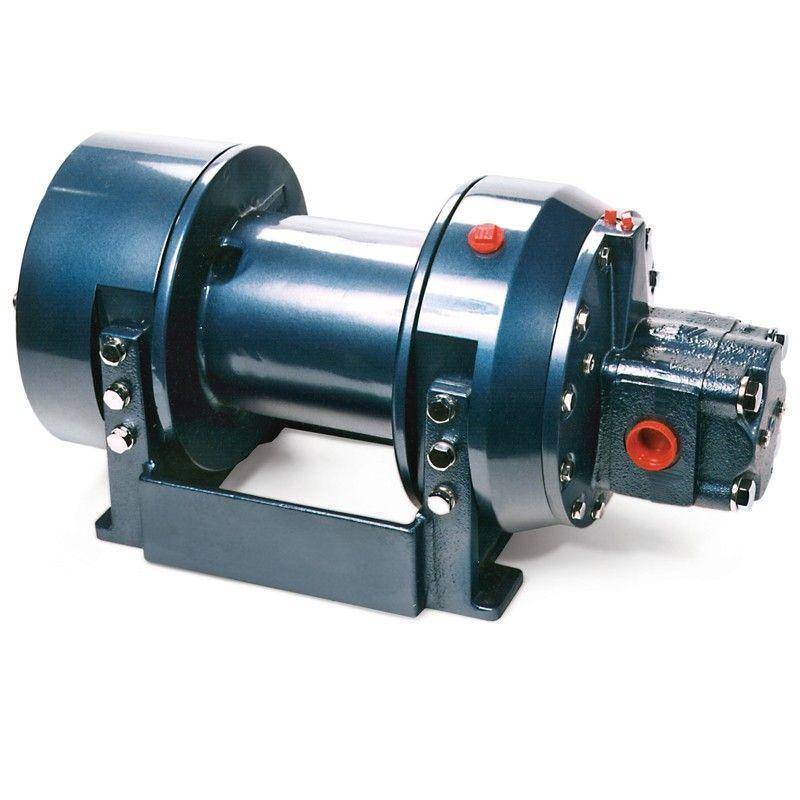

M12-8-107-1F : Pullmaster Planetary Hydraulic Winch, Equal Speed, 12,000lb Bare Drum Pull, Auto Brake, CW, Ext Brake Release, Upsized Motor, with Hydraulic Freespool, 7.63" Barrel x 10.0" Length x 14.63" Flange
Roll over image to zoom in Click on image to zoom
M12-8-107-1F : Pullmaster Planetary Hydraulic Winch, Equal Speed, 12,000lb Bare Drum Pull, Auto Brake, CW, Ext Brake Release, Upsized Motor, with Hydraulic Freespool, 7.63" Barrel x 10.0" Length x 14.63" Flange

M12-8-107-1F : Pullmaster Planetary Hydraulic Winch, Equal Speed, 12,000lb Bare Drum Pull, Auto Brake, CW, Ext Brake Release, Upsized Motor, with Hydraulic Freespool, 7.63" Barrel x 10.0" Length x 14.63" Flange

Pull MasterSKU: 76139
12-14 Weeks
Price:
$11,421.07

Product Details

Data Sheet Download Datasheet
Usually Ships Within 12-14 Weeks
Factory Location Surrey, BC, Canada
Service Manual Click here to download
Hydraulic Motor Pressure 2200psi
Drum Torque 50,000 in-lb
Drum Speed 48 RPM
Country of Manufacture United States
Height 18.56
Length 30.1
Width 21.47
Weight 550

Description

The TWG Pullmaster Equal Speed planetary winches offer maximum torque in both directions of rotation and give operators maximum control over the load. In applications that require precise lifting and lowering and load suspension, Pullmaster Equal Speed winches deliver the most reliable performance in the industry. The M series offers exceptionally smooth lowering control of the maximum rated load in a step-less operation. Hydraulic Free Spool is mechanism that permits the wire rope to be pulled off the cable drum by hand.

* 12,000lbs. capacity equal speed winch storing 1070 ft. of 5/8” dia. rope

* With Auto Brake

* Clockwise Rotation ( Direction of drum rotation viewed from motor when pulling or lifting)

* Ext Circulation Flow, Ext Brake Release

* 50 GPM Motor, 12,000 lb capacity

* With Hydraulic Freespool

* 7.63" Barrel x 10.0" Length x 14.63" Flange
