Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 11-12 Weeks |
| Factory Location | Surrey, BC, Canada |

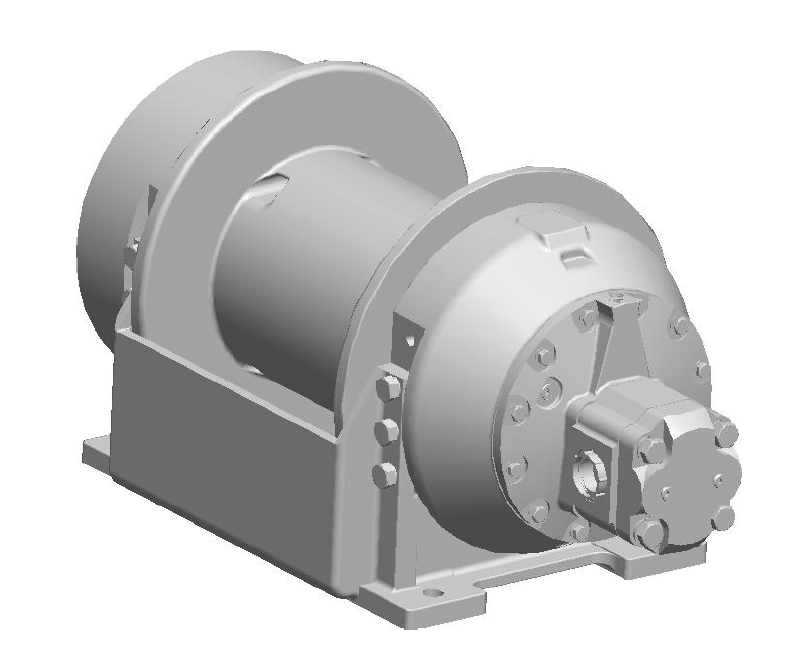

| Solid Model | |
| Service Manual Download | |
| Service Manual | Click here to download |
| Hydraulic Motor Pressure | 2200psi |
| Drum Torque | 50,000 in-lb |
| Drum Speed | 48 RPM |
| Country of Manufacture | Canada |

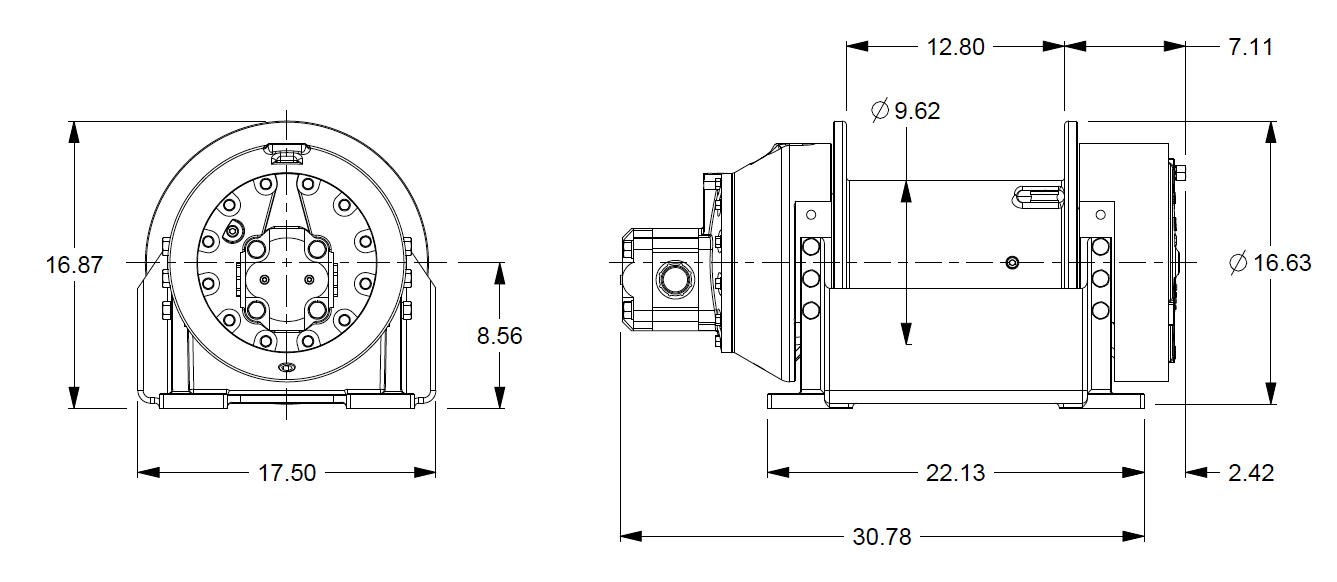

| Height | 16.87 |
| Length | 33.2 |
| Width | 17.5 |
| Weight | 736 |
Description

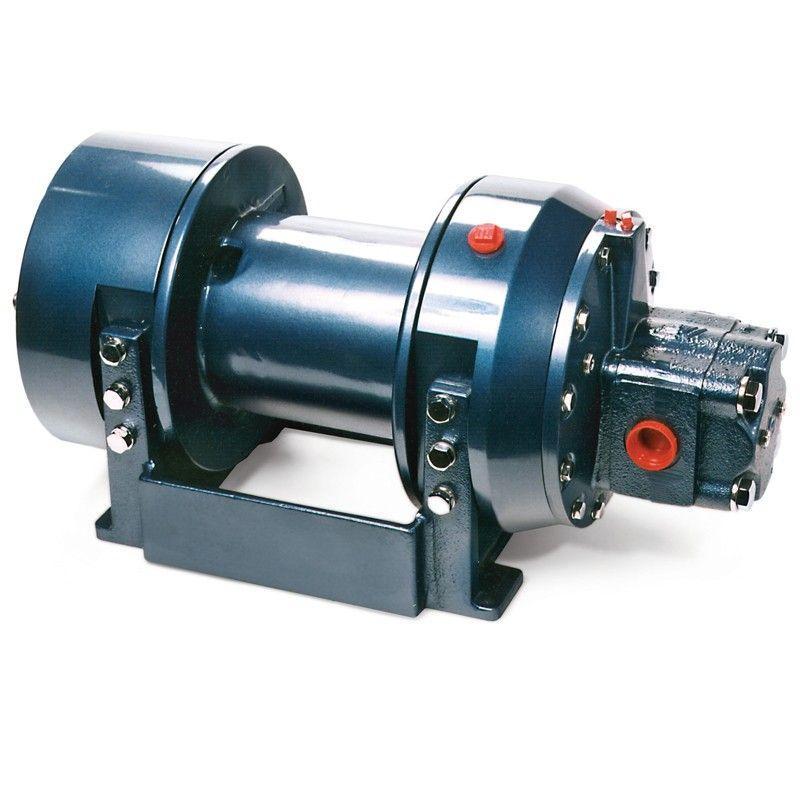

The TWG Pullmaster Equal Speed planetary winches offer maximum torque in both directions of rotation and give operators maximum control over the load. In applications that require precise lifting and lowering and load suspension, Pullmaster Equal Speed winches deliver the most reliable performance in the industry. The M series offers exceptionally smooth lowering control of the maximum rated load in a step-less operation.

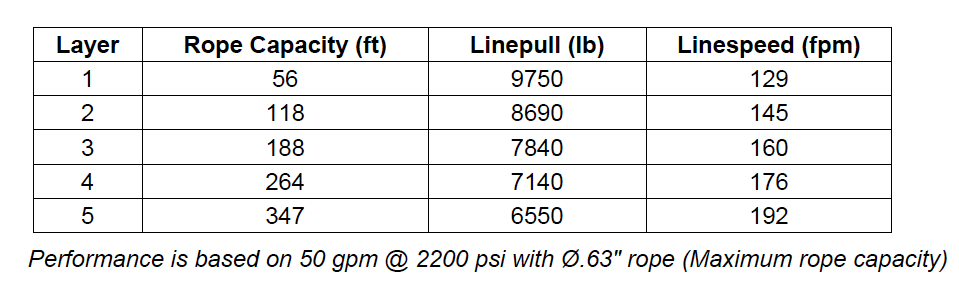

* 9,750 lbs. capacity equal speed winch storing 1070 ft. of 5/8” dia. rope
* With Auto Brake
* Counter-Clockwise Rotation ( Direction of drum rotation viewed from motor when pulling or lifting)
* Int Circulation Flow, Ext Brake Release
* 50 GPM Motor, 9,750 lb capacity
* No Freespool
* 9.63" Barrel x 13.0" Length x 16.63" Flange
