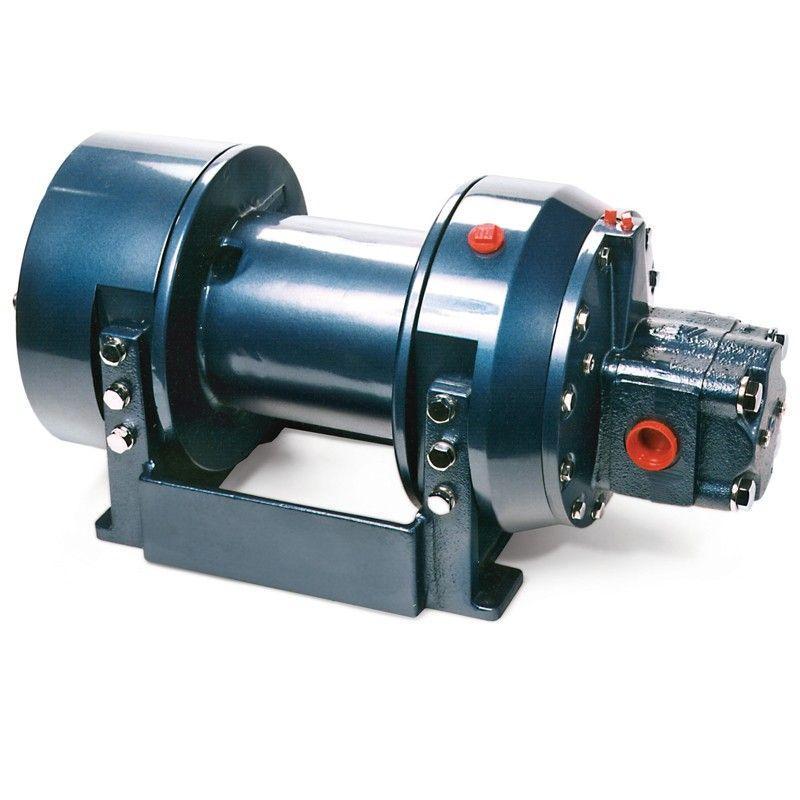

M12-3-97-5 : Pullmaster Planetary Hydraulic Winch, Equal Speed, 12,000lb Bare Drum Pull, Auto Brake, CW, 50GPM Motor, 7.63" Barrel x 10.0" Length x 16.63" Flange

Pull MasterSKU: 76008
11-12 Weeks

Price:
Sale price$13,369.99

Product Details

Special Message Automatic brake, internal circulation flow
Data Sheet

Download Datasheet

Usually Ships Within 11-12 Weeks
Factory Location Surrey, BC, Canada

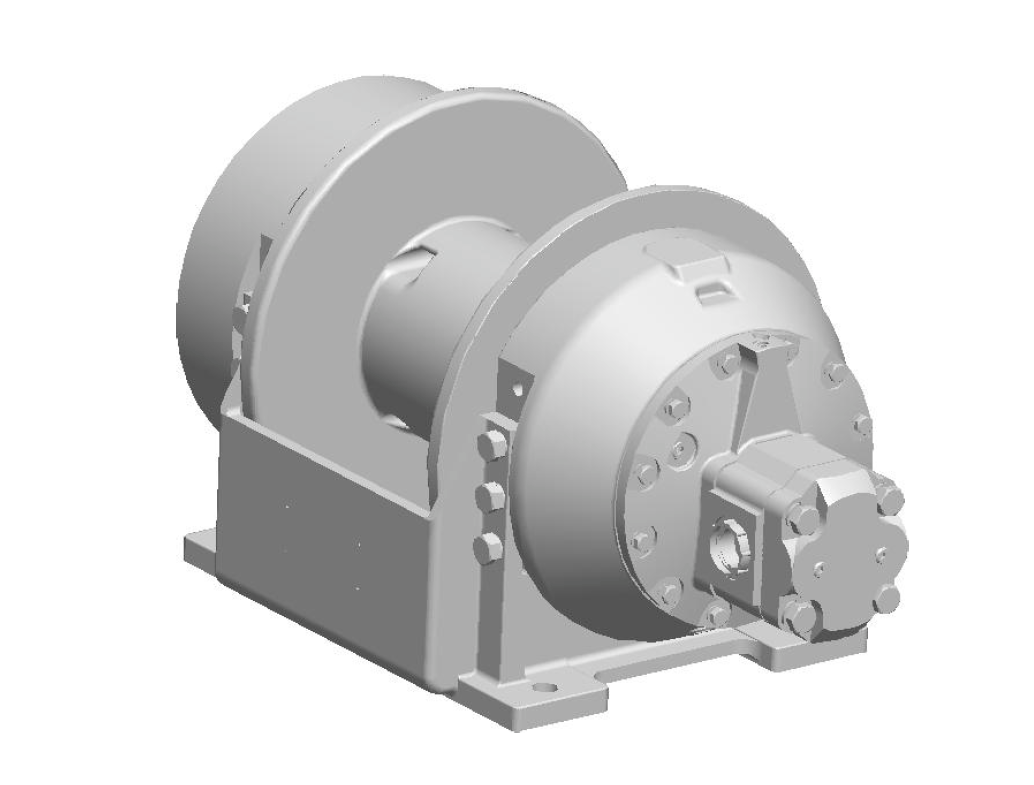

Solid Model

Click here to download

Service Manual Download

Click here to download

Service Manual Click here to download
Rotation Clockwise
Nominal Capacity 222ft
Hydraulic Motor Pressure 2200psi
Drum Torque 50,000 in-lb
Drum Speed 48 RPM
Country of Manufacture Canada

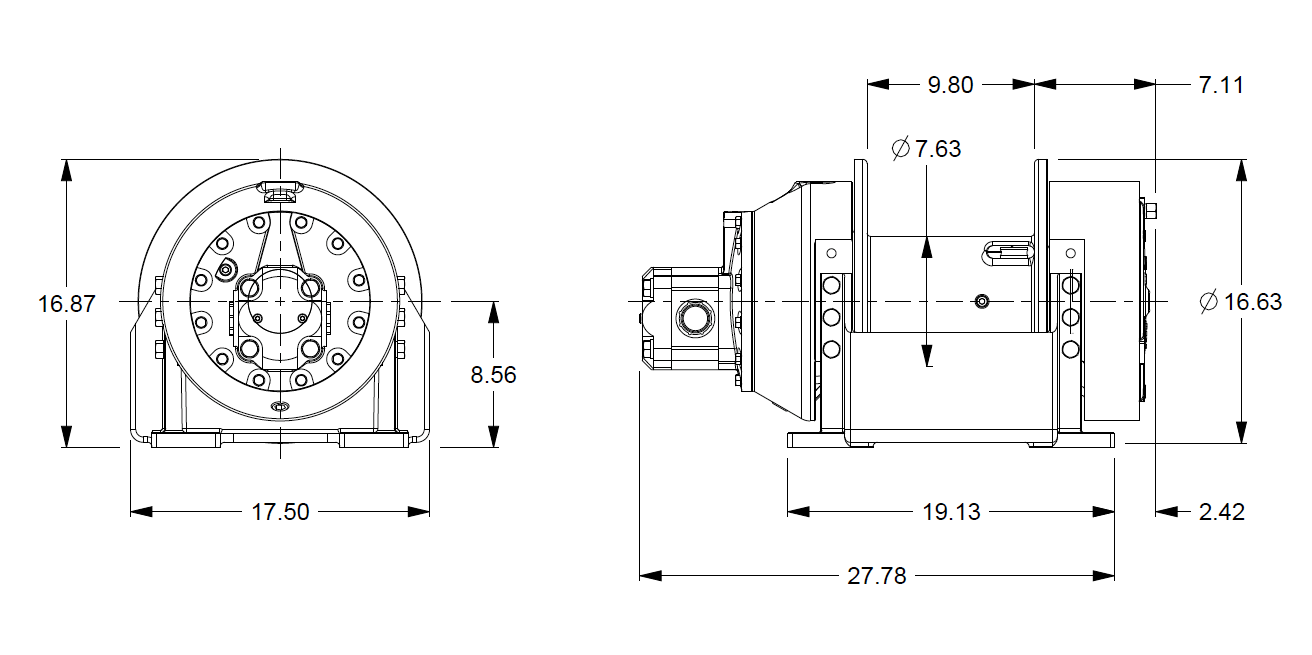

Height 16.87
Length 30.2
Width 17.50
Weight 579
Drum Flange Diameter 16.6"
Brake Option Automatic Brake
Drum Length 10"
Drum Rotation Clockwise

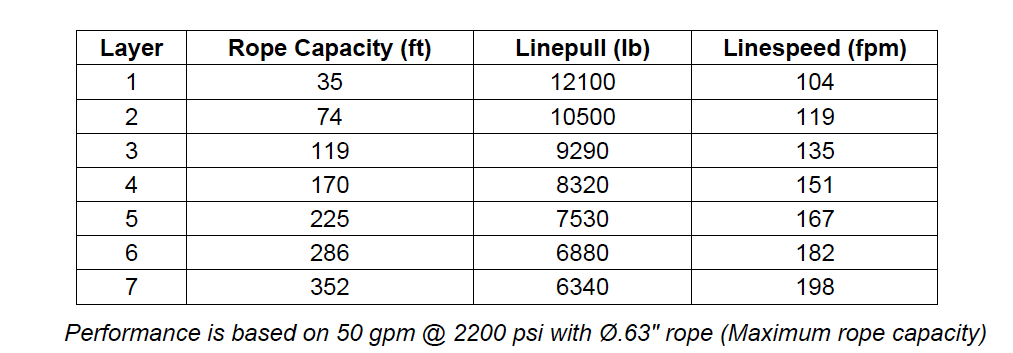

Max Bare Drum Line Pull 12,121
Max Full Drum Line Pull 7,143
Max Bare Drum Line Speed 104
Max Full Drum Line Pull 7,143
Max Full Drum Line Speed 176
Safety Note PullMaster products are not to be used to lift, hoist or move people. If your task involves lifting or moving people, you MUST use the proper equipment; not a PullMaster product. Wire rope anchors on winches are not designed to hold the rated load of the winch. You must keep at least five (5) wraps of wire rope on the drum to insure the wire rope doesnÕt come loose. Stay clear of suspended loads and of wire rope under tension. A broken wire rope or dropped load can cause serious injury or death. Make sure that all equipment, including the winch and wire rope, is maintained properly. Avoid shock loads. This type of load imposes a strain on a winch many times the actual weight of the load and can cause failure of the wire rope or of the winch. Winch operators must be trained in the proper, safe operations of the winch. The hydraulic system should use only high quality hydraulic oils from reputable suppliers. These oils should contain additives to prevent foaming and oxidation in the system. All winch systems should be equipped with a return line filter capable of filtering 10-micron particles from the system. Please contact OneHydraulics if you need assistance with fluid selection.

Description

The TWG Pullmaster Equal Speed planetary winches offer maximum torque in both directions of rotation and give operators maximum control over the load. In applications that require precise lifting and lowering and load suspension, Pullmaster Equal Speed winches deliver the most reliable performance in the industry. The M series offers exceptionally smooth lowering control of the maximum rated load in a step-less operation.

12,000 lbs. capacity equal speed winch storing 1070 ft. of 5/8” dia. rope

* With Auto Brake

* Clockwise Rotation ( Direction of drum rotation viewed from motor when pulling or lifting)

* Int Circulation Flow

50 GPM Motor, -12,000 lb capacity

* No Freespool

7.63" Barrel x 10.0" Length x 16.63" Flange
