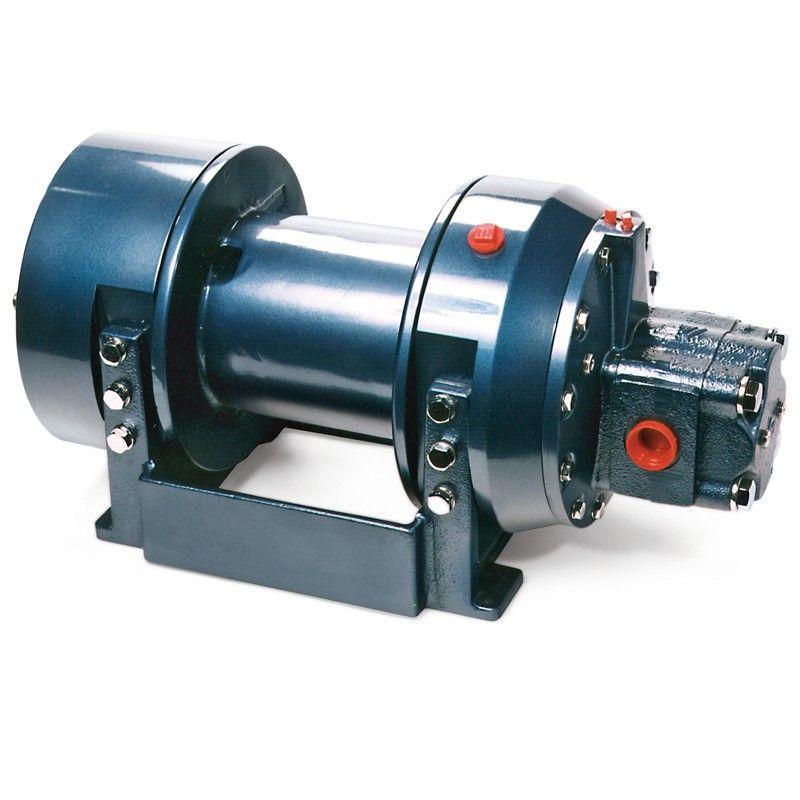

M12-3-97-1 : Pullmaster Planetary Hydraulic Winch, Equal Speed, 12,000lb Bare Drum Pull, Auto Brake, CW, 50GPM Motor, 7.63" Barrel x 10.0" Length x 14.63" Flange

Pull MasterSKU: 76001

11-12 Weeks

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 11-12 Weeks
Factory Location Surrey, BC, Canada

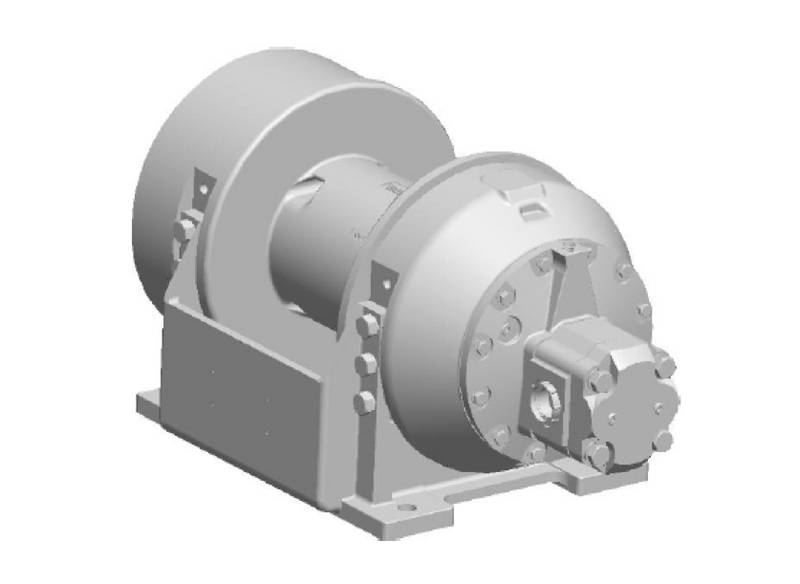

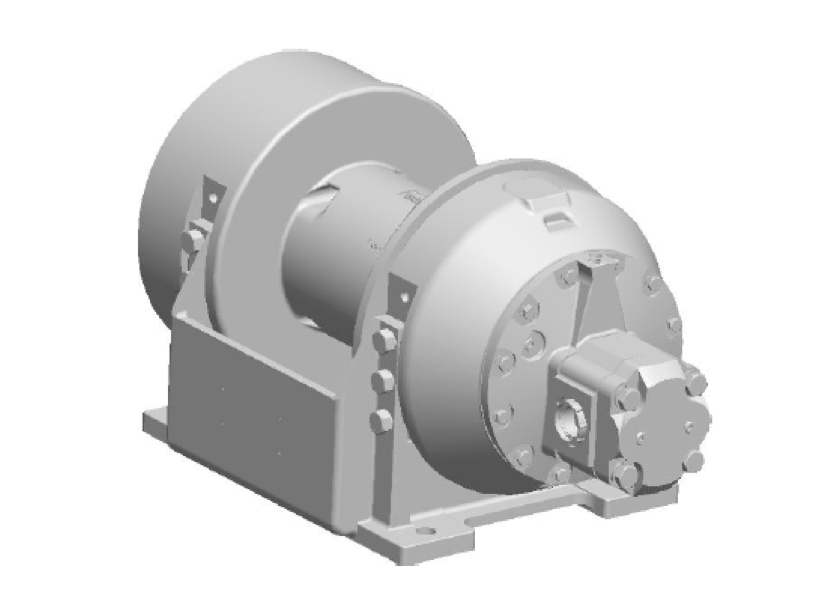

Solid Model

Click here to download

Service Manual Download

Click here to download

Service Manual Click here to download
Hydraulic Motor Pressure 2200psi
Drum Torque 50,000 in-lb
Drum Speed 48 RPM
Country of Manufacture Canada

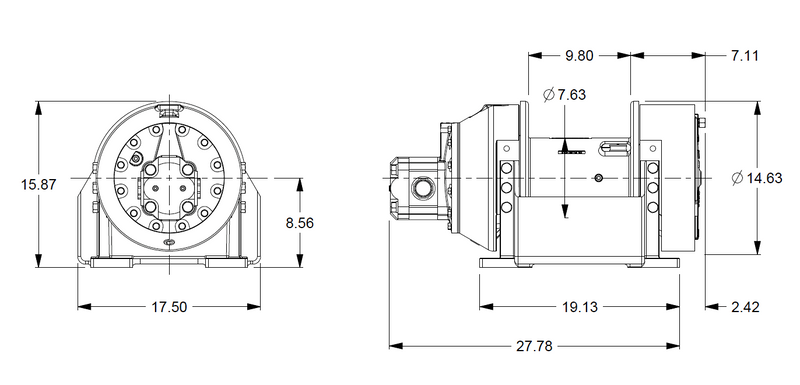

Height 15.87
Length 30.2
Width 17.50
Weight 559
