M5-3-230-1-B : Pullmaster Planetary Hydraulic Winch, Equal Speed, 6,000lb Bare Drum Pull, Auto Brake, CW, 14.5GPM Motor, 7.0" Barrel x 8.0" Length x 11.5" Flange

Pull MasterSKU: 73022
12-14 Weeks

Price:
Sale price$8,684.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 12-14 Weeks
Factory Location Surrey, BC, Canada

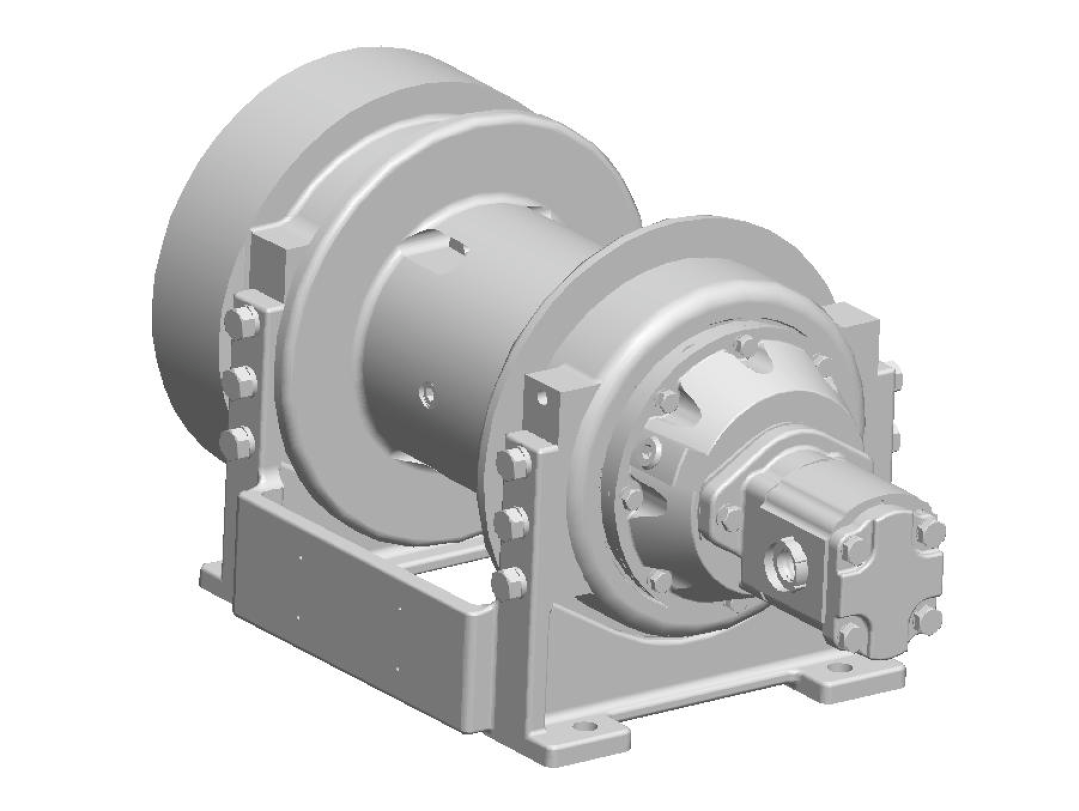

Solid Model

Click here to download

Service Manual Download

Click here to download

Service Manual Click here to download
Nominal Capacity 152ft
Hydraulic Motor Pressure 2000psi
Drum Torque 22,500 in-lb
Drum Speed 35 RPM
Country of Manufacture Canada

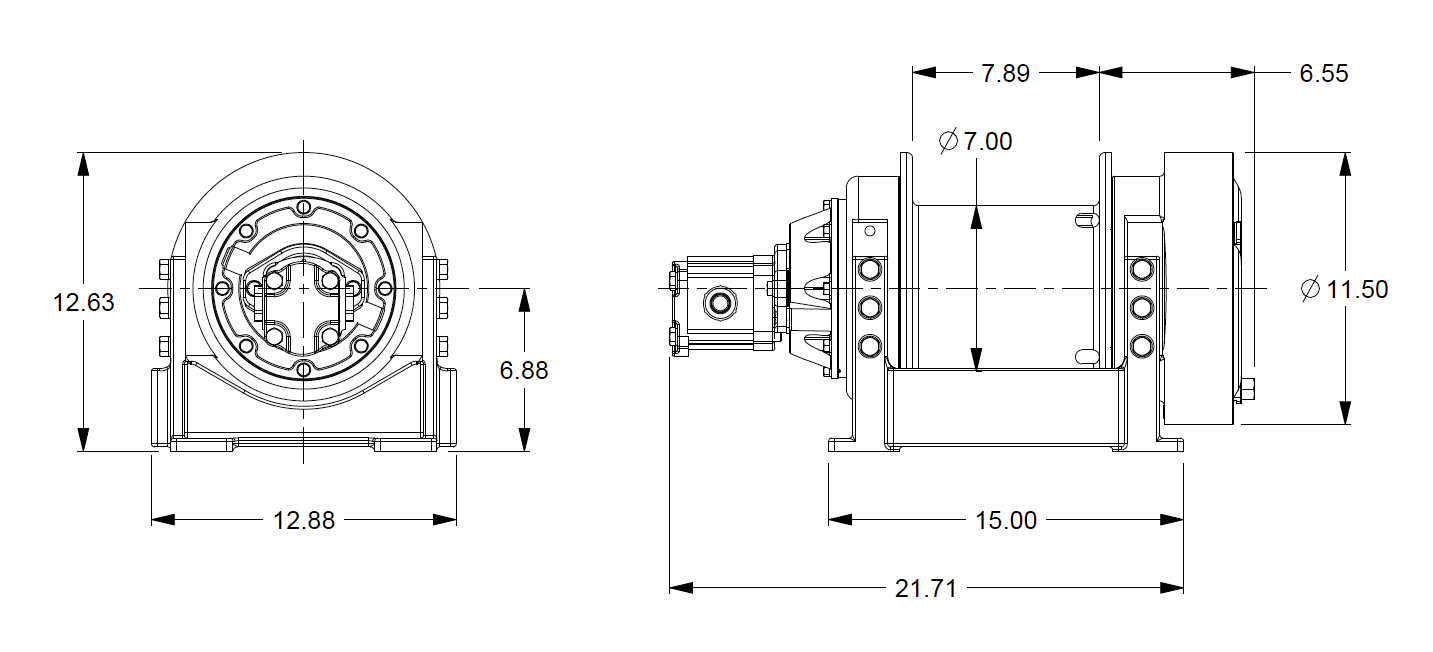

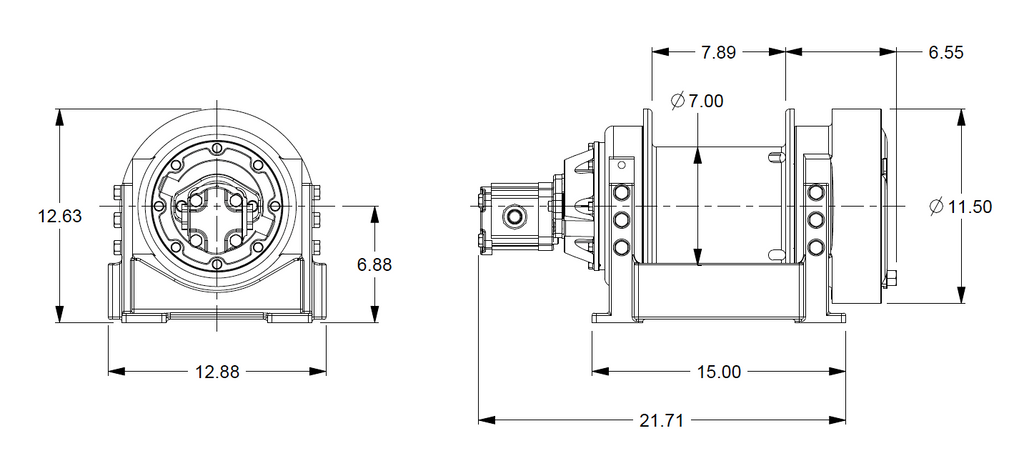

Height 12.63
Length 28.26
Width 12.88
Weight 255
Drum Flange Diameter 11.5"
Brake Option Automatic Brake
Drum Length 8"
Drum Rotation Counterclockwide

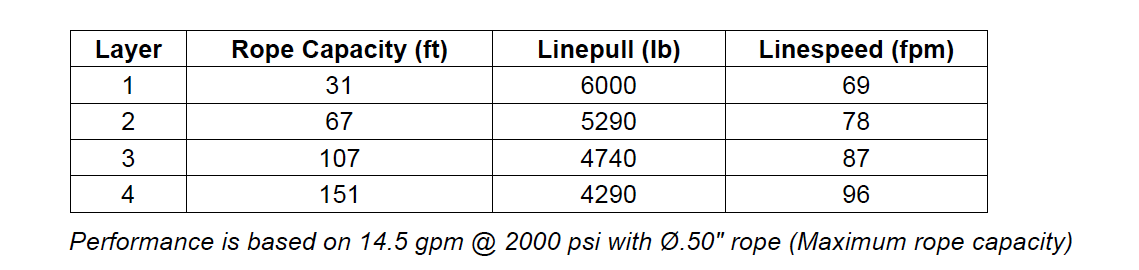

Max Bare Drum Line Pull 6,000
Max Full Drum Line Pull 4,091
Max Bare Drum Line Speed 69
Max Full Drum Line Pull 4,091
Max Full Drum Line Speed 101

Description

The TWG Pullmaster Equal Speed planetary winches offer maximum torque in both directions of rotation and give operators maximum control over the load. In applications that require precise lifting and lowering and load suspension, Pullmaster Equal Speed winches deliver the most reliable performance in the industry. The M series offers exceptionally smooth lowering control of the maximum rated load in a step-less operation.

* 6,000lbs. capacity hoist storing 152 ft. of 1/2” dia. rope

* With Auto Brake

* Clockwise Rotation ( Direction of drum rotation viewed from motor when pulling or lifting)

* Int Circulation Flow

* 14.5 GPM Motor, 6,000 lb capacity

* No Freespool

* 7.0" Barrel x 8.0" Length x 11.5" Flange
