Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | 90-Degrees |
| Pressure Rating | 5000 |
| Country of Manufacture | India |
| Side 1 Gender | FEMALE |
| Side 1 Size | 3/4-16 (-08) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 3/8-19 (-06) |
| Side 2 Type | BSPP |
Description

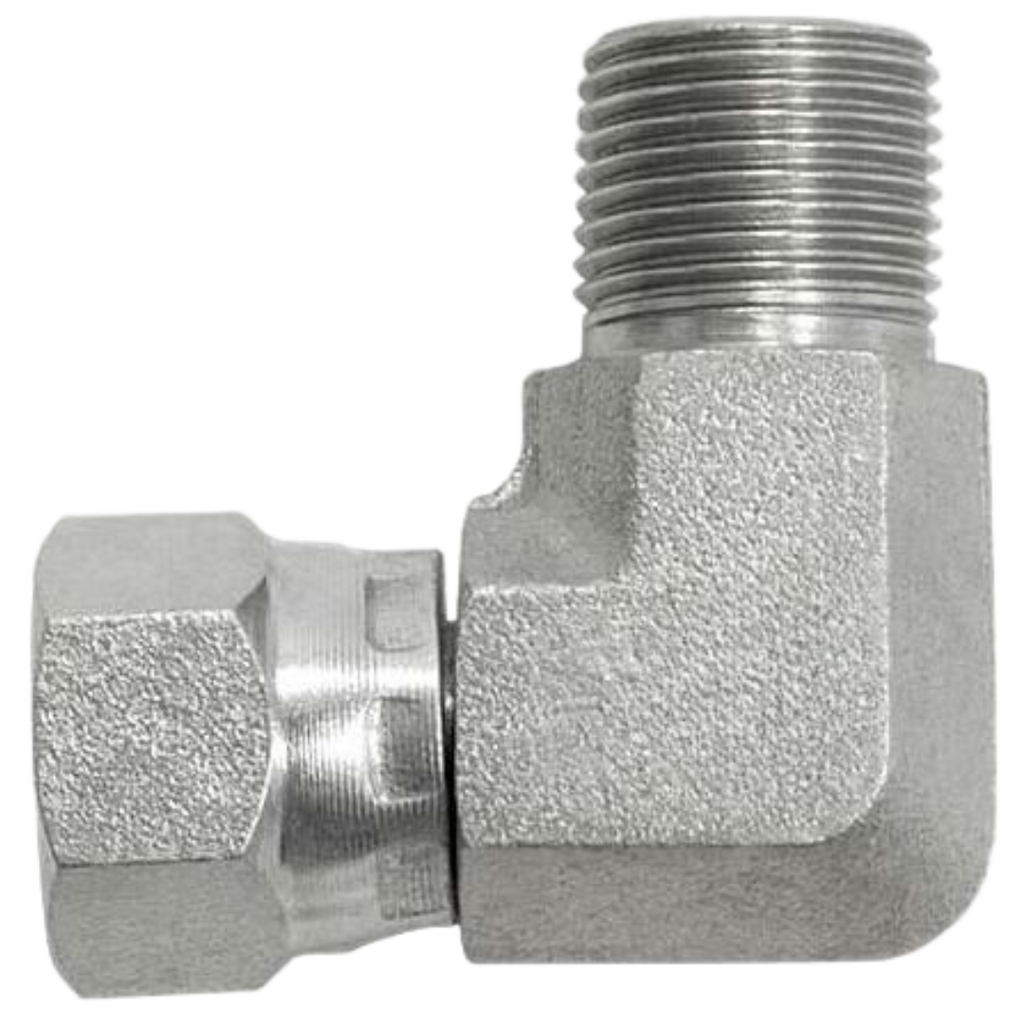

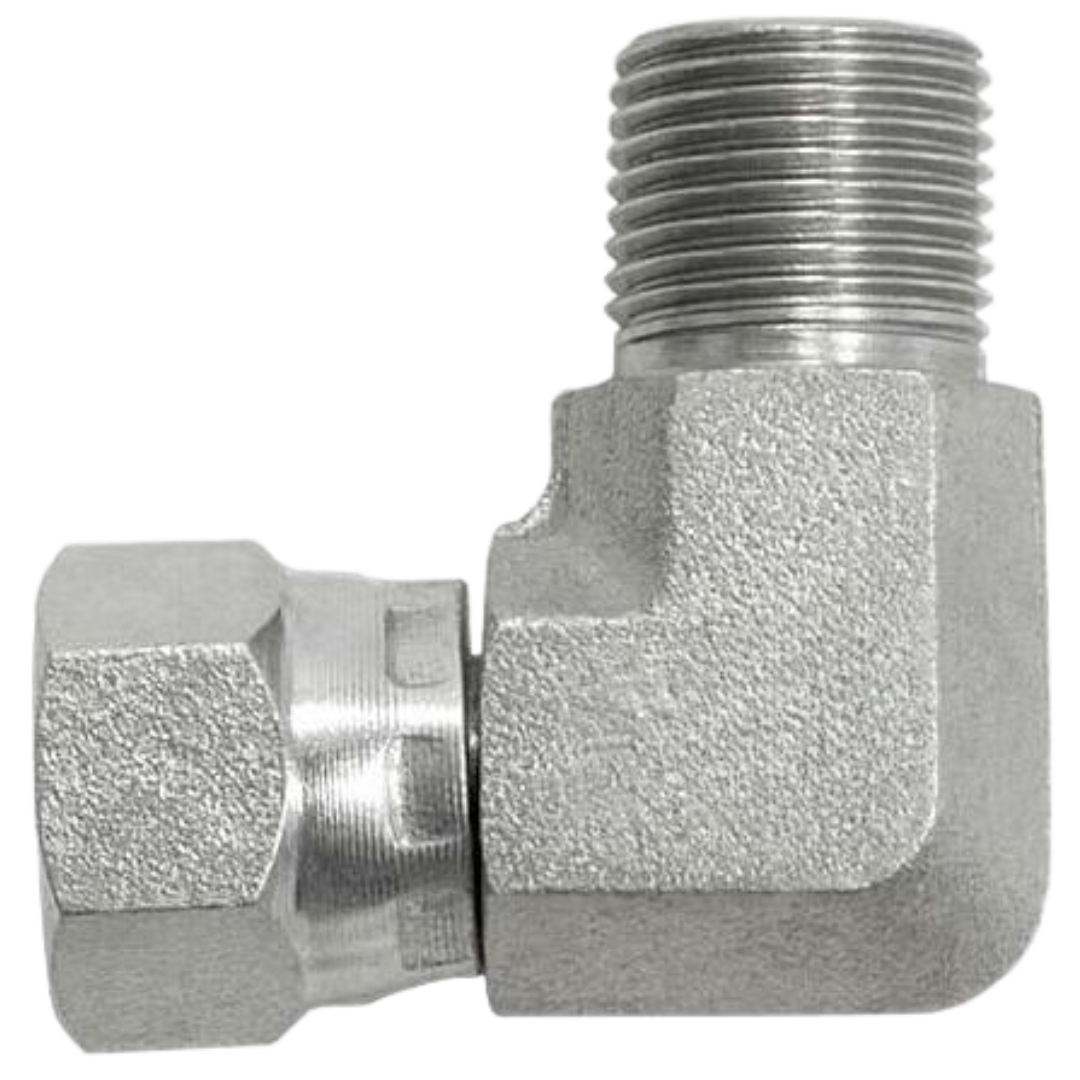

Our Series 7222 90-Degree Female JIC Swivel x Male BSPP adapters, made from durable carbon steel, are designed to provide secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle, making them ideal for tight or hard-to-reach spaces where fluid transfer is essential. The female JIC swivel side has a 37-degree flare seating surface that connects to male JIC fittings, while the male BSPP end provides a parallel-threaded connection. BSPP (British Standard Pipe Parallel) fittings offer a reliable seal, typically achieved through metal-to-metal contact or with the addition of an O-ring. These adapters are perfect for high-pressure fluid power applications, ensuring long-lasting performance, durability, and efficiency in industrial environments.
