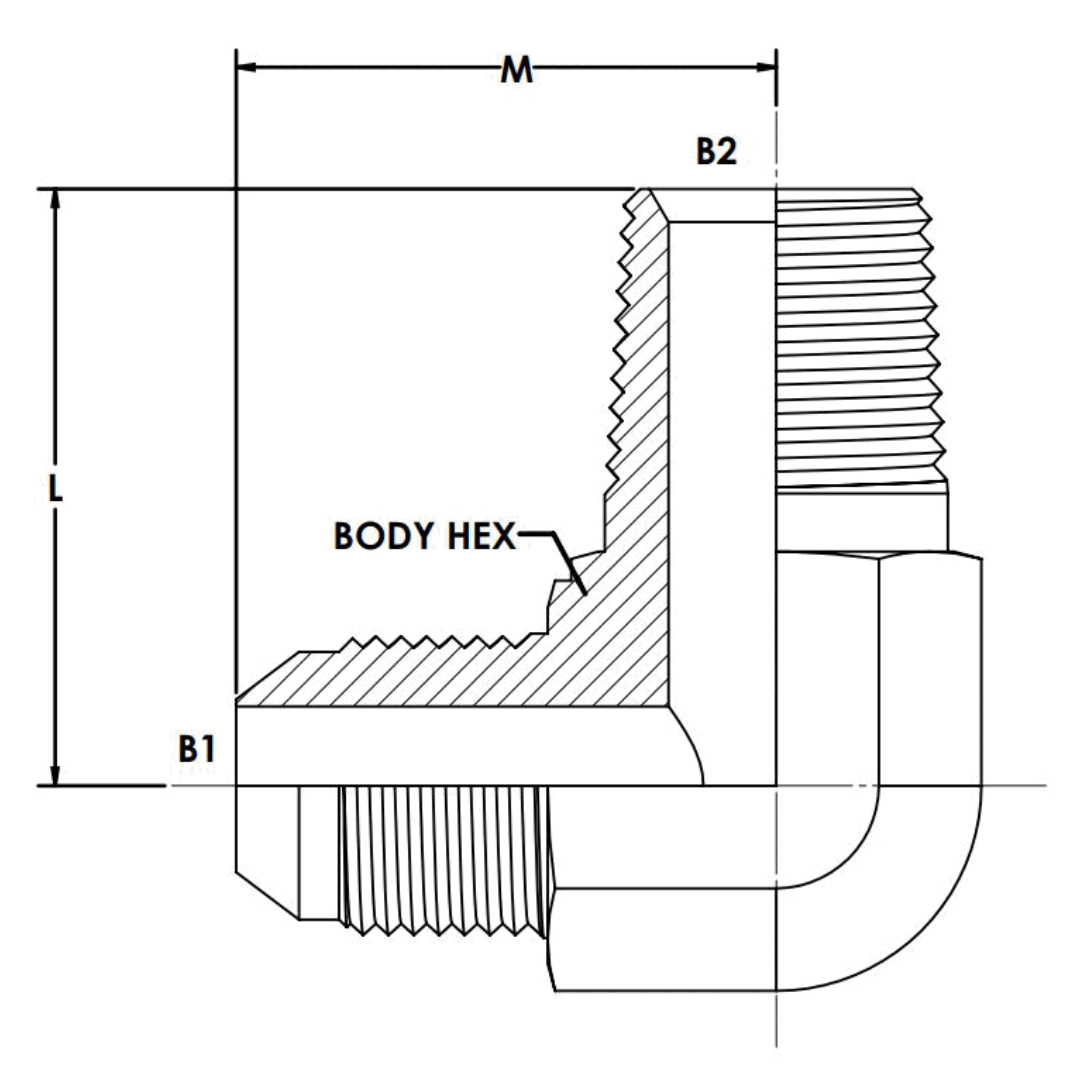

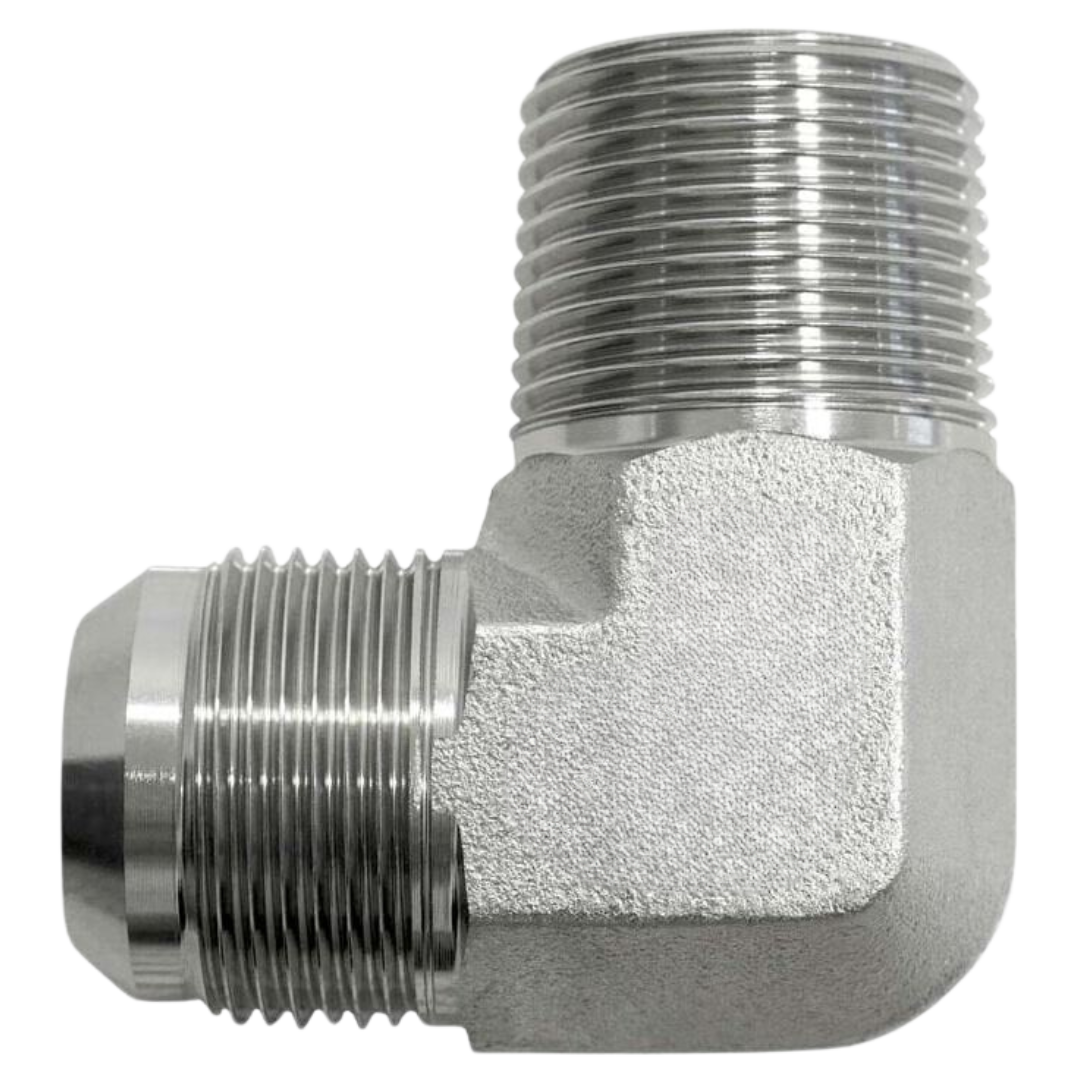

7200-12-08-FG : OneHydraulics 90-Degree Steel Adapter, 1-1/16-12 (-12) Male JIC x 1/2-14 (-08) Male BSPT, 5000psi

Our Series 7200 90-Degree Male JIC x Male BSPT Adapters, made from durable carbon steel, are designed to offer reliable and efficient connections in hydraulic systems, particularly where space constraints require a 90-degree angle. These adapters feature a male JIC (Joint Industry Council) connection on one end and a male BSPT (British Standard Pipe Tapered) connection on the other. The JIC side utilizes a 37-degree flare seating surface to create a secure mechanical seal, while the BSPT side uses tapered threads that form a leak-proof seal through thread deformation. Ideal for high-pressure fluid transfer applications, these adapters provide robust performance and durability in a variety of industrial and fluid power systems.
