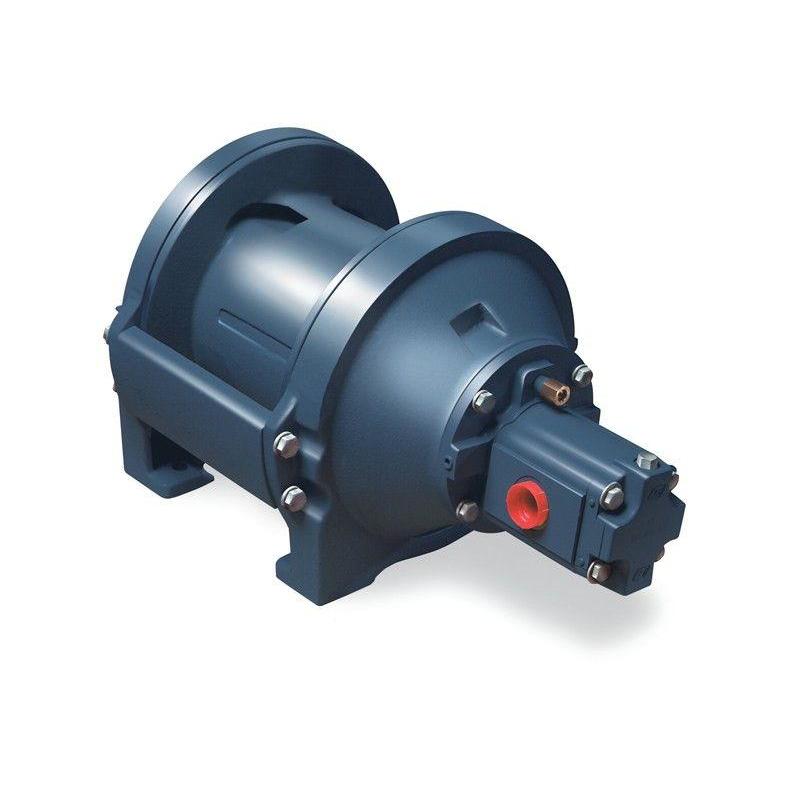

PL5-12-210-2 : Pullmaster Planetary Hydraulic Winch, Equal Speed, 4,500lb Bare Drum Pull, Auto Brake, CCW, 24GPM Motor, 7.38" Barrel x 6.56" length x 12.38" Flange

Pull MasterSKU: 71214
10-11 Weeks

Price:
Sale price$5,562.06

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 10-11 Weeks
Factory Location Surrey, BC, Canada
Solid Model

Click here to download

Service Manual Download

Click here to download

Service Manual Click here to download
Hydraulic Motor Pressure 2100psi
Drum Torque 17,578 in-lb
Drum Speed 66 RPM
Country of Manufacture Canada
Height 12.56
Length 18.82
Width 13.87
Weight 177

Description

The TWG Pullmaster Equal Speed planetary winches offer maximum torque in both directions of rotation and give operators maximum control over the load. In applications that require precise lifting and lowering and load suspension, Pullmaster Equal Speed winches deliver the most reliable performance in the industry.

* 4,500lbs. capacity hoist storing 239 ft. of 3/8” dia. rope

* With Auto Brake

* Counter-Clockwise Rotation ( Direction of drum rotation viewed from motor when pulling or lifting)

* Intravent

* 24 GPM Motor, 4,500 lb capacity

* No Freespool

* 7.38" Barrel x 6.56" length x 12.38" Flange
