Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | Straight |
| Country of Manufacture | India |
| Side 1 Gender | MALE |
| Side 1 Size | 1-1/16-12 (-12) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 1/2-14 (-08) |
| Side 2 Type | BSPP |
Description

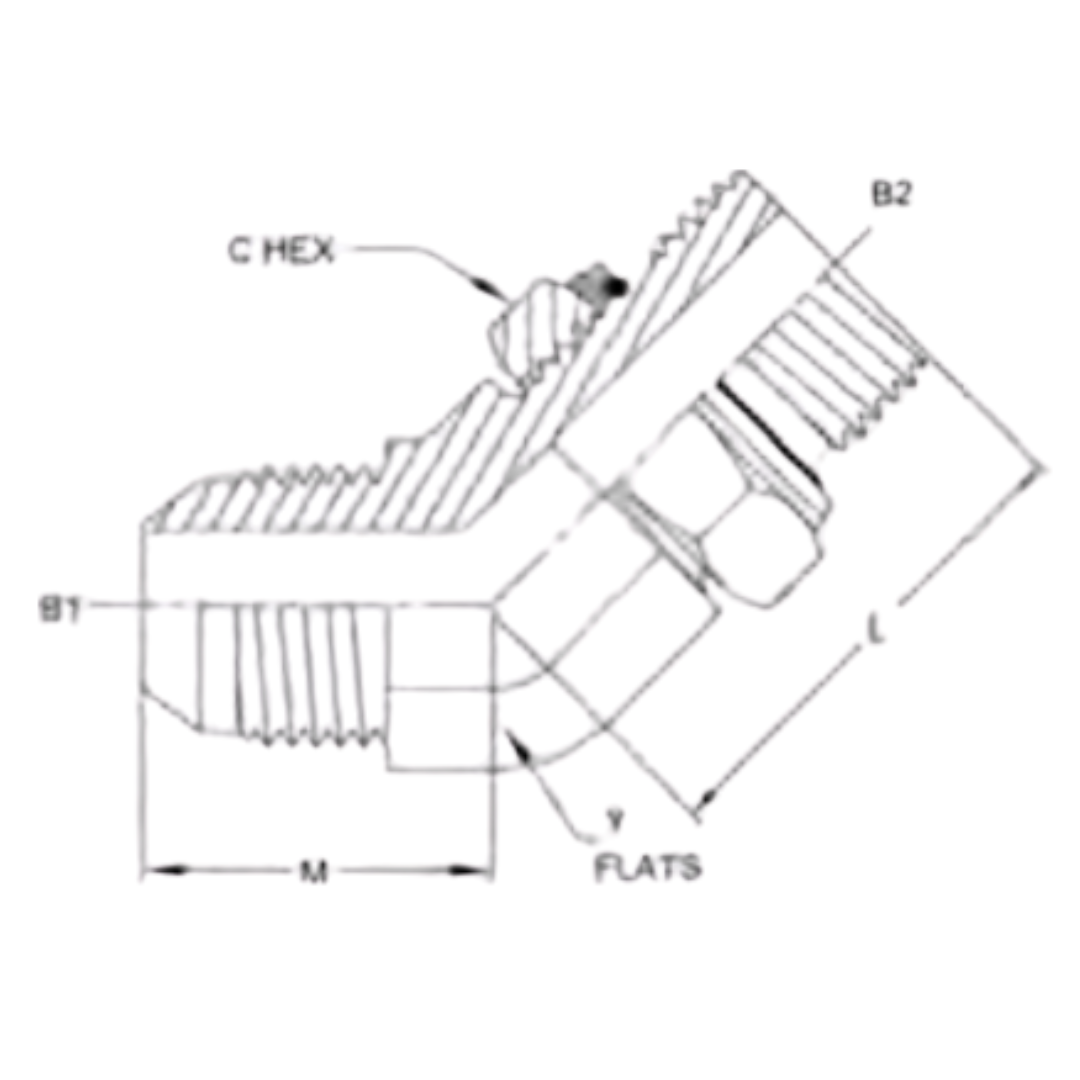

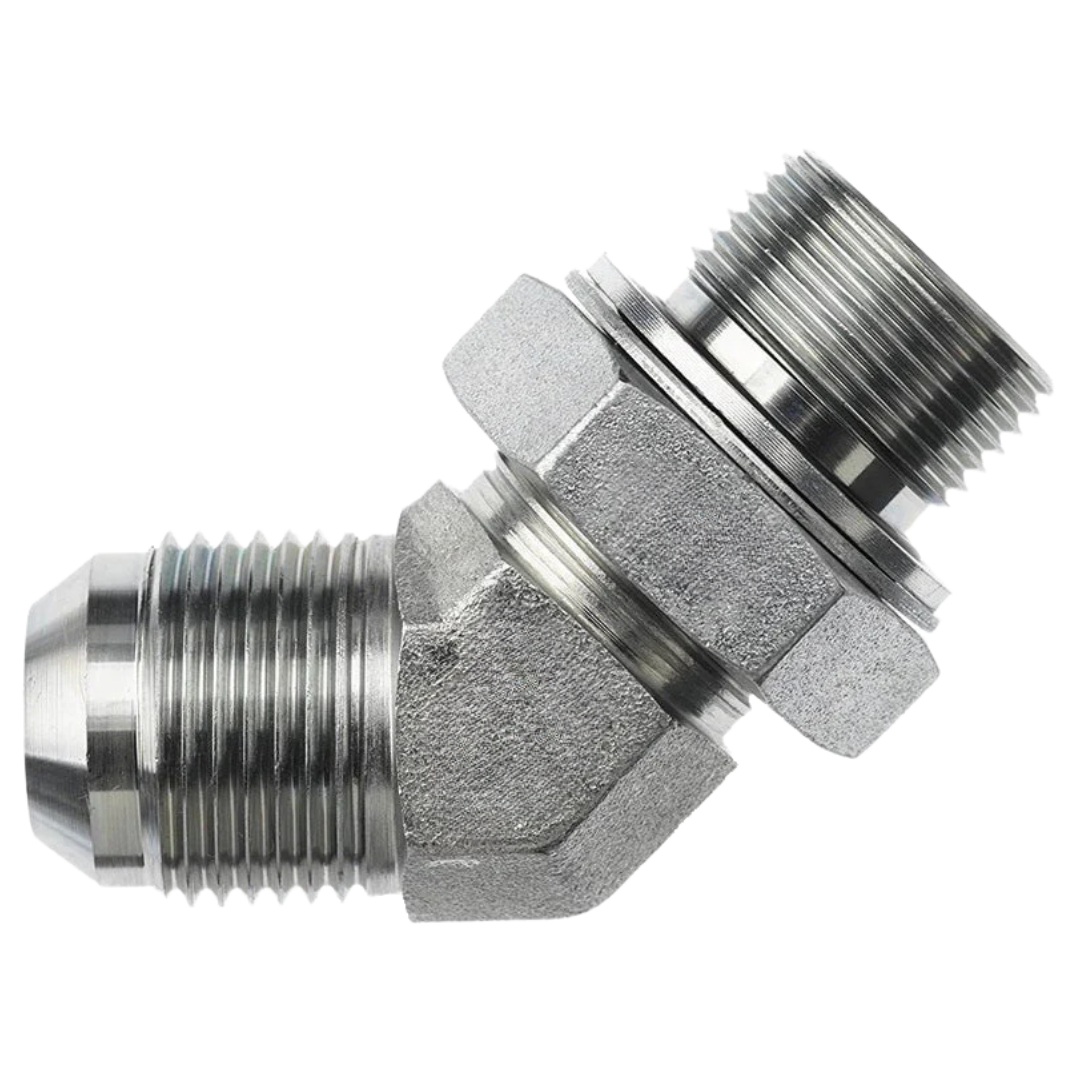

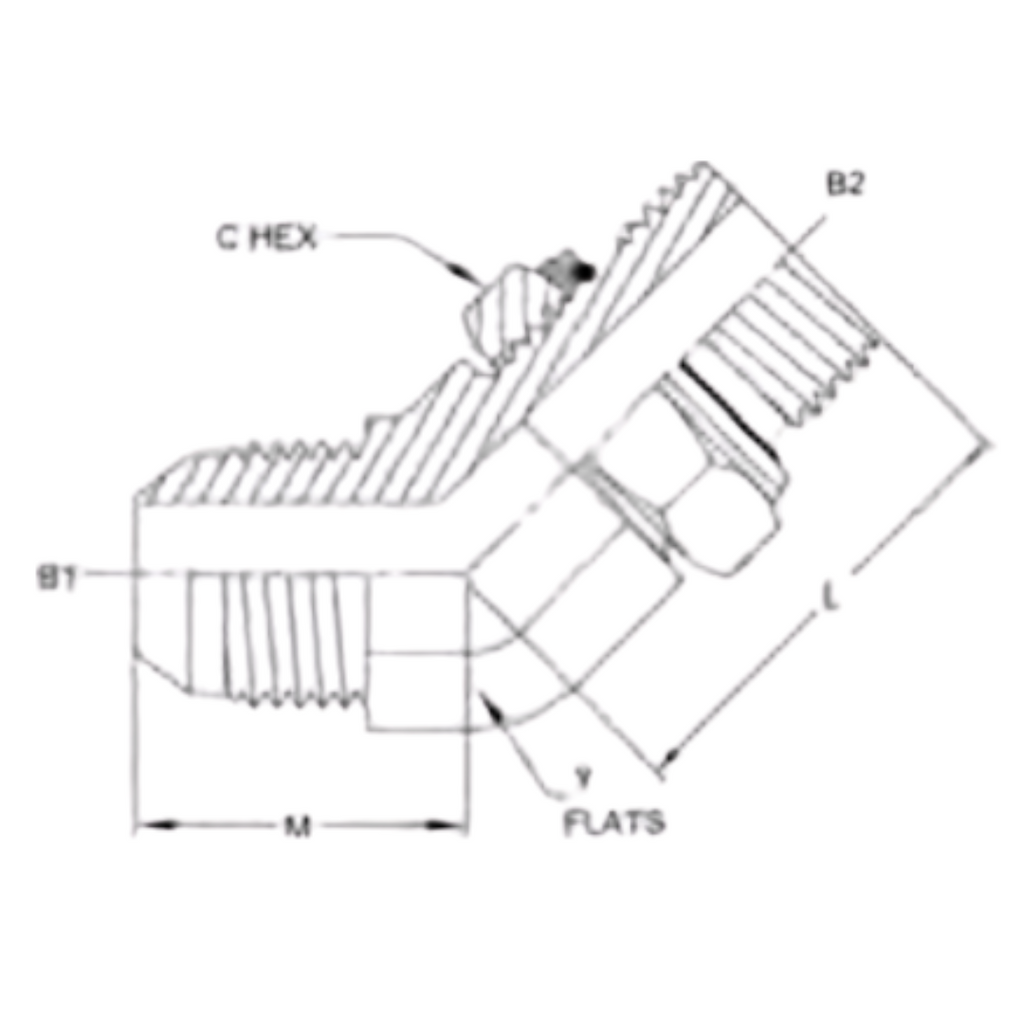

Our Series 7102 45-Degree Male JIC x Male Adjustable BSPP Adapters, made from durable carbon steel, are designed to provide secure, leak-free connections in hydraulic systems. These adapters feature a 45-degree angled male JIC (Joint Industry Council) connection, commonly used in fluid power systems, which utilizes a 37-degree flare seating surface to create a strong mechanical seal. The other end is equipped with a male BSPP (British Standard Pipe Parallel) connection, ensuring a tight, reliable seal through a captive seal design. These adapters are perfect for high-pressure applications where flexibility and efficient fluid transfer are required, offering excellent durability and performance in a wide range of industrial environments.
