Product Details
| Usually Ships Within | 3-5 Days |
|---|---|
| Factory Location | Twinsburg, Ohio or Houston, Texas |
| Material | Stainless Steel |
| Side 1 Gender | FEMALE |
| Side 1 Size | 7/16-20 (-04) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 1/4-19 (-04) |
| Side 2 Type | BSPP |
Description

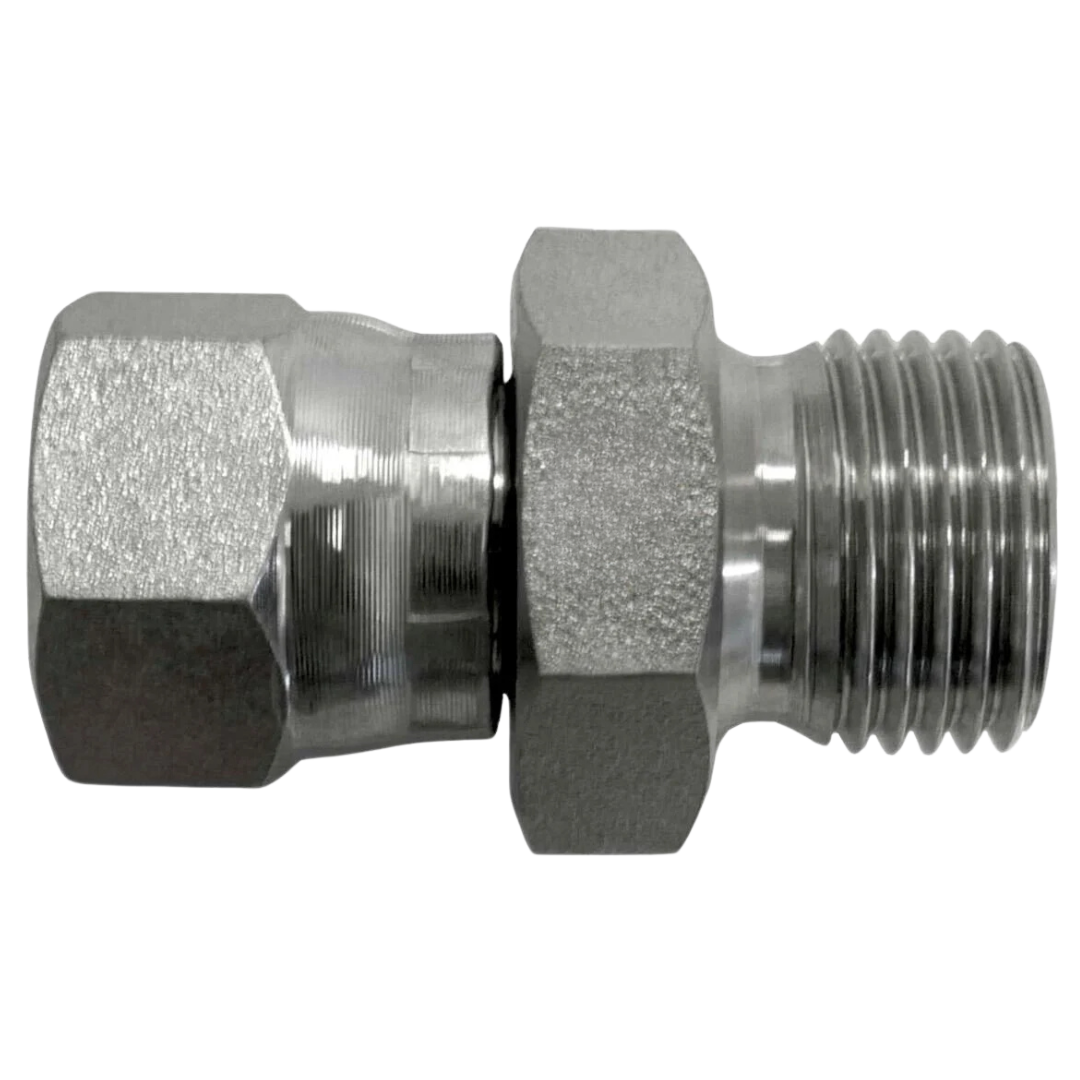

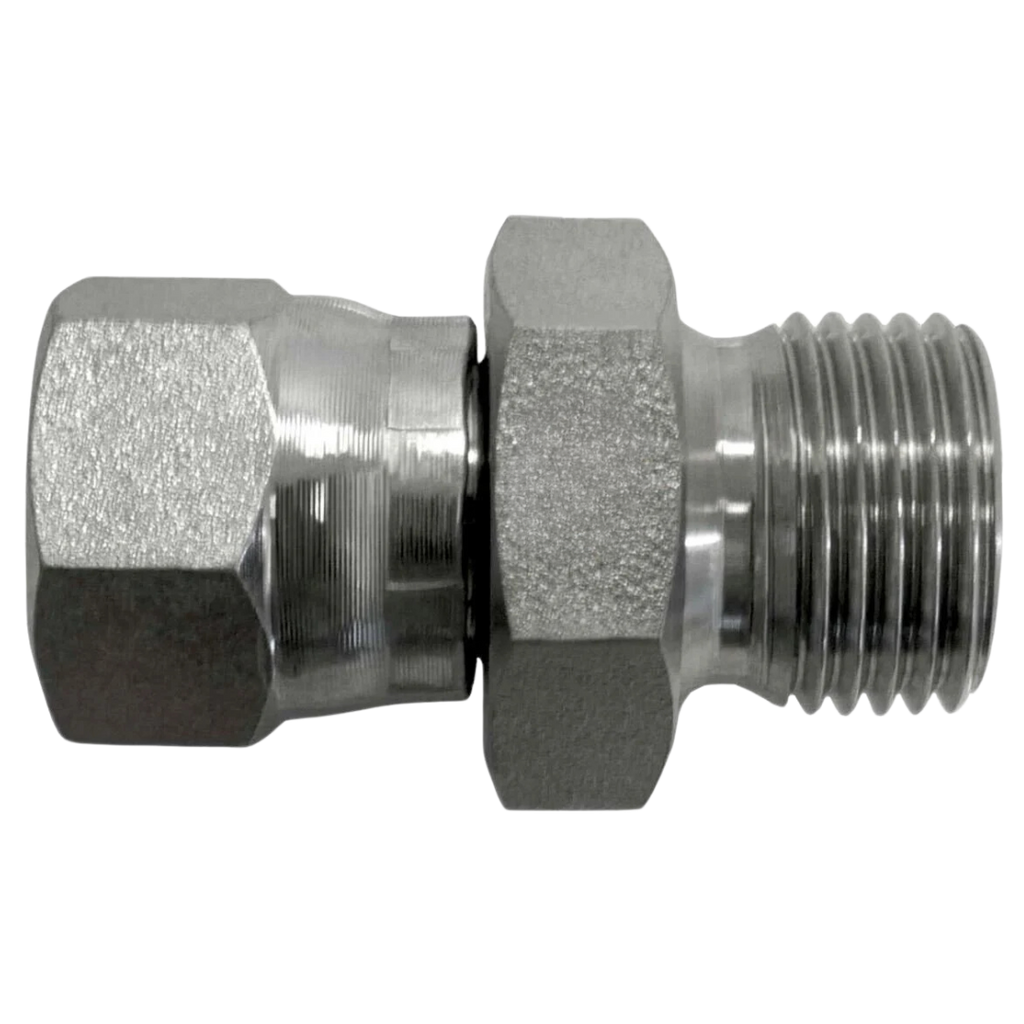

Our Series 7022-SS Straight Female JIC x Male BSPP Bonded Seal adapters (bonded seals sold separately), made from high-quality stainless steel, offer reliable, leak-free connections in hydraulic systems. These adapters feature a female JIC (Joint Industry Council) connection on one side, known for its 37-degree flare seating surface, ensuring a strong mechanical seal. The other side has a male BSPP (British Standard Pipe Parallel) connection, which is commonly used in European systems, along with a bonded seal to enhance leak prevention. The bonded seal, typically made of elastomeric material, provides a flexible, durable surface that ensures a tight, secure connection. Constructed from stainless steel, these adapters are corrosion-resistant and well-suited for high-pressure fluid power systems, offering long-lasting performance in demanding industrial applications.
