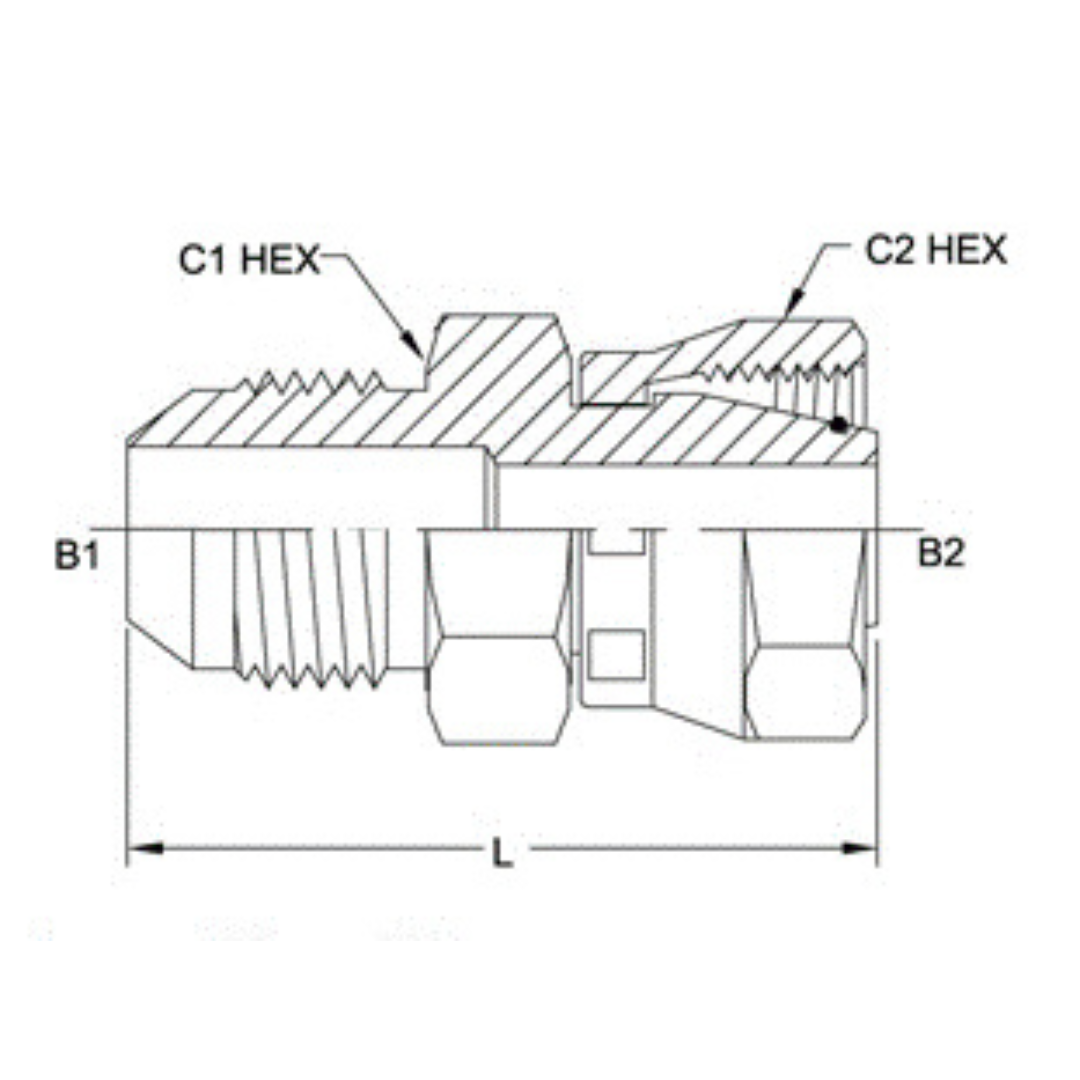

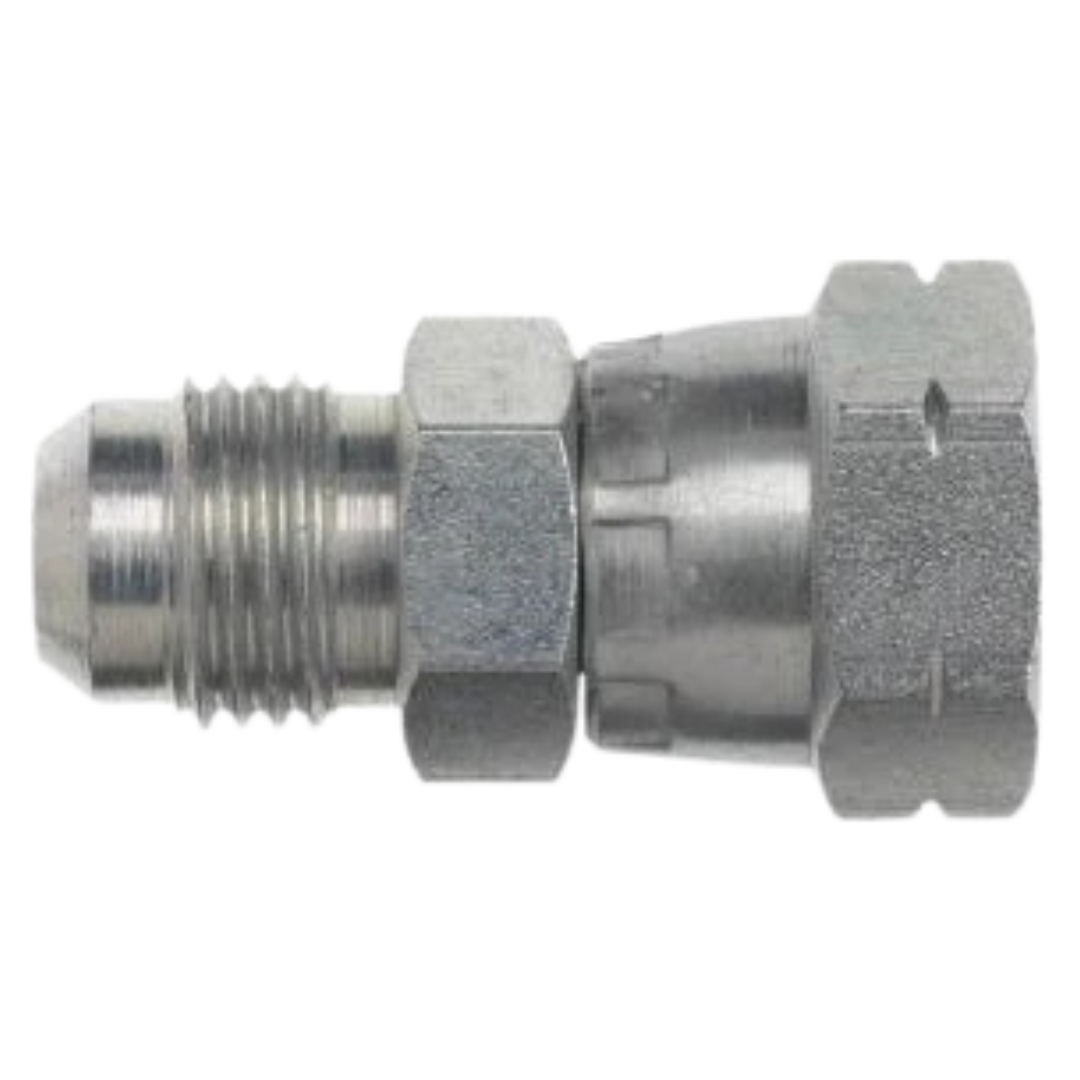

7007-12-S20-30 : OneHydraulics Straight Steel Adapter, 1-1/16-12 (-12) Male JIC x M30 X 2.0 (-S20) Female Heavy Duty DIN Swivel
7007-12-S20-30 : OneHydraulics Straight Steel Adapter, 1-1/16-12 (-12) Male JIC x M30 X 2.0 (-S20) Female Heavy Duty DIN Swivel
Roll over image to zoom in Click on image to zoom
7007-12-S20-30 : OneHydraulics Straight Steel Adapter, 1-1/16-12 (-12) Male JIC x M30 X 2.0 (-S20) Female Heavy Duty DIN Swivel7007-12-S20-30 : OneHydraulics Straight Steel Adapter, 1-1/16-12 (-12) Male JIC x M30 X 2.0 (-S20) Female Heavy Duty DIN Swivel

7007-12-S20-30 : OneHydraulics Straight Steel Adapter, 1-1/16-12 (-12) Male JIC x M30 X 2.0 (-S20) Female Heavy Duty DIN Swivel

Save $12.32
Adapt AllSKU: 7007-12-S20-30
3-5 Days
Price:
$48.99 $61.31

Product Details

Usually Ships Within 3-5 Days
Factory Location Houston, Texas
Material Steel
Shape Straight
Country of Manufacture China
Side 1 Gender MALE
Side 1 Size 1-1/16-12 (-12)
Side 1 Type JIC
Side 2 Gender FEMALE
Side 2 Size M30 X 2.0 (-S20)
Side 2 Type HEAVY DUTY DIN TUBE

Description

Our Series 7007-S Straight Male JIC x Female Heavy Duty DIN adapters, crafted from robust carbon steel, provide secure and efficient fluid connections for hydraulic systems. The male JIC end features a 37-degree flare seating surface, ensuring a tight, reliable mechanical seal when connected to a female fitting. The female end of the adapter is designed with a Heavy Duty DIN connection, conforming to ISO 8434-1 / DIN 2353 standards, which is ideal for high-pressure applications and heavy-duty hydraulic systems. These adapters are built for superior performance, offering durability and leak-free connections, making them a top choice for professionals seeking dependable, high-strength hydraulic solutions.
