Product Details
| Usually Ships Within | 3-5 Days |
|---|---|
| Factory Location | Twinsburg, Ohio or Houston, Texas |
| Material | Steel |
| Shape | Straight |
| Pressure Rating | Call to Verify |
| Country of Manufacture | Canada |
| Length | 34mm |
| Side 1 Gender | MALE |
| Side 1 Size | 2-1/2-12 (-32) |
| Side 1 Type | JIC |
| Side 2 Gender | FEMALE |
| Side 2 Size | 2-11 (-32) |
| Side 2 Type | BSPP |
Description

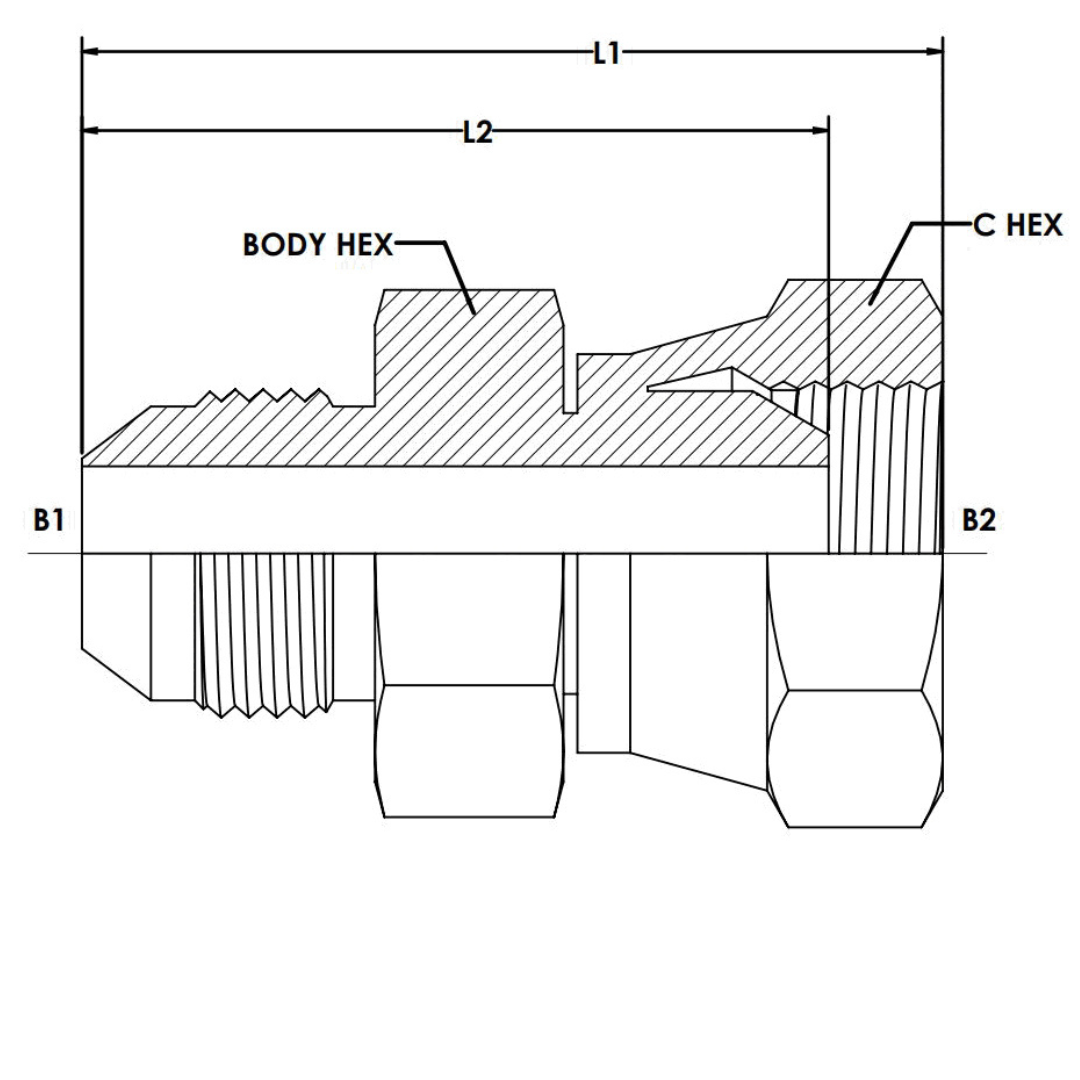

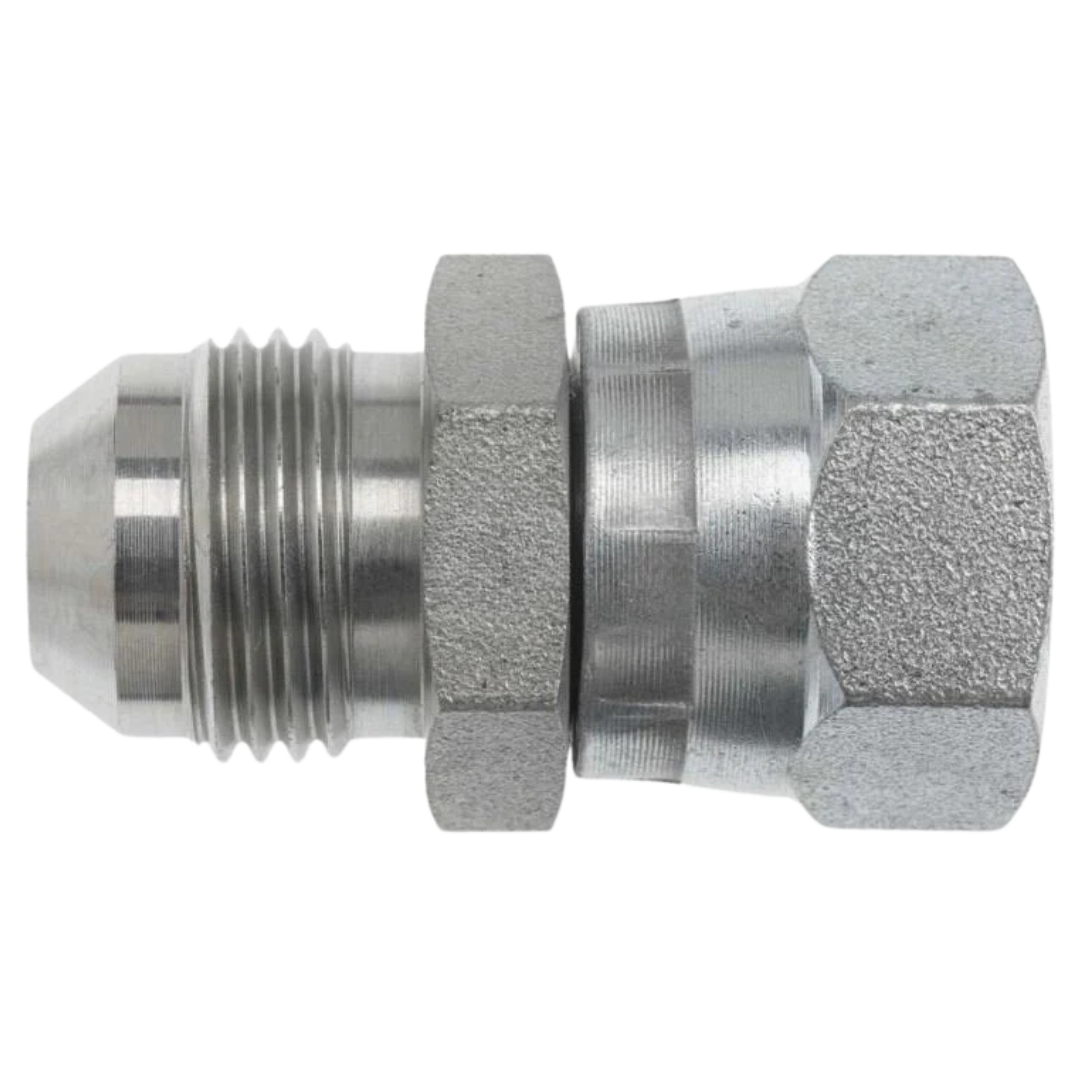

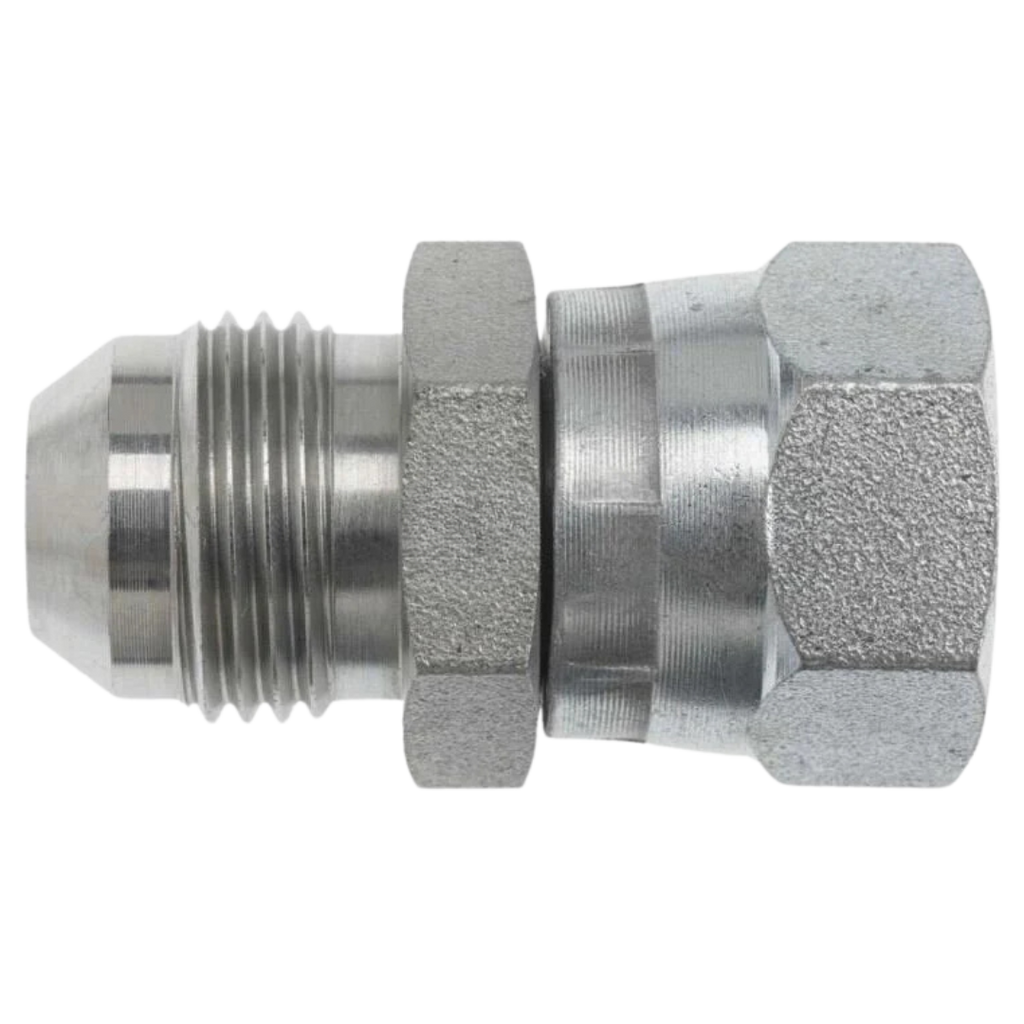

Our Series 7004 Straight Male JIC x Female BSPP Swivel adapters, made from high-quality carbon steel, are essential components in hydraulic systems that ensure secure and reliable connections. These adapters feature a male JIC (Joint Industry Council) connection on one end, known for its 37-degree flare seating surface and parallel threads, providing a durable and leak-free seal. On the other end, the female BSPP (British Standard Pipe Parallel) connection offers a tapered nose flareless swivel, where the seal is created between the cone seat of the male connector and the female threads. These adapters are ideal for high-pressure fluid power systems and are perfect for professionals looking for versatile and reliable solutions in hydraulic applications. The Series 7004 ensures optimal performance, minimizing the risk of leaks while providing a robust mechanical connection.
