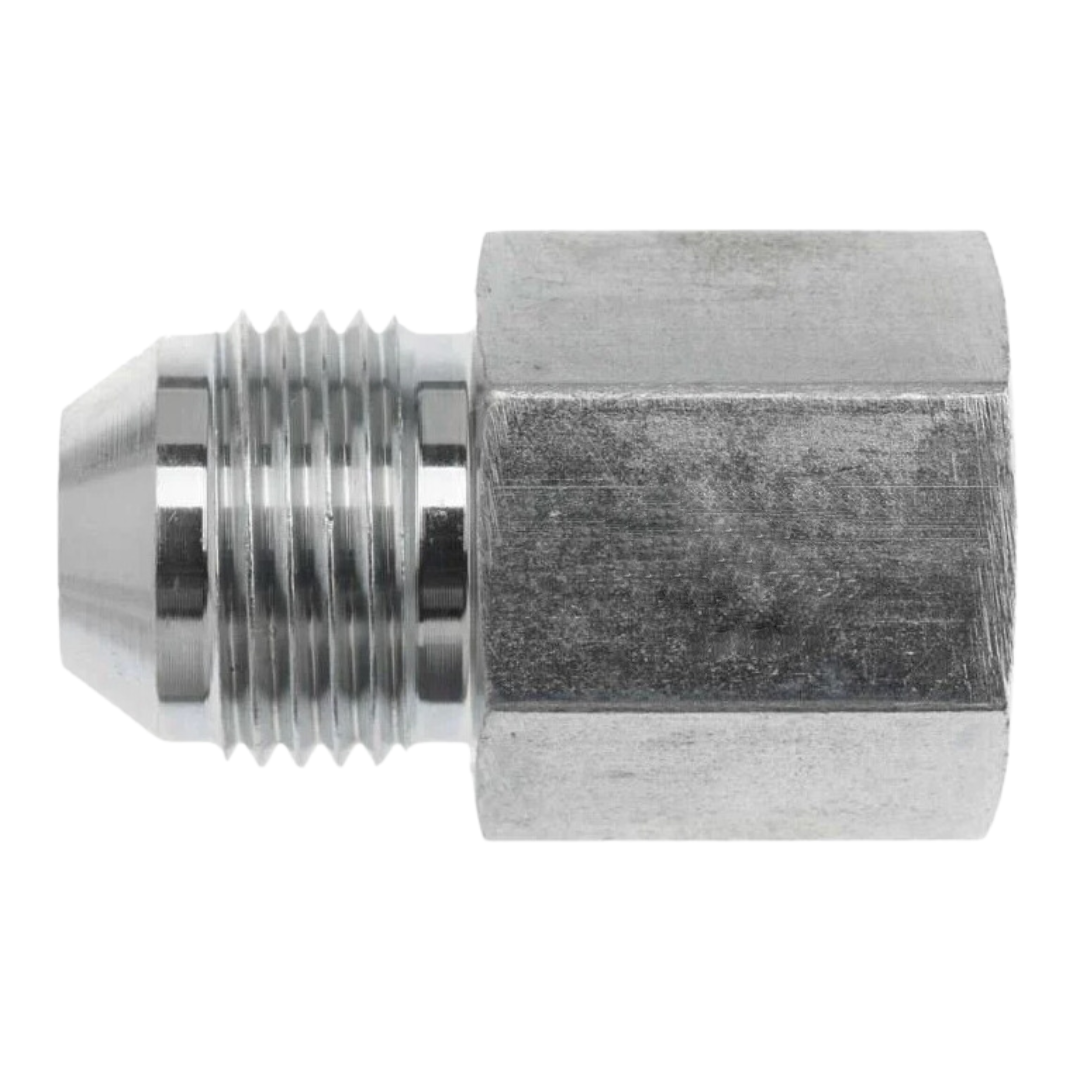

7003-04-04 : OneHydraulics Straight Steel Adapter, 7/16-20 (-04) Male JIC x 1/4-19 (-04) Female BSPP

The Series 7003 Straight Male JIC x Female BSPP hydraulic adapters, made from durable carbon steel, are essential components designed for secure fluid connections in hydraulic systems. Featuring a male JIC (Joint Industry Council) end, these adapters utilize a 37-degree flare seating surface and parallel threads, as defined by SAE J514, making them common in fluid power applications due to their reliability. The seal is formed by establishing contact between the male flared seat and the female coned seat, creating a strong mechanical connection. On the other side, the female BSPP (British Standard Pipe Parallel) connection is comparable to NPSM male fittings but typically has a different thread pitch. A captive seal is achieved using metal-to-metal angled surfaces or a combination of metal and an O-ring, ensuring a leak-proof connection. The female swivel BSPP features a tapered nose flareless swivel, where the seal occurs on the cone seat of the male connector. Thread sizes are often expressed as fractional dimensions preceded by "G" for parallel threads and "R" for tapered threads, allowing for easy compatibility with various systems. These adapters are ideal for professionals seeking dependable hydraulic solutions in diverse applications.
