Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Factory Stock | 140 |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Pressure Rating | 4000 |
| Side 1 Gender | MALE |
| Side 1 Size | 3/4-16 (-08) |
| Side 1 Type | ORB |
| Side 2 Gender | FEMALE |
| Side 2 Size | 3/8-18 (-06) |
| Side 2 Type | NPSM |
Description

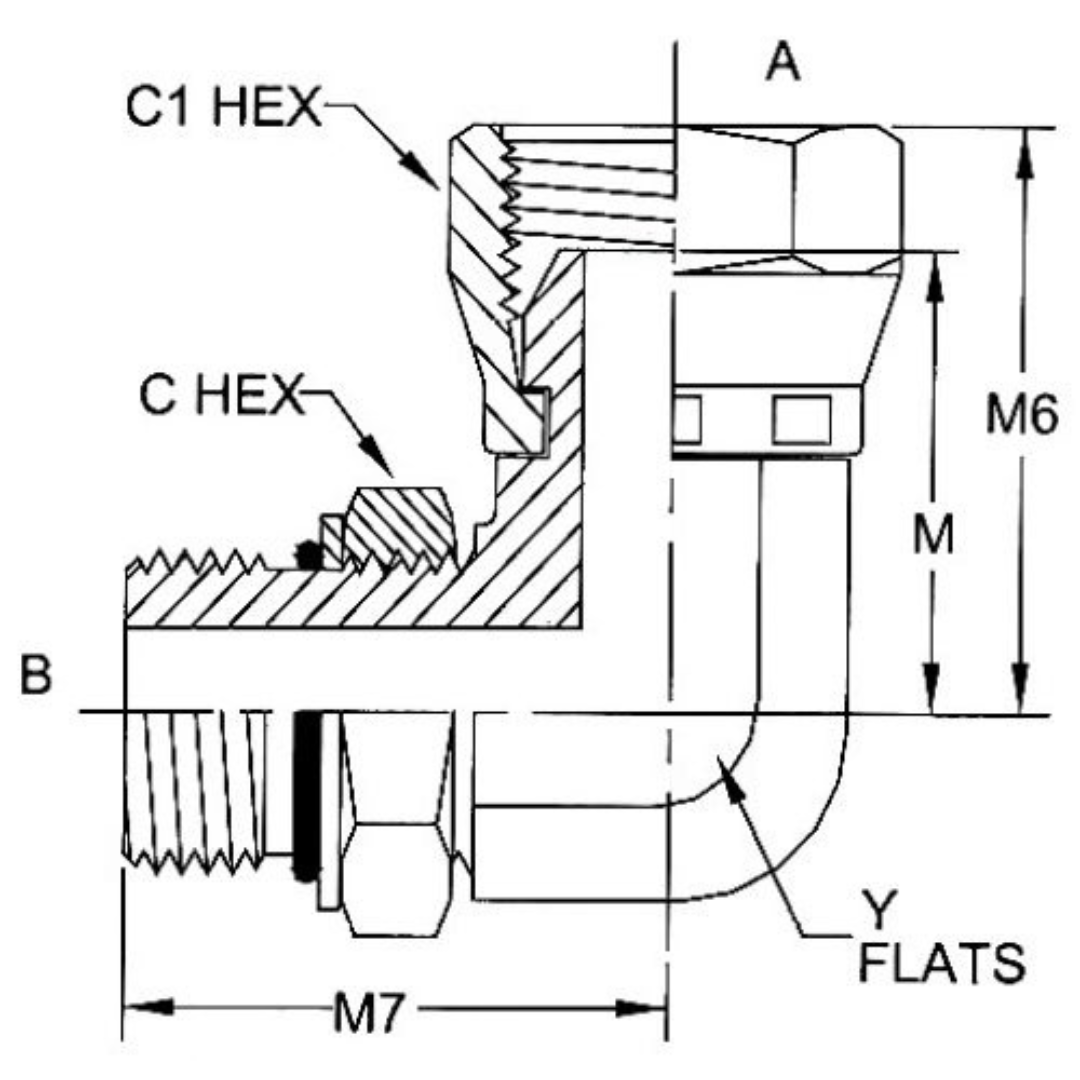

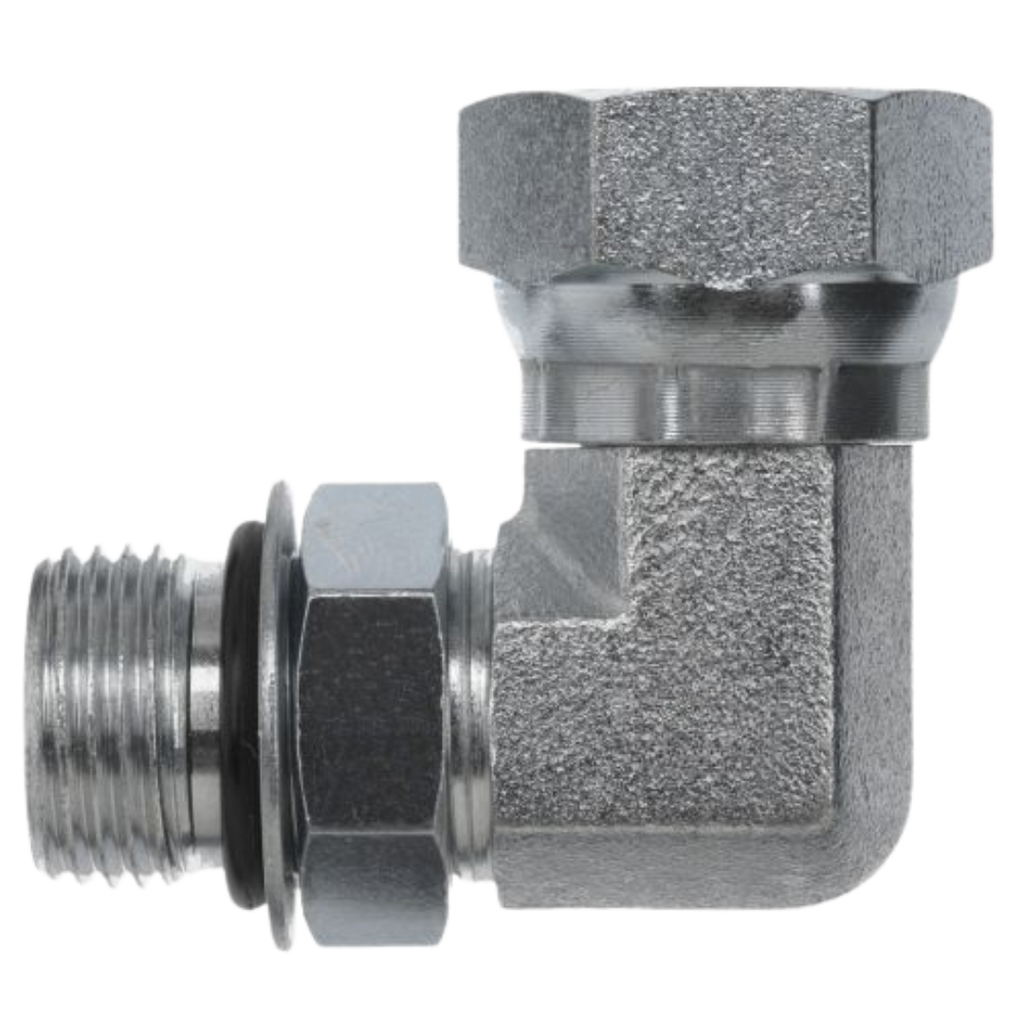

The Series 6901-NWO 90-Degree Angled Male Adjustable ORB x Female NPSM Swivel adapters are high-performance carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle, making them ideal for routing hoses and pipes in tight or confined spaces. One end is equipped with a male Adjustable ORB (O-Ring Boss) connection, ensuring a reliable, adjustable seal by compressing an O-ring into the port’s chamfer for a leak-tight fit. The other end has a female NPSM (National Pipe Straight Mechanical) thread, designed for a mechanical connection with the use of a gasket or sealant. The swivel feature allows for easy installation and flexibility, making these adapters perfect for systems that require precise alignment. Made from durable carbon steel, the Series 6901-NWO offers exceptional strength, corrosion resistance, and long-lasting performance, making it ideal for high-pressure fluid power systems and industrial applications.
