Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Stainless Steel |
| Shape | Straight |
| Pressure Rating | 6000 |
| Series | 6900-O |

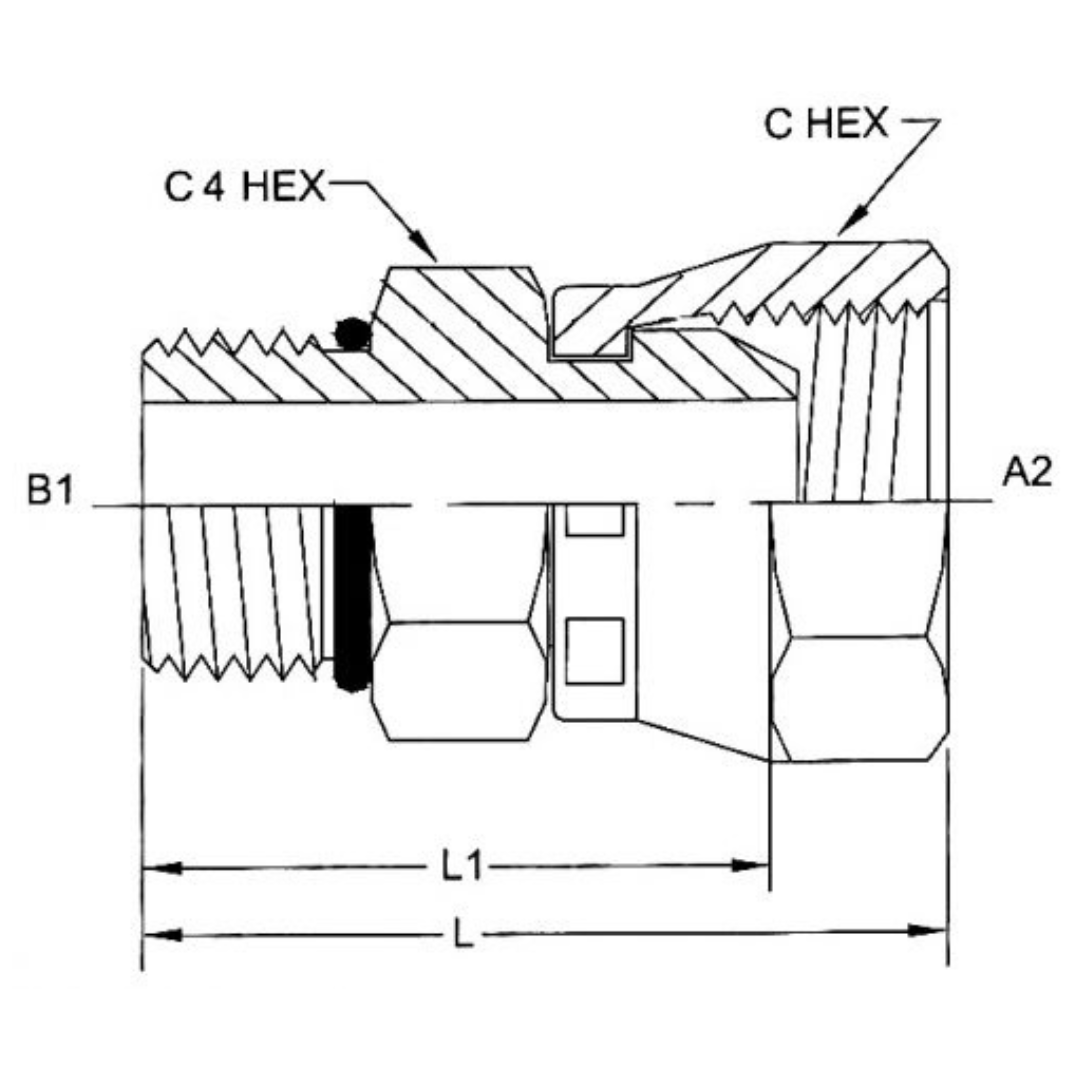

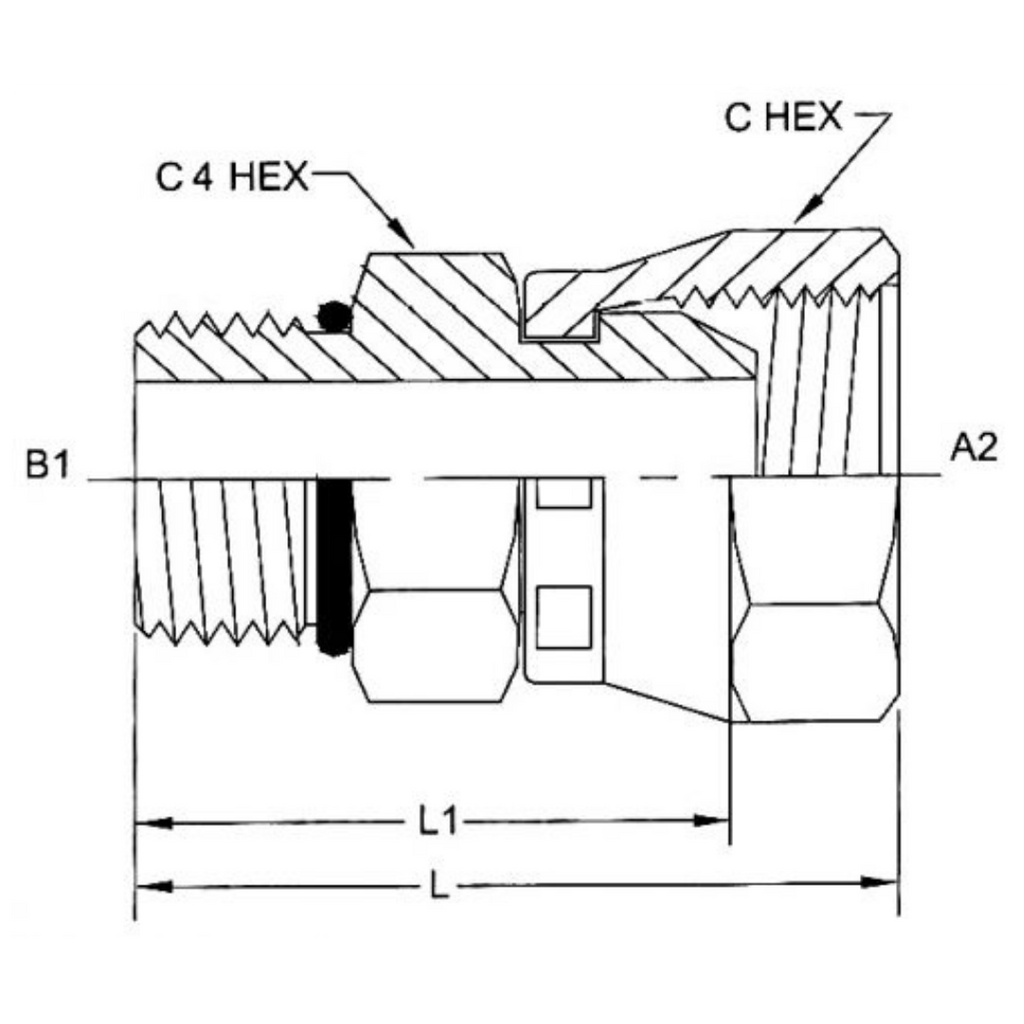

| Special Dims | L Length 1.30, L1 Length 1.11, C Hex 0.688, C4 Hex 0.562, A2 Drill 0.210, A2 Drill 0.210, A2 Drill 0.210, A2 Drill 0.210, A2 Drill 0.210, B1 Drill 0.172, A2 NPSM 1/4-18, B1 SAE ORB 7/16-20 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 7/16-20 (-04) |
| Side 1 Type | ORB |
| Side 2 Gender | FEMALE |
| Side 2 Size | 1/4-18 (-04) |
| Side 2 Type | NPSM |
Description

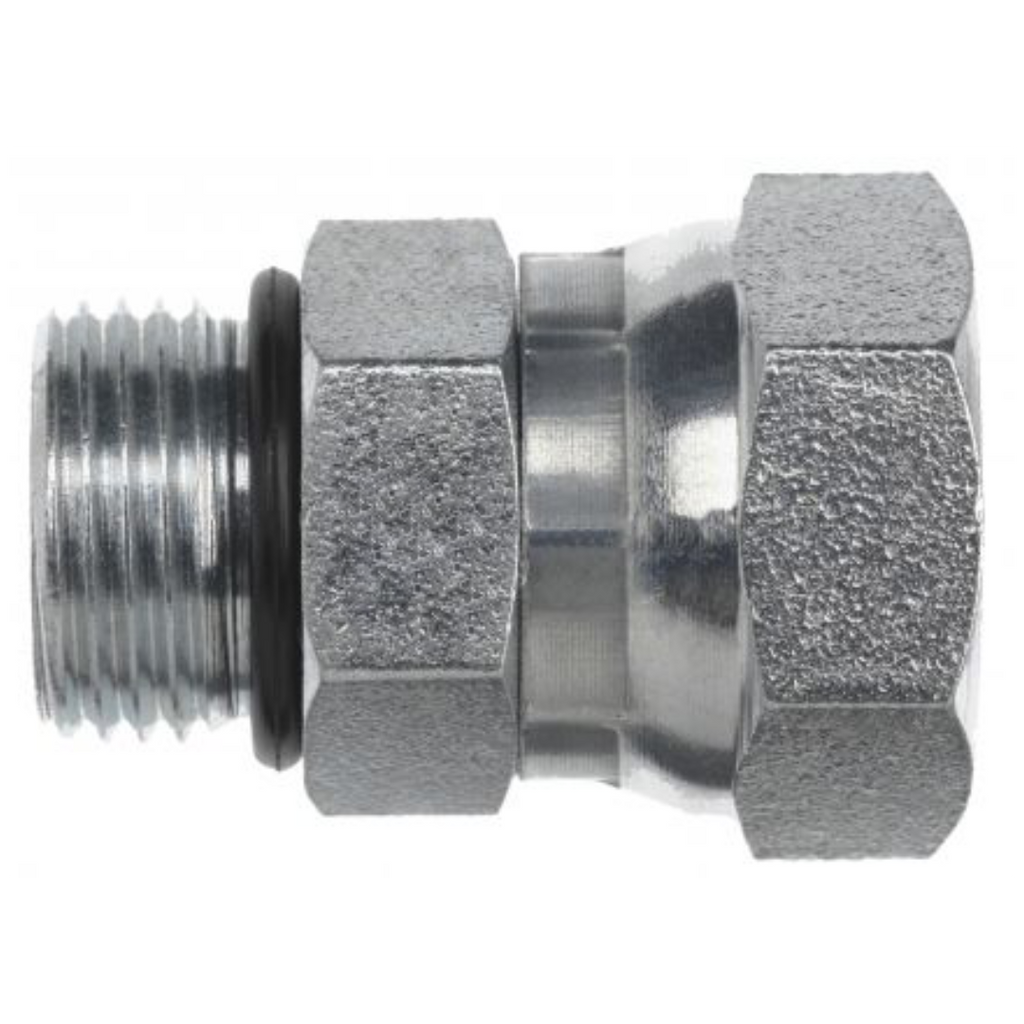

Our Series 6900-O-SS Straight Male ORB x Female NPSM Swivel hydraulic adapters, made from stainless steel, combine the ORB and NPSM thread types to create secure, leak-resistant connections in hydraulic systems. ORB (SAE Straight Thread O-ring Boss) fittings feature a male straight UNF thread with an O-ring that creates a leak-tight seal when compressed into a chamfered surface on the female port. The NPSM (National Pipe Straight Mechanical) side features a straight, non-tapered thread with a 30° inverted seat on the female, and a 30° chamfer on the male component. This creates a mechanical seal when the male and female parts are compressed together. NPTF and NPSM threads are similar but differ in how they seal: NPTF deforms the thread for a dry seal, while NPSM relies on compression for a secure connection. Care should be taken when selecting the appropriate thread type to ensure compatibility and avoid leaks. These adapters offer versatile, reliable sealing in fluid power systems.
