Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Cross |
| Series | 6850-NWO-FG |

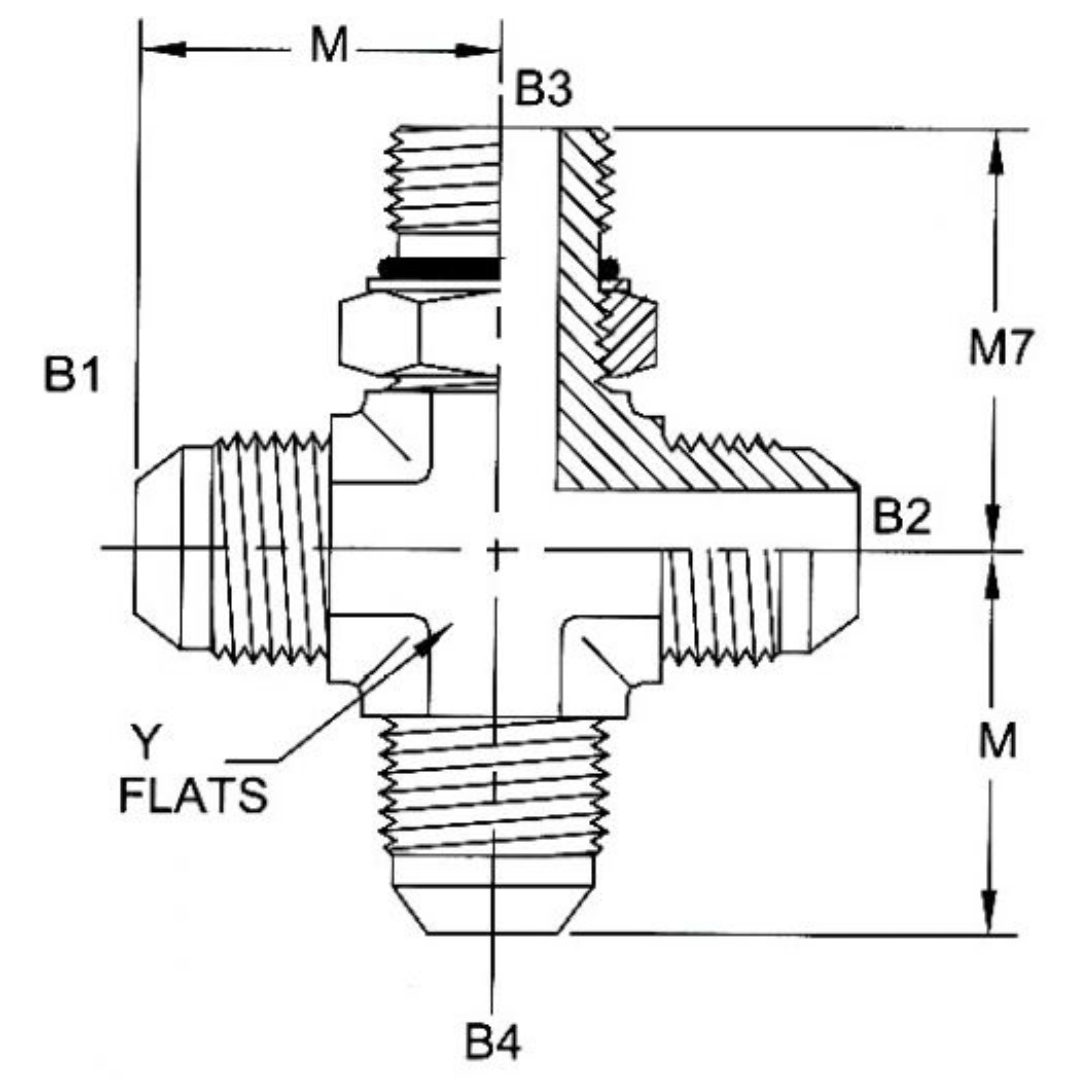

| Special Dims | C Hex 0.688, Y Flats 0.562, B1 Drill 0.297, B2 Drill 0.297, B3 Drill 0.297, B4 Drill 0.297, M Length 1.06, M7 Length 1.25, B1 SAE 37-Degree 9/16-18, B2 SAE 37-Degrees 9/16-18, B4 SAE 37-Degrees 9/16-18, B3 SAE ORB 9/16-18 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 9/16-18 (-06) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | JIC |
| Side 3 Gender | MALE |
| Side 3 Size | 9/16-18 (-06) |
| Side 3 Type | ORB |
| Side 4 Gender | MALE |
| Side 4 Size | 9/16-18 (-06) |
| Side 4 Type | JIC |
Description

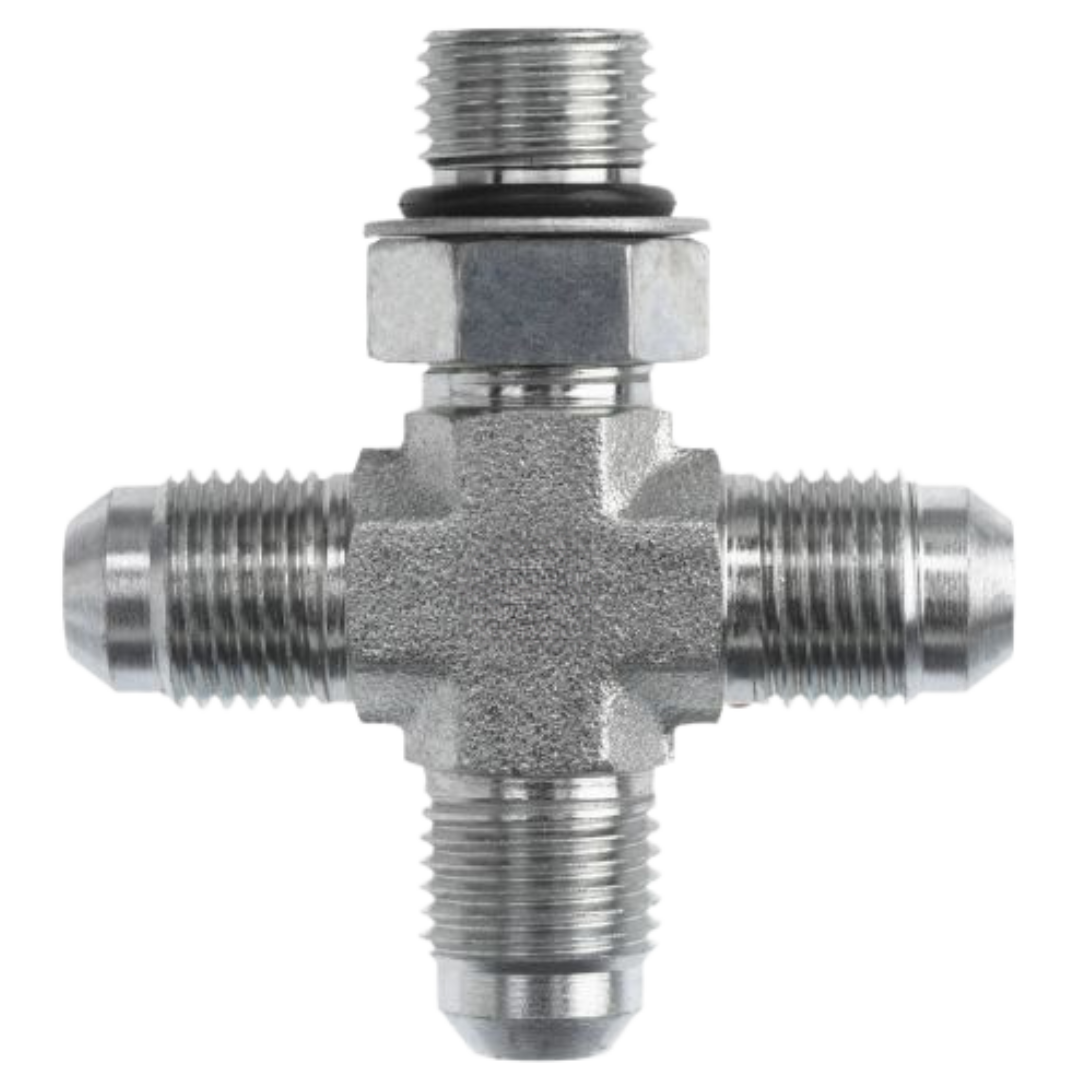

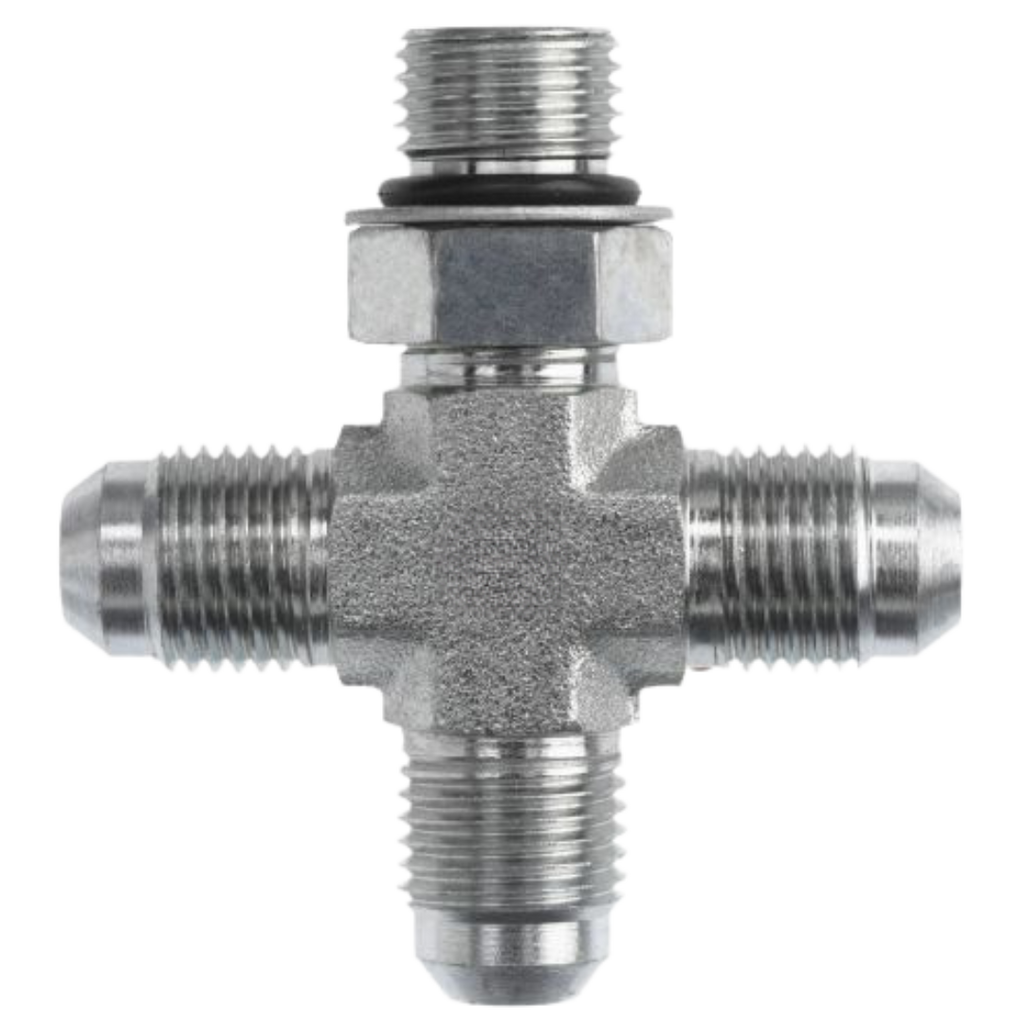

The Series 6850-NWO Cross Male JIC x Male JIC x Male Adjustable ORB x Male JIC adapters are high-quality carbon steel fittings designed for efficient fluid routing in complex hydraulic and fluid power systems. These cross adapters feature a combination of male JIC (Joint Industry Council) connections and a male Adjustable ORB connection, arranged in a cross configuration. The male JIC connections, known for their 37° tapered seats, ensure a secure, leak-free seal when mated with corresponding female coned seats. The male Adjustable ORB connection provides a reliable, adjustable seal with straight threads and an O-ring, enhancing the versatility and flexibility of fluid distribution. Made from carbon steel, these adapters offer exceptional strength, durability, and corrosion resistance, making them ideal for high-pressure applications in industrial environments. The Series 6850-NWO adapters are engineered to provide reliable, long-lasting fluid transfer and efficient routing in demanding applications.
