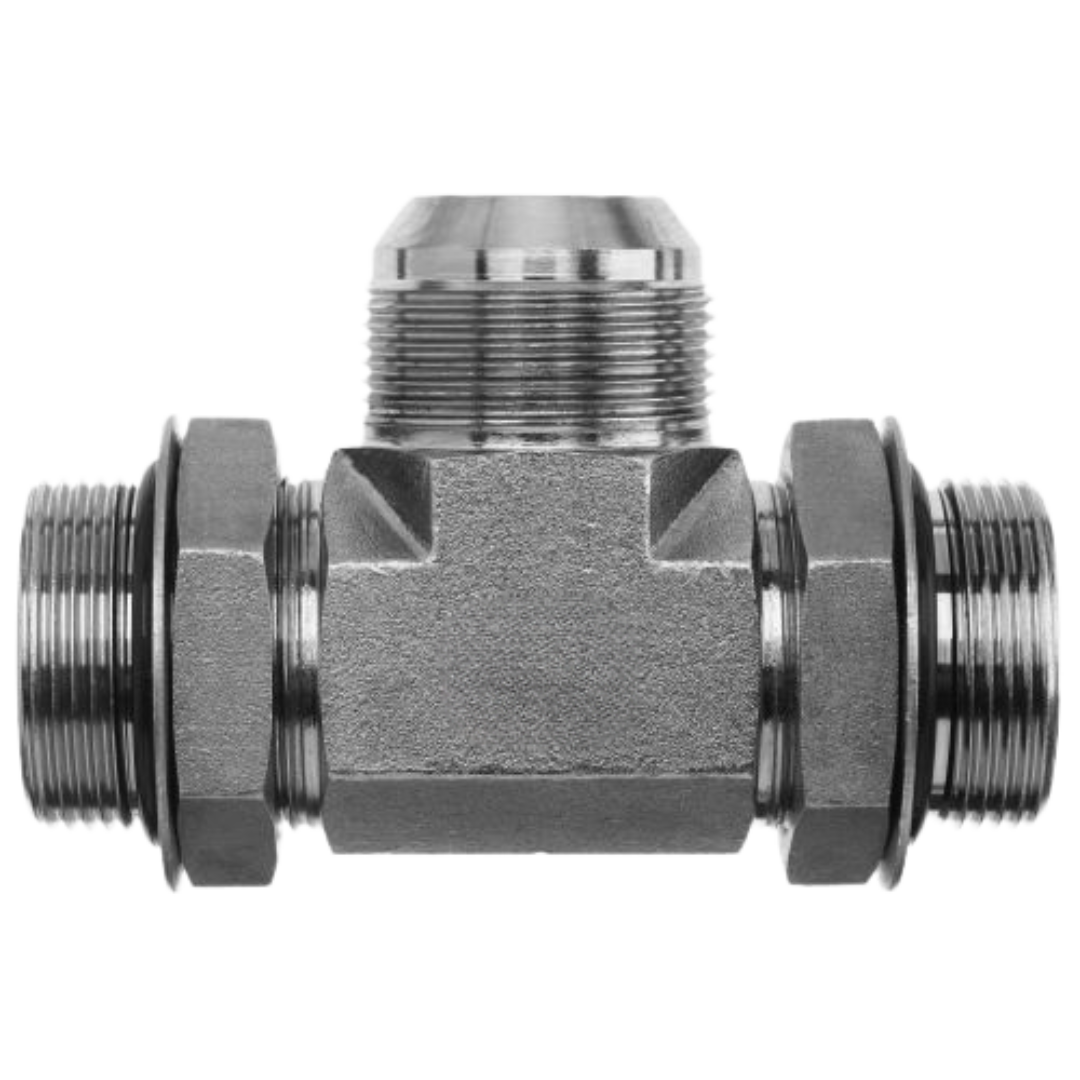

6840-20-20-20-NWO-FG : OneHydraulics Tee Steel Adapter, 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male JIC
6840-20-20-20-NWO-FG : OneHydraulics Tee Steel Adapter, 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male JIC
Roll over image to zoom in Click on image to zoom
6840-20-20-20-NWO-FG : OneHydraulics Tee Steel Adapter, 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male JIC6840-20-20-20-NWO-FG : OneHydraulics Tee Steel Adapter, 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male JIC

6840-20-20-20-NWO-FG : OneHydraulics Tee Steel Adapter, 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male JIC

Save $63.92
OneHydraulicsSKU: 6840-20-20-20-NWO-FG
1-3 Days
Price:
$59.80 $123.72

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Location Houston, Texas or Dallas, Texas or Cleveland, Ohio
Material Steel
Shape Tee
Pressure Rating Call to Verify
Series 6840-NWO-FG
Country of Manufacture China
Side 1 Gender MALE
Side 1 Size 1-5/8-12 (-20)
Side 1 Type ORB
Side 2 Gender MALE
Side 2 Size 1-5/8-12 (-20)
Side 2 Type ORB
Side 3 Gender MALE
Side 3 Size 1-5/8-12 (-20)
Side 3 Type JIC

Description

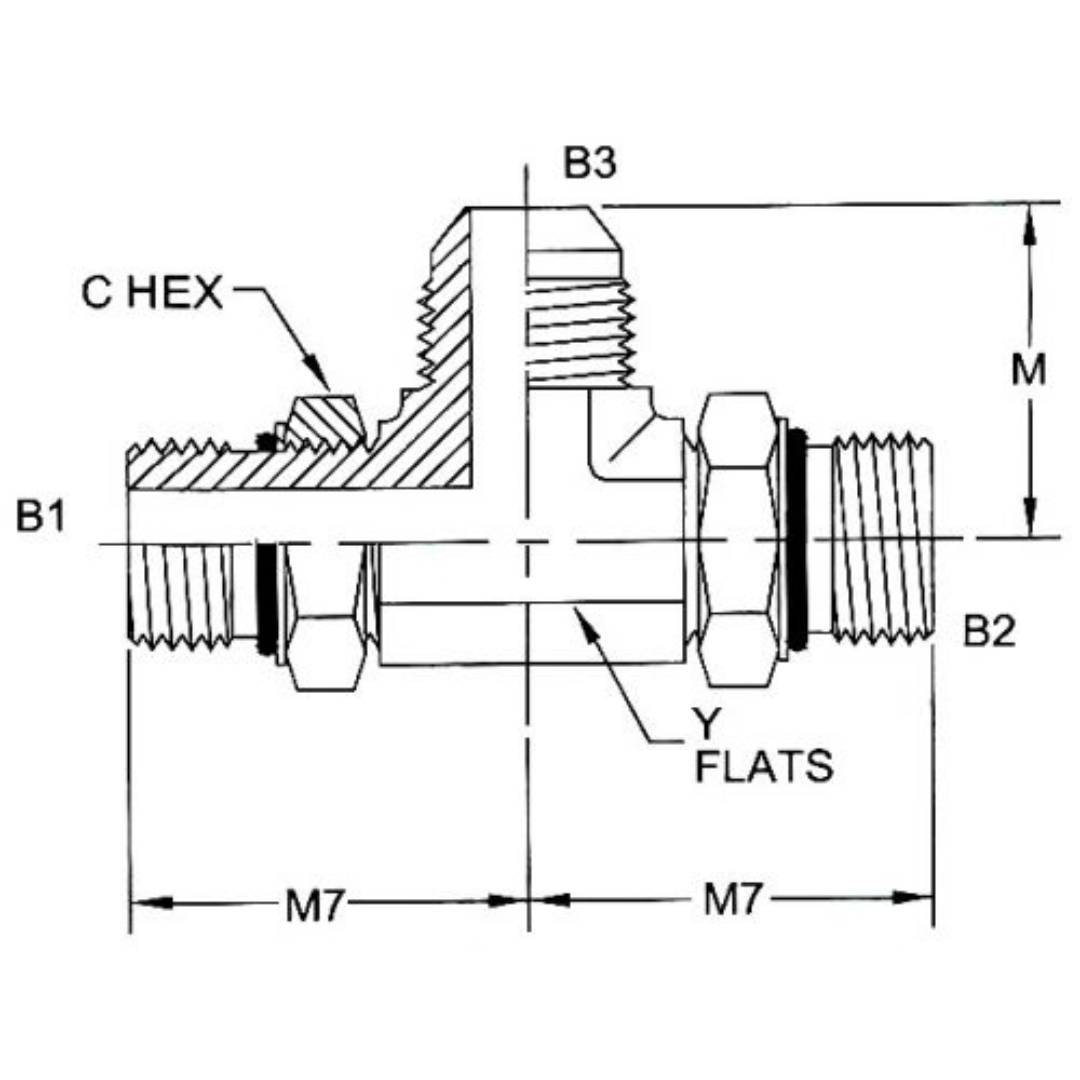

The Series 6840-NWO Tee Male Adjustable ORB x Male Adjustable ORB x Male JIC adapters are high-quality carbon steel fittings designed for efficient, leak-free connections in hydraulic and fluid power systems. These tee adapters feature a three-way design, allowing for the efficient routing of fluid flow through a primary line while creating a branch line at a 90-degree angle. The two male adjustable ORB (O-Ring Boss) connections offer a flexible, leak-proof seal through an O-ring, providing the benefit of easy alignment and adjustment during installation. The third end is equipped with a male JIC (Joint Industry Council) connection, utilizing a 37° tapered seat to create a secure, mechanical seal. Made from durable carbon steel, the Series 6840-NWO adapters offer superior strength and long-lasting performance, making them ideal for high-pressure systems and industrial applications that require dependable, efficient, and flexible fluid connections. These adapters are perfect for systems that demand secure routing and reliable connections in demanding environments.
