Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Tee |
| Series | 6832-NWO-FG |

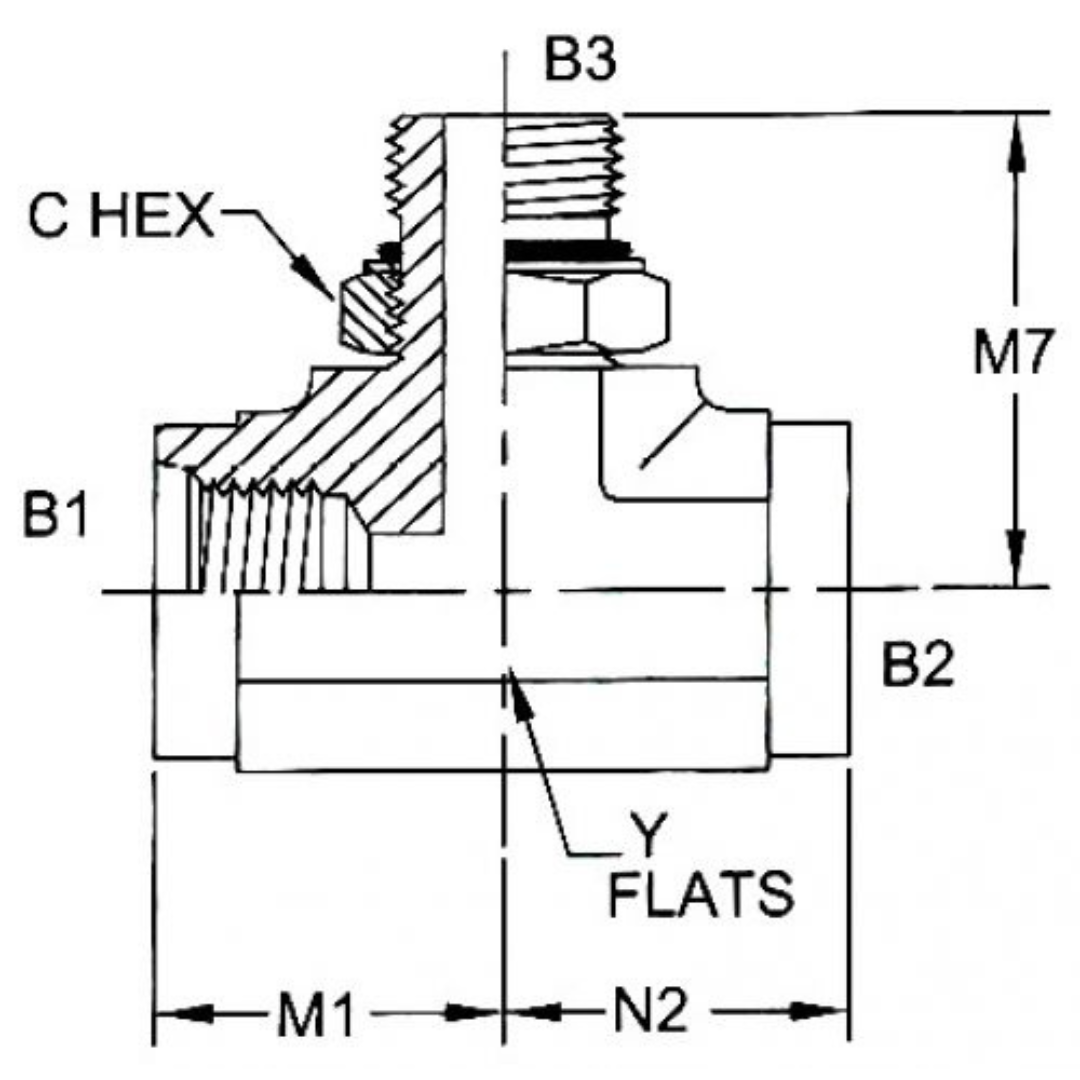

| Special Dims | C Hex 1.000, Y Flats 1.062, B3 Drill 0.484, M1 Length 1.020, M7 Length 1.810, N2 Length 1.020, B1 SAE ORB 7/8-14, B2 SAE ORB 7/8-14, B3 SAE ORB 7/8-14 |
| Country of Manufacture | China |
| Side 1 Gender | FEMALE |
| Side 1 Size | 7/8-14 (-10) |
| Side 1 Type | ORB |
| Side 2 Gender | FEMALE |
| Side 2 Size | 7/8-14 (-10) |
| Side 2 Type | ORB |
| Side 3 Gender | MALE |
| Side 3 Size | 7/8-14 (-10) |
| Side 3 Type | ORB |
Description

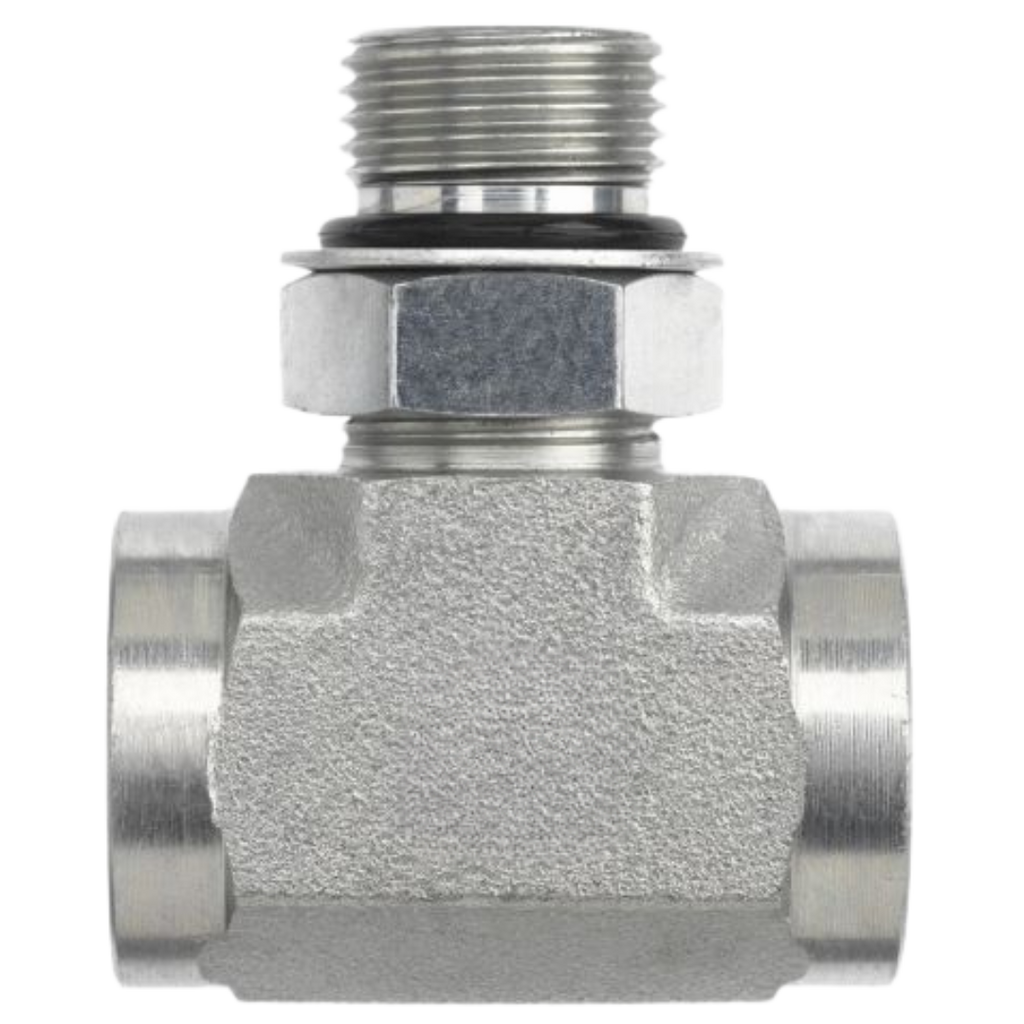

The Series 6832-NWO Tee Female ORB x Female ORB x Male Adjustable ORB adapters are high-quality carbon steel fittings designed for efficient fluid distribution in hydraulic and fluid power systems. These tee adapters feature a three-way design, with two female ORB (O-Ring Boss) connections and one male adjustable ORB connection. The female ORB connections provide leak-free, secure seals using an O-ring, while the male adjustable ORB connection offers flexibility in adjusting the seal for optimal performance. ORB connections are widely recommended for leak prevention and are ideal for high-pressure applications. Made from durable carbon steel, these adapters offer superior strength, corrosion resistance, and long-lasting performance, making them perfect for industrial systems that require flexible, dependable, and efficient fluid routing. The Series 6832-NWO adapters provide secure and reliable connections for fluid transfer in demanding environments.
