Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Tee |
| Pressure Rating | Call to Verify |
| Series | 6820-NWO-FG |
| Country of Manufacture | China |
| Side 1 Gender | FEMALE |
| Side 1 Size | 9/16-18 (-06) |
| Side 1 Type | ORB |
| Side 2 Gender | MALE |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | ORB |
| Side 3 Gender | MALE |
| Side 3 Size | 9/16-18 (-06) |
| Side 3 Type | JIC |
Description

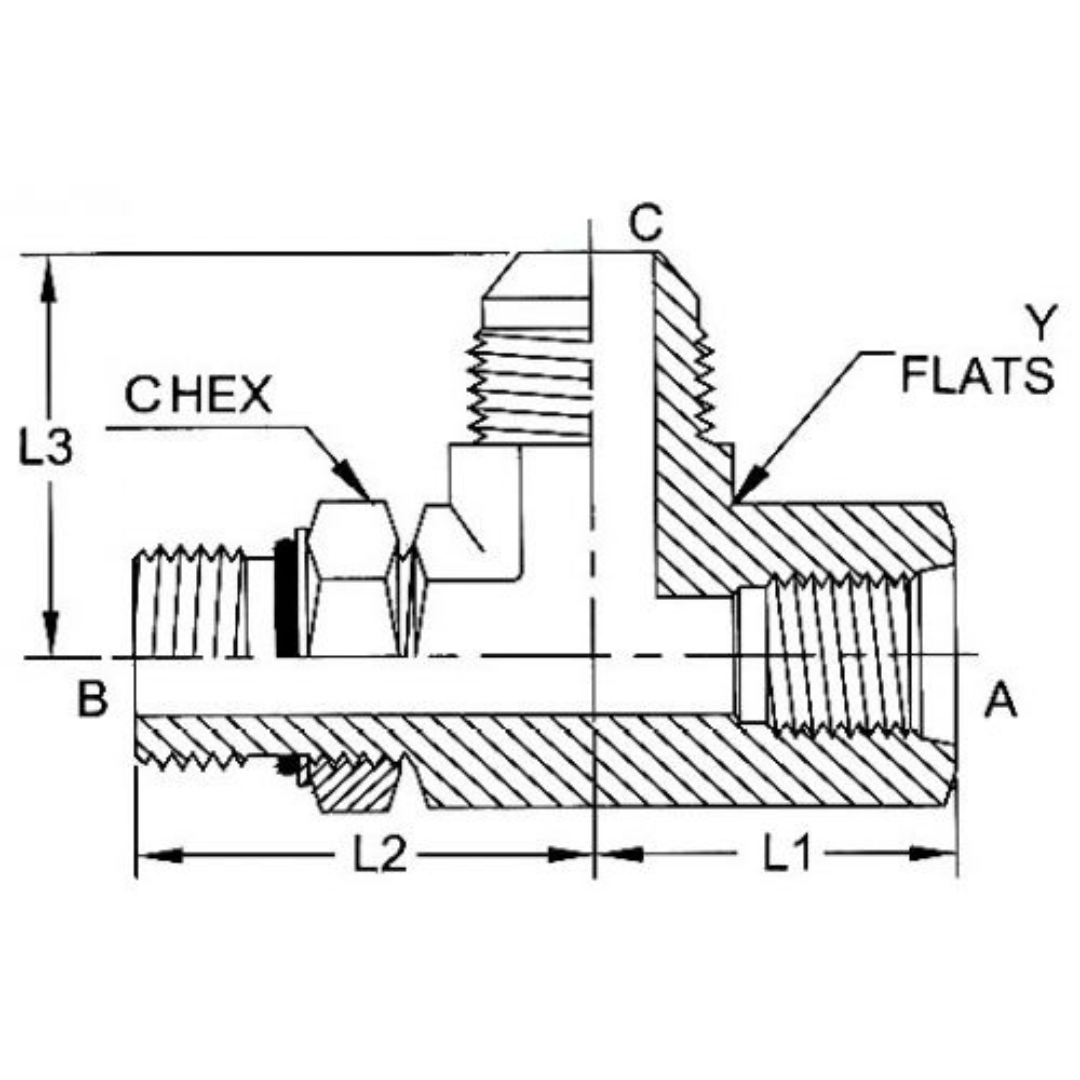

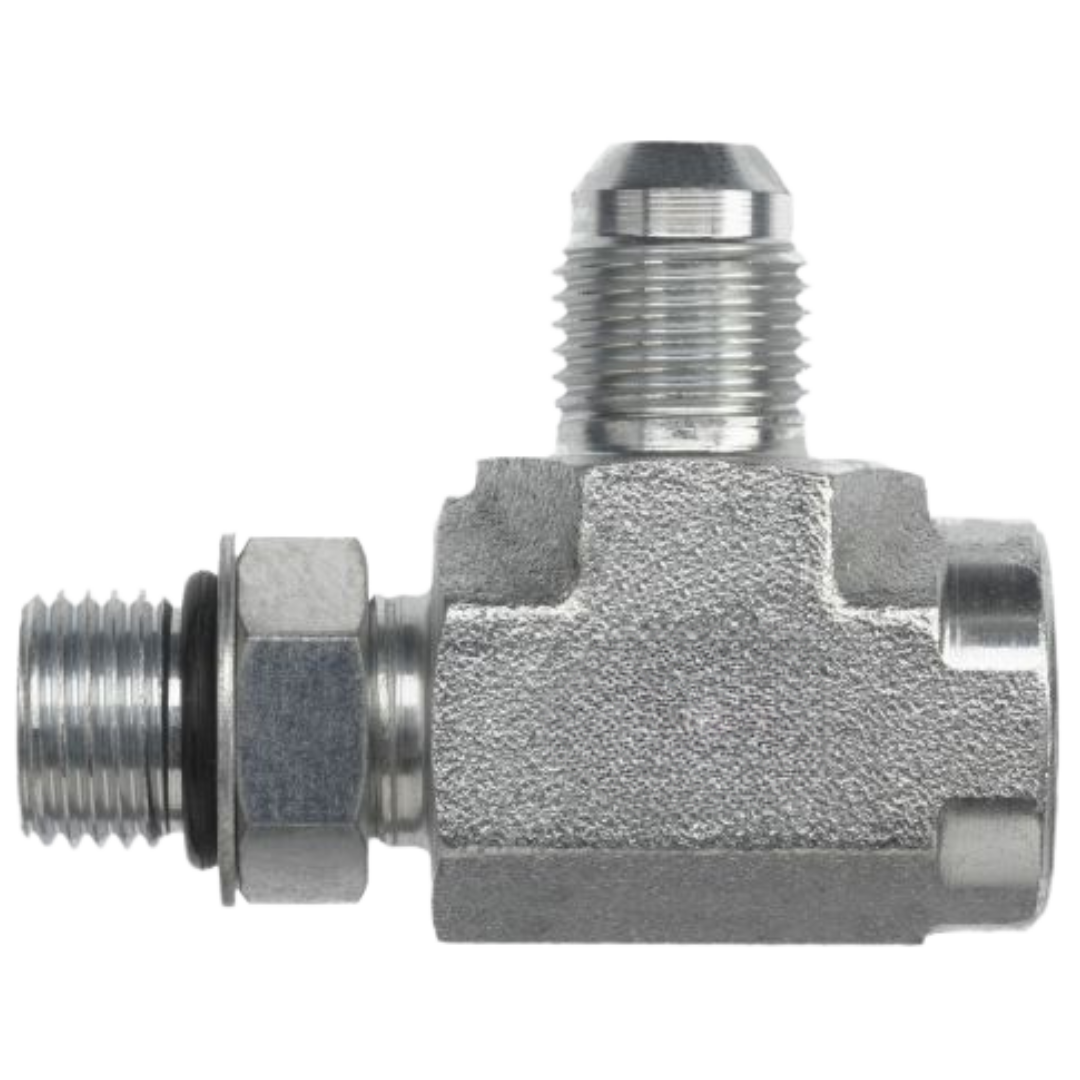

The Series 6820 Tee Female ORB x Male Adjustable ORB x Male JIC adapters are high-quality carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems. These tee adapters feature a three-way design, allowing for the efficient splitting or combining of fluid flow within a system. One end is equipped with a female ORB (O-Ring Boss) connection, which uses a straight thread and an O-ring to create a leak-proof seal, while the other two ends feature male Adjustable ORB and male JIC (Joint Industry Council) connections. The adjustable ORB connection provides flexibility and ensures a tight, reliable seal, while the male JIC connection uses a 37° tapered seat to form a mechanical seal. Made from durable carbon steel, the Series 6820 adapters offer excellent strength, corrosion resistance, and long-lasting performance, making them ideal for high-pressure fluid power systems and industrial applications requiring flexible, reliable, and durable connections.
