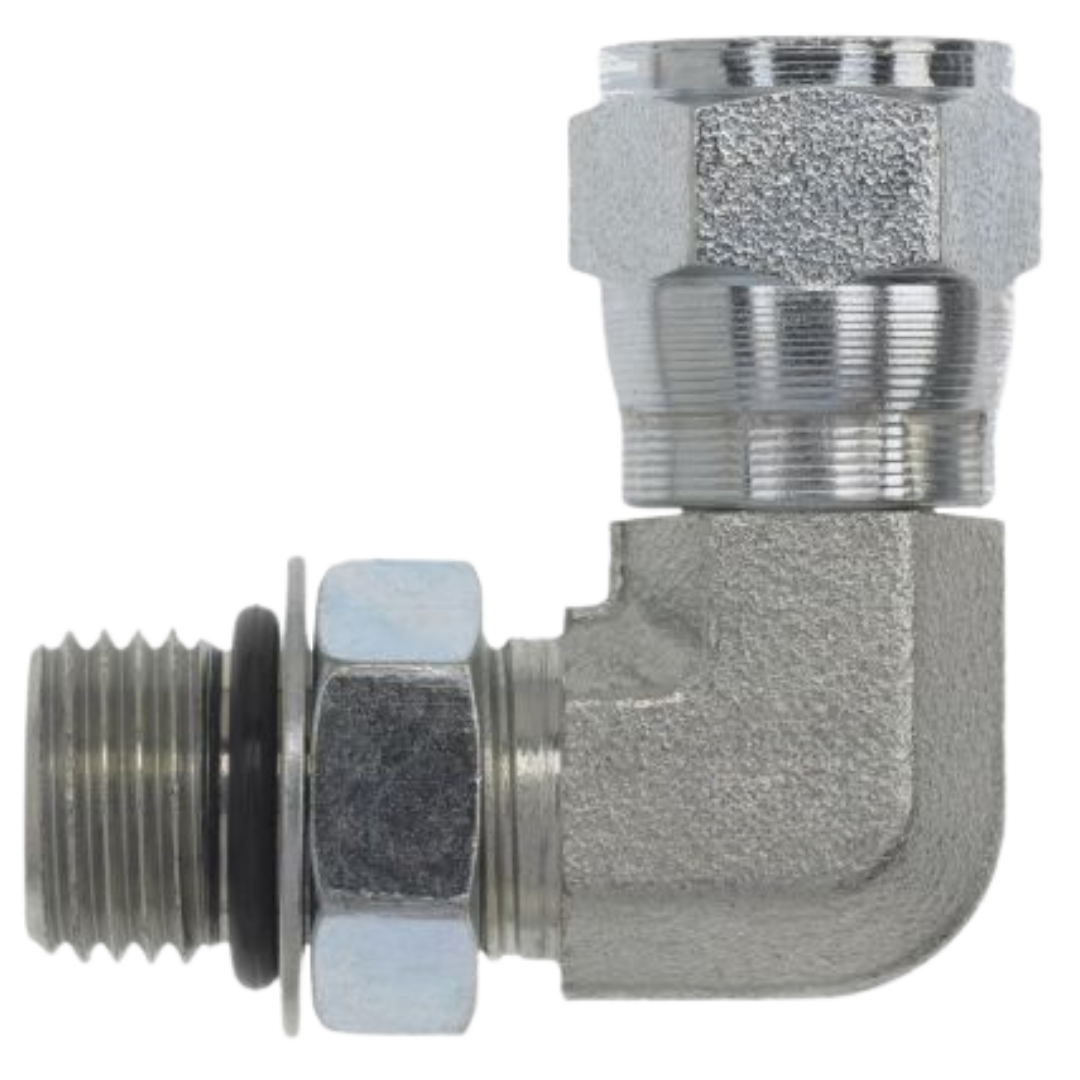

6809-16-16-NWO-SS : OneHydraulics 90-Degree Stainless Adapter, 1-5/16-12 (-16) Male Adjustable ORB x 1-5/16-12 (-16) Female JIC Swivel, 3600psi
6809-16-16-NWO-SS : OneHydraulics 90-Degree Stainless Adapter, 1-5/16-12 (-16) Male Adjustable ORB x 1-5/16-12 (-16) Female JIC Swivel, 3600psi
Roll over image to zoom in Click on image to zoom
6809-16-16-NWO-SS : OneHydraulics 90-Degree Stainless Adapter, 1-5/16-12 (-16) Male Adjustable ORB x 1-5/16-12 (-16) Female JIC Swivel, 3600psi6809-16-16-NWO-SS : OneHydraulics 90-Degree Stainless Adapter, 1-5/16-12 (-16) Male Adjustable ORB x 1-5/16-12 (-16) Female JIC Swivel, 3600psi

6809-16-16-NWO-SS : OneHydraulics 90-Degree Stainless Adapter, 1-5/16-12 (-16) Male Adjustable ORB x 1-5/16-12 (-16) Female JIC Swivel, 3600psi

Save $210.53
OneHydraulicsSKU: 6809-16-16-NWO-SS
1-3 Days
Price:
$196.95 $407.48

Product Details

Usually Ships Within 1-3 Days
Factory Location Houston, Texas or Dallas, Texas or Cleveland, Ohio
Material Stainless Steel
Pressure Rating 3600
Side 1 Gender MALE
Side 1 Size 1-5/16-12 (-16)
Side 1 Type ORB
Side 2 Gender FEMALE
Side 2 Size 1-5/16-12 (-16)
Side 2 Type JIC

Description

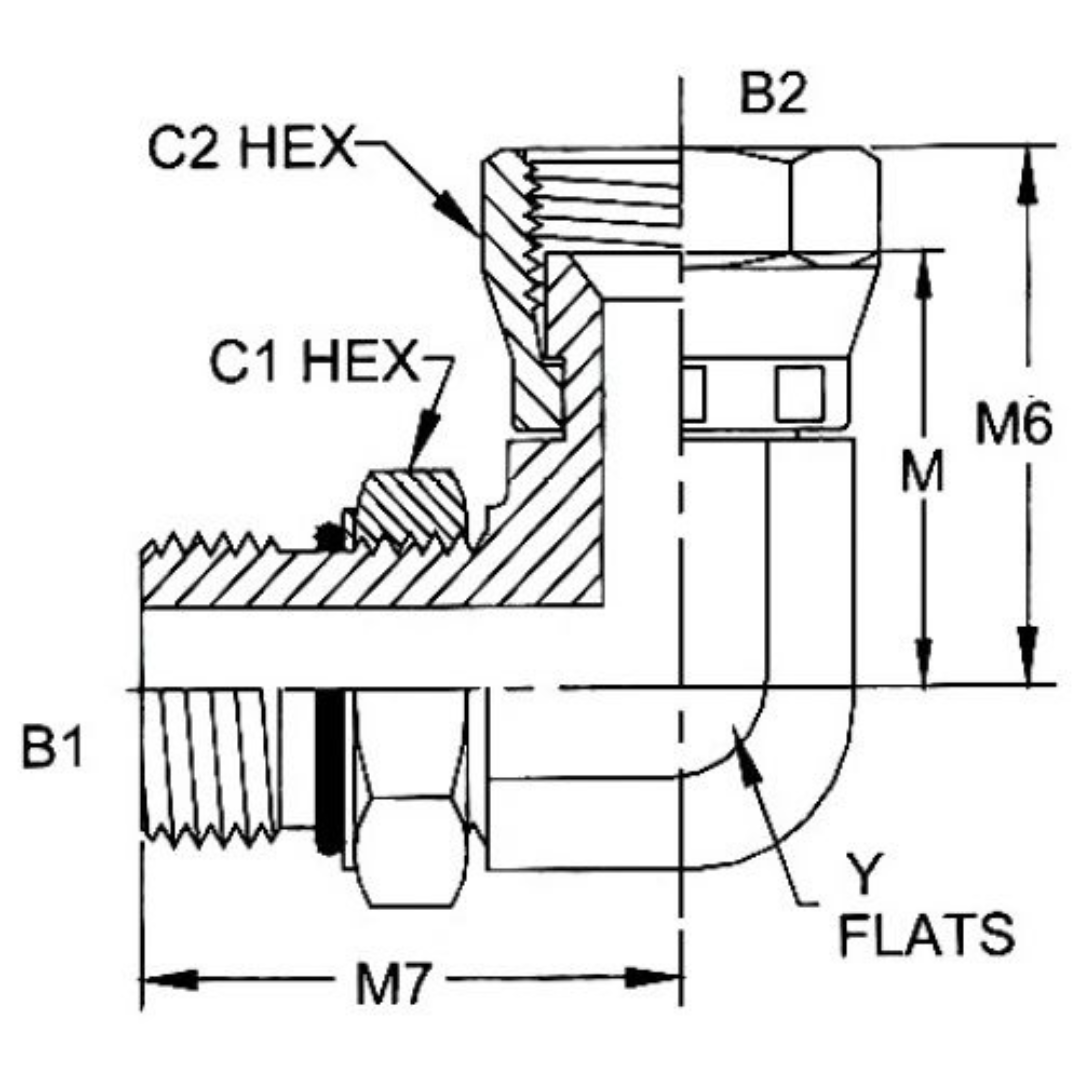

The Series 6809-NWO-SS 90-Degree Angled Male Adjustable ORB x Female JIC Swivel adapters are premium stainless steel fittings designed for secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle, making them ideal for routing hoses and pipes efficiently in tight or confined spaces. One end is equipped with a male Adjustable ORB (O-Ring Boss) connection, which offers an adjustable, leak-tight seal by compressing an O-ring into the port’s chamfer. The other end features a female JIC (Joint Industry Council) 37° flare connection, providing a reliable, mechanical seal. The swivel design allows for flexible installation, making these adapters perfect for systems requiring precise alignment. Made from durable stainless steel, the Series 6809-NWO-SS offers excellent corrosion resistance, strength, and long-lasting performance in high-pressure fluid power applications, making it ideal for industrial environments that demand secure, reliable, and adjustable connections.
