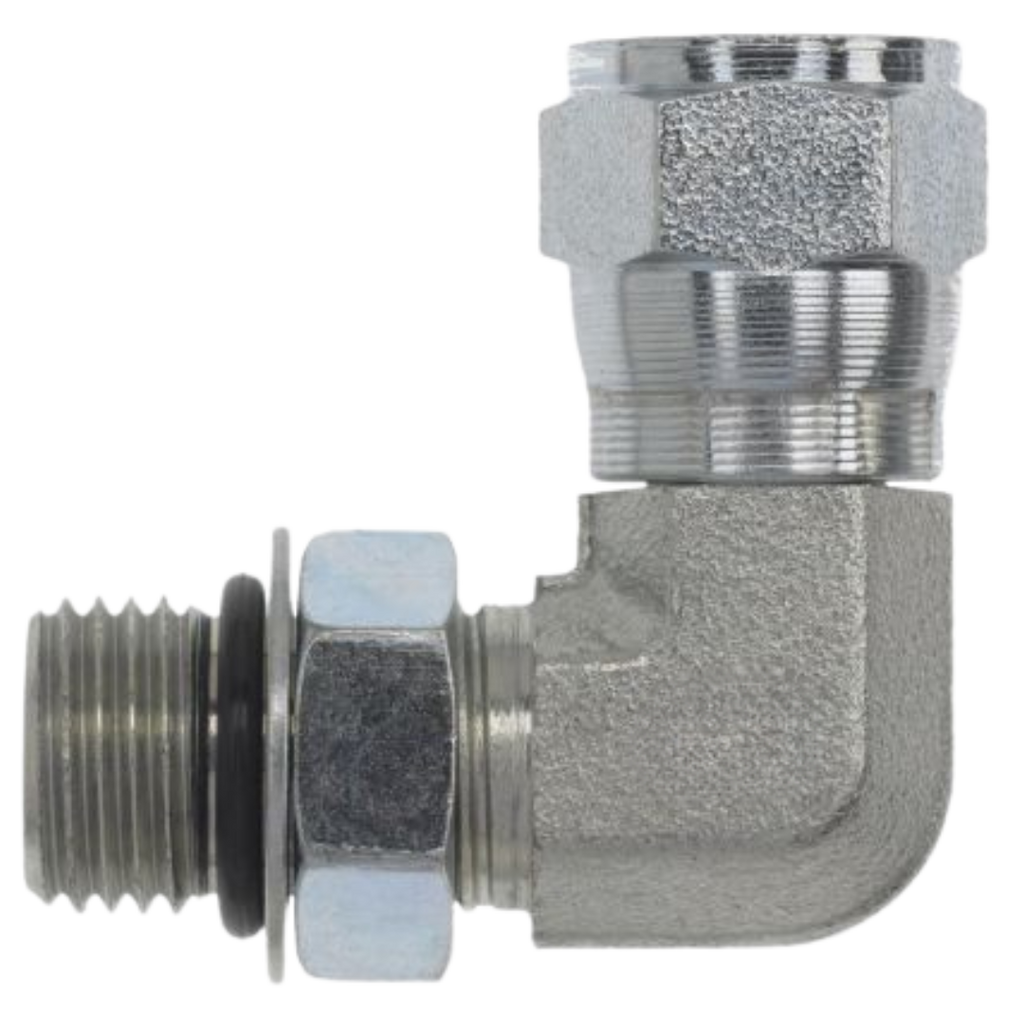

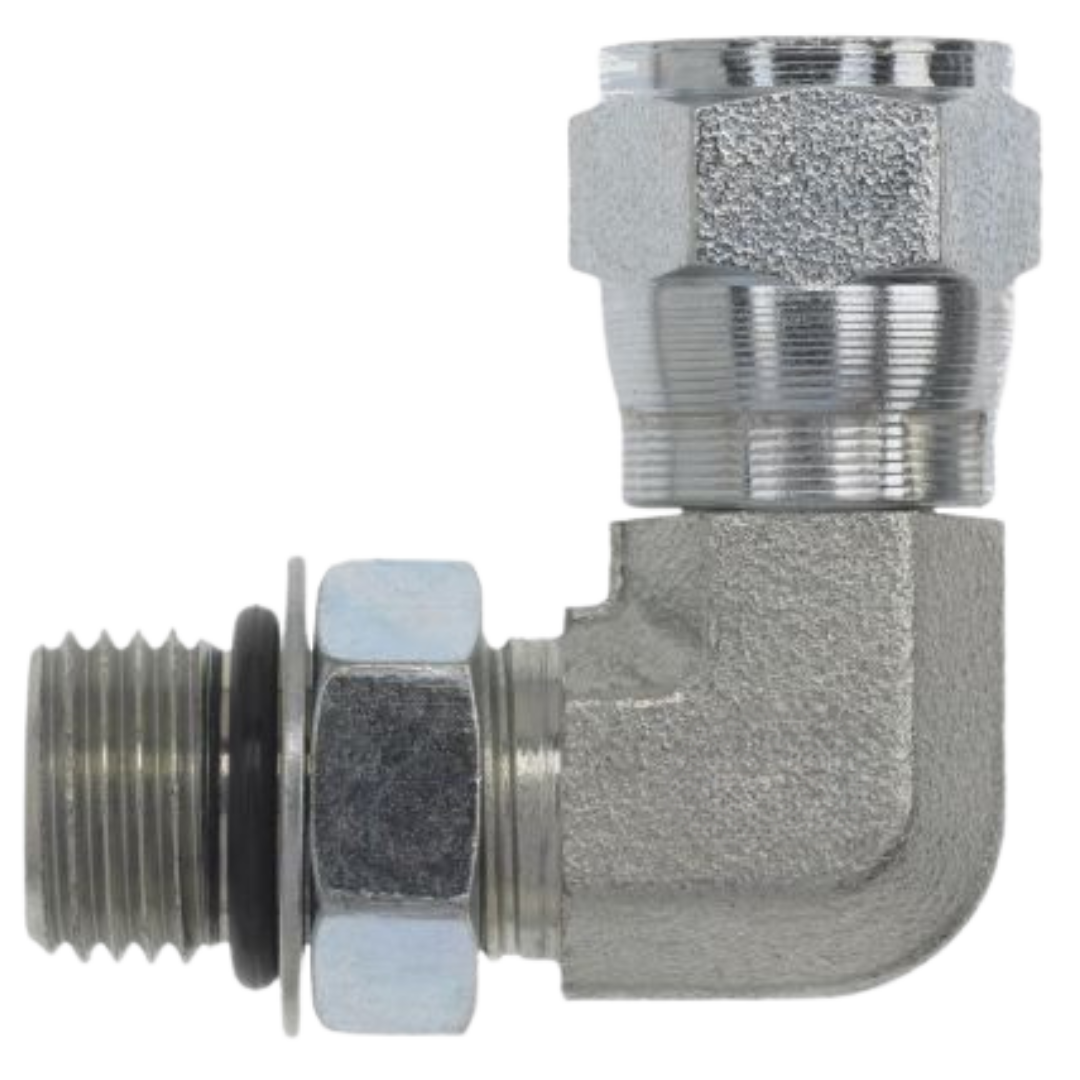

6809-16-16-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 1-5/16-12 (-16) Male Adjustable ORB x 1-5/16-12 (-16) Female JIC Swivel, 3600psi
6809-16-16-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 1-5/16-12 (-16) Male Adjustable ORB x 1-5/16-12 (-16) Female JIC Swivel, 3600psi
Roll over image to zoom in Click on image to zoom
6809-16-16-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 1-5/16-12 (-16) Male Adjustable ORB x 1-5/16-12 (-16) Female JIC Swivel, 3600psi6809-16-16-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 1-5/16-12 (-16) Male Adjustable ORB x 1-5/16-12 (-16) Female JIC Swivel, 3600psi

6809-16-16-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 1-5/16-12 (-16) Male Adjustable ORB x 1-5/16-12 (-16) Female JIC Swivel, 3600psi

Save $24.46
OneHydraulicsSKU: 6809-16-16-NWO-FG
1-3 Days
111
Price:
$20.99 $45.45

Product Details

Usually Ships Within 1-3 Days
Factory Stock 111
Factory Location Houston, Texas or Dallas, Texas or Cleveland, Ohio
Material Steel
Pressure Rating 3600
Side 1 Gender MALE
Side 1 Size 1-5/16-12 (-16)
Side 1 Type ORB
Side 2 Gender FEMALE
Side 2 Size 1-5/16-12 (-16)
Side 2 Type JIC

Description

The Series 6809-NWO 90-Degree Angled Male Adjustable ORB x Female JIC Swivel adapters are high-performance carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems. Featuring a 90-degree angle, these adapters allow for efficient routing of hoses and pipes in tight or confined spaces. One end is equipped with a male Adjustable ORB (O-Ring Boss) connection, which provides an adjustable seal by compressing an O-ring into the port’s chamfer, ensuring a reliable, leak-tight fit. The other end has a female JIC (Joint Industry Council) 37° flare connection, providing a strong, mechanical seal. The swivel feature allows for flexibility during installation, making these adapters ideal for systems requiring precise alignment. Made from durable carbon steel, the Series 6809-NWO offers excellent strength, corrosion resistance, and long-lasting performance in high-pressure fluid power applications, making it perfect for industrial environments that demand secure and adjustable connections.
