Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Pressure Rating | 6000 |
| Side 1 Gender | MALE |
| Side 1 Size | 9/16-18 (-06) |
| Side 1 Type | ORB |
| Side 2 Gender | MALE |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | ORB |
Description

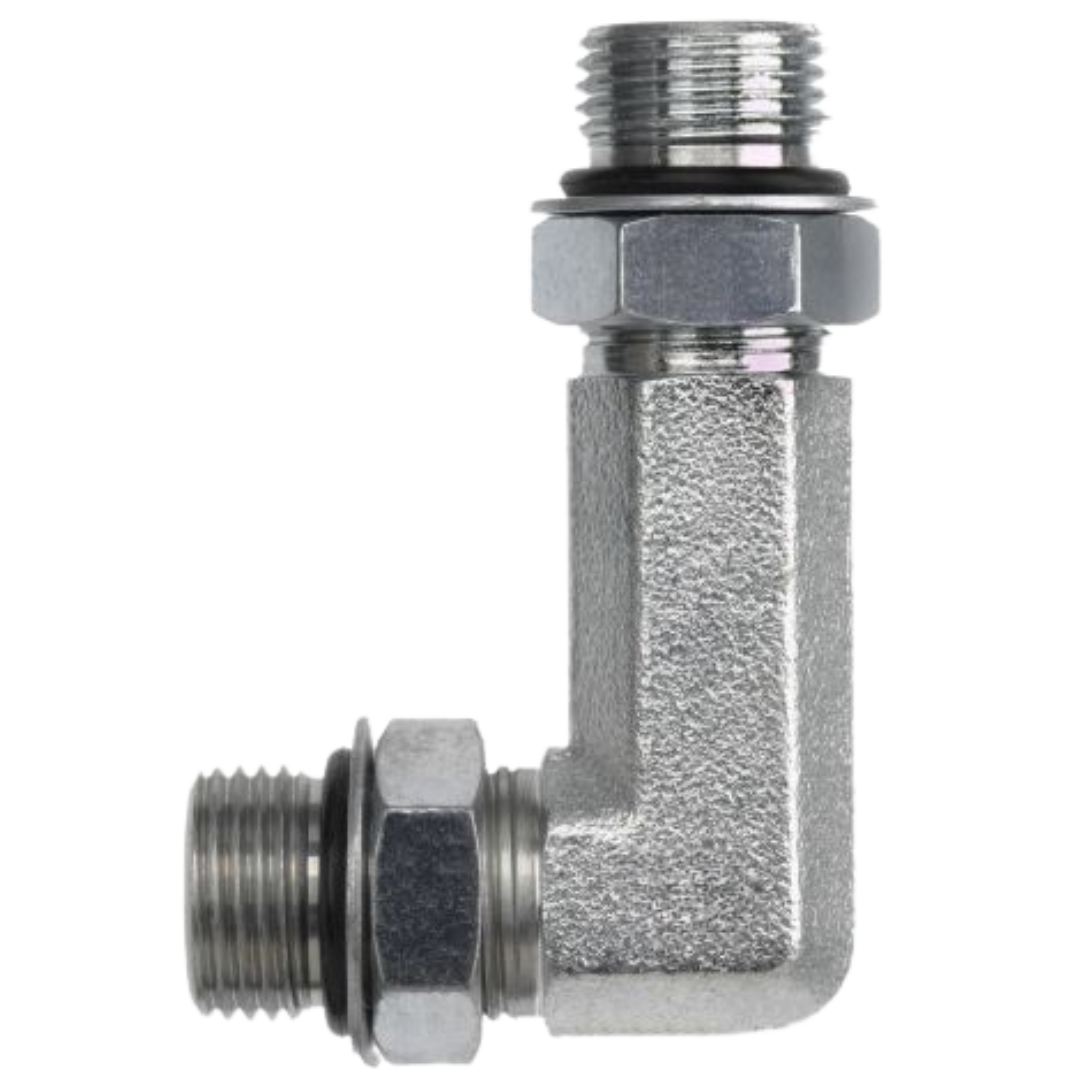

The Series 6807-LL-NWO 90-Degree Angled Extra Long Male Adjustable ORB x Male Adjustable ORB adapters are high-performance carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems that require additional length for proper installation. These adapters feature a 90-degree angle, ideal for efficiently routing hoses and pipes in tight or confined spaces. Both ends are equipped with male Adjustable ORB (O-Ring Boss) connections, ensuring a reliable, leak-tight seal by compressing an O-ring into the port’s chamfer. The "extra long" design provides added flexibility for precise alignment, making them perfect for systems that require extra length. Made from durable carbon steel, the Series 6807-LL-NWO offers excellent strength, corrosion resistance, and long-lasting performance, making it an ideal solution for high-pressure fluid power systems in demanding industrial environments.
