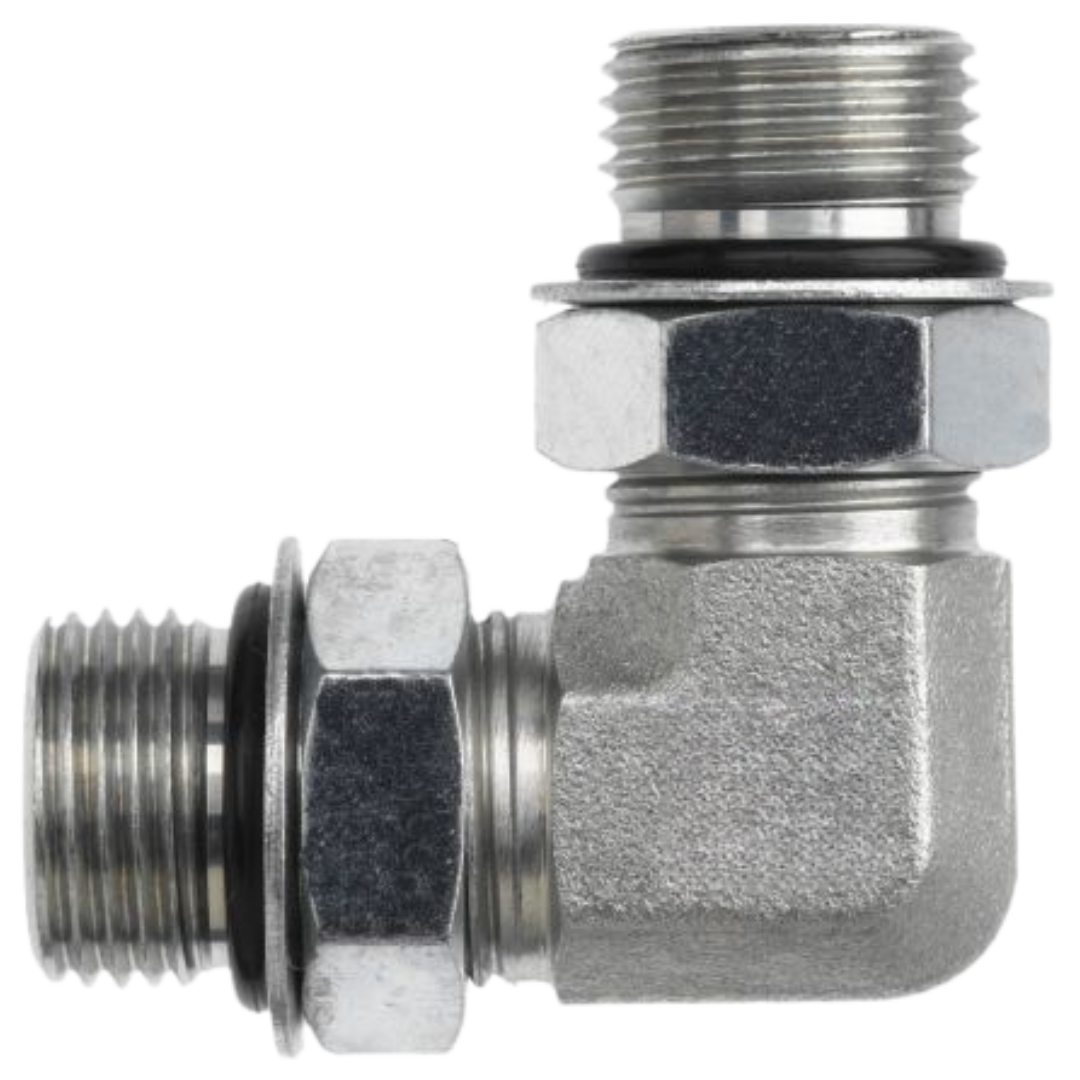

6807-20-20-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male Adjustable ORB
6807-20-20-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male Adjustable ORB
Roll over image to zoom in Click on image to zoom
6807-20-20-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male Adjustable ORB6807-20-20-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male Adjustable ORB

6807-20-20-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 1-5/8-12 (-20) Male Adjustable ORB x 1-5/8-12 (-20) Male Adjustable ORB

Save $52.42
OneHydraulicsSKU: 6807-20-20-NWO-FG
1-3 Days
Price:
$43.99 $96.41

Product Details

Usually Ships Within 1-3 Days
Factory Location Houston, Texas or Dallas, Texas or Cleveland, Ohio
Material Steel
Side 1 Gender MALE
Side 1 Size 1-5/8-12 (-20)
Side 1 Type ORB
Side 2 Gender MALE
Side 2 Size 1-5/8-12 (-20)
Side 2 Type ORB

Description

The Series 6807-NWO 90-Degree Angled Male Adjustable ORB x Male Adjustable ORB adapters are high-quality carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle, making them ideal for routing hoses and pipes efficiently in tight or confined spaces. Both ends are equipped with male Adjustable ORB (O-Ring Boss) connections, which create a reliable, leak-tight seal by compressing an O-ring into the port’s chamfer. This adjustable design allows for precise alignment, ensuring a strong and secure connection. Made from durable carbon steel, the Series 6807-NWO offers excellent strength, corrosion resistance, and long-lasting performance in high-pressure fluid power systems, making it perfect for industrial applications that require flexible and dependable connections.
