Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Factory Stock | 137 |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Pressure Rating | 6000 |
| Side 1 Gender | MALE |
| Side 1 Size | 9/16-18 (-06) |
| Side 1 Type | ORB |
| Side 2 Gender | MALE |
| Side 2 Size | 1/4-18 (-04) |
| Side 2 Type | NPT |
Description

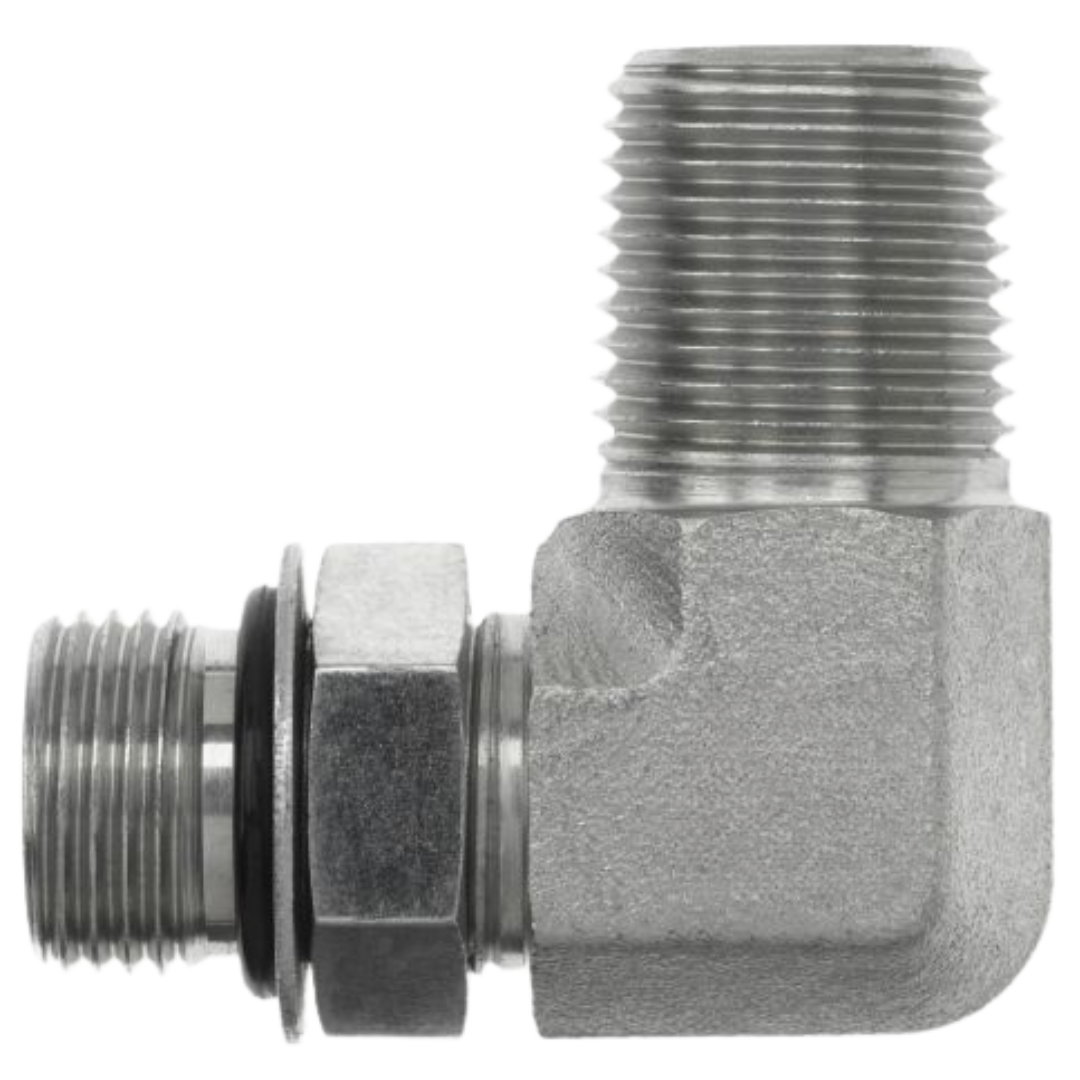

The Series 6806-NWO 90-Degree Angled Male Adjustable ORB x Male NPTF adapters are high-quality carbon steel fittings designed for secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle, making them ideal for routing hoses and pipes in tight or confined spaces. One end is equipped with a male Adjustable ORB (O-Ring Boss) connection, which provides an adjustable seal by trapping an O-ring in the port cavity, while the other end features a male NPTF (National Pipe Tapered Fuel) thread, ensuring a tight, leak-free connection through thread deformation. Made from durable carbon steel, these adapters are perfect for high-pressure fluid power systems, offering exceptional strength, corrosion resistance, and long-lasting performance. The Series 6806-NWO is ideal for applications requiring adjustable and secure connections in industrial environments.
