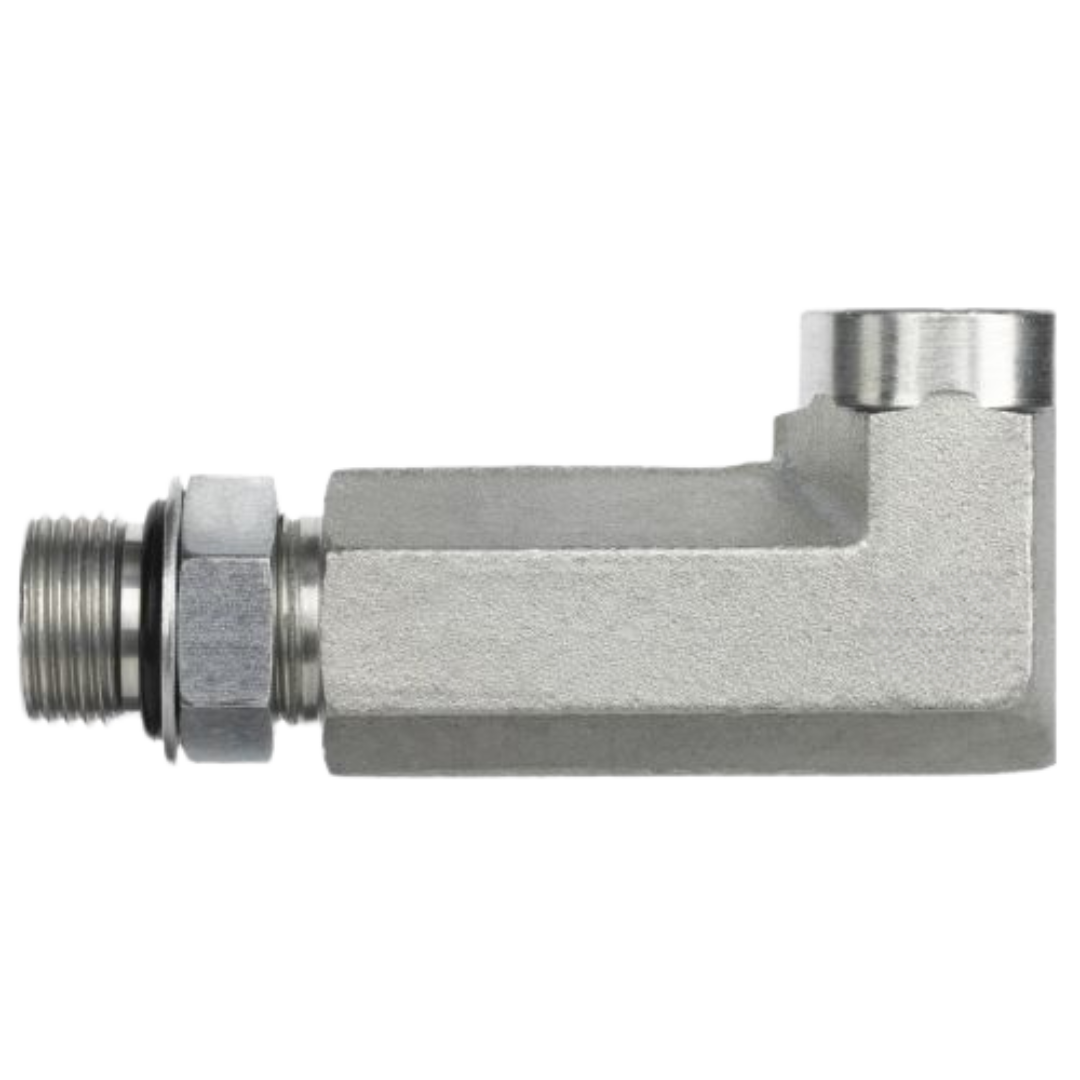

6805-L-10-08-NWO-SS : OneHydraulics 90-Degree Stainless Long Adapter, 7/8-14 (-10) Male Adjustable ORB x 1/2-14 (-08) Female NPT, 5400psi
6805-L-10-08-NWO-SS : OneHydraulics 90-Degree Stainless Long Adapter, 7/8-14 (-10) Male Adjustable ORB x 1/2-14 (-08) Female NPT, 5400psi
Roll over image to zoom in Click on image to zoom
6805-L-10-08-NWO-SS : OneHydraulics 90-Degree Stainless Long Adapter, 7/8-14 (-10) Male Adjustable ORB x 1/2-14 (-08) Female NPT, 5400psi6805-L-10-08-NWO-SS : OneHydraulics 90-Degree Stainless Long Adapter, 7/8-14 (-10) Male Adjustable ORB x 1/2-14 (-08) Female NPT, 5400psi

6805-L-10-08-NWO-SS : OneHydraulics 90-Degree Stainless Long Adapter, 7/8-14 (-10) Male Adjustable ORB x 1/2-14 (-08) Female NPT, 5400psi

Save $276.50
OneHydraulicsSKU: 6805-L-10-08-NWO-SS
1-3 Days
Price:
$258.67 $535.17

Product Details

Usually Ships Within 1-3 Days
Factory Location Houston, Texas or Dallas, Texas or Cleveland, Ohio
Material Stainless Steel
Pressure Rating 5400
Side 1 Gender MALE
Side 1 Size 7/8-14 (-10)
Side 1 Type ORB
Side 2 Gender FEMALE
Side 2 Size 1/2-14 (-08)
Side 2 Type NPT

Description

The Series 6805-L-NWO-SS 90-Degree Angled Long Male Adjustable ORB x Female NPT adapters are high-quality stainless steel fittings designed to provide secure, leak-free connections in hydraulic systems that require extra length for proper installation. These adapters feature a 90-degree angle, making them perfect for routing hoses and pipes in tight or confined spaces. One end is equipped with a male Adjustable ORB (O-Ring Boss) connection, which ensures a reliable, adjustable seal by compressing an O-ring into the port's chamfer for a leak-tight fit. The other end has a female NPT (National Pipe Tapered) thread, ensuring a secure, metal-to-metal connection through thread deformation. The "long" design provides added flexibility, making these adapters ideal for systems that need extra length for alignment. Made from durable stainless steel, the Series 6805-L-NWO-SS offers excellent corrosion resistance, strength, and long-lasting performance, making it the ideal choice for high-pressure fluid power systems in demanding industrial applications.
